Ubiquiti UVC-G6-Pro-Turret-B G6 Pro Turret 4K Camera
Overview

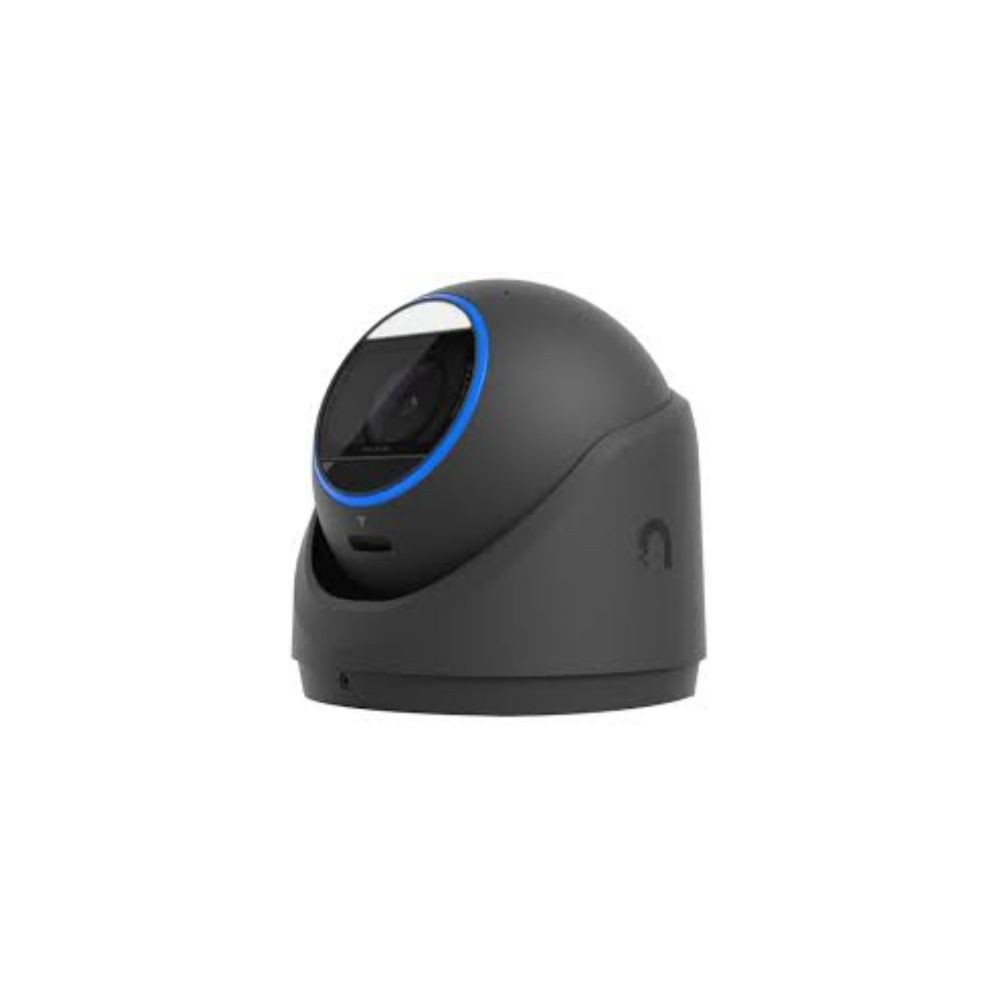

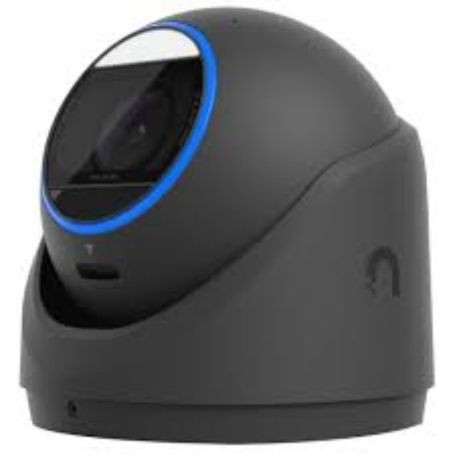

The Ubiquiti UVC-G6-Pro-Turret-B is a black G6 Pro Turret security camera designed for outdoor and indoor surveillance deployments. It combines 4K video, an 8MP 1/1.2-inch image sensor, 2.36x optical zoom, intelligent video analytics, and adaptive IR illumination.
The camera provides a Gigabit Ethernet connection with PoE+ power and supports two-way audio. Its IP66 weatherproof enclosure and IK04 tamper resistance make it suitable for exposed installations where environmental and physical protection are required.
Video and Imaging
The camera uses a 1/1.2-inch 8MP sensor and records at 3840 x 2160 resolution with a maximum frame rate of 30 FPS. The lens has a focal length of 5.85–13.8 mm and an aperture range of f/1.5–f/2.9.
The optical system provides 2.36x optical zoom. The wide field of view is 113.8° horizontal, 61.9° vertical, and 134° diagonal, while the telephoto field of view is 45.5° horizontal, 25.8° vertical, and 52° diagonal.
AI and Detection
The UVC-G6-Pro-Turret-B includes a Multi-TOPS AI engine and supports smart detections for people, vehicles, and animals. Ubiquiti also specifies face recognition and license plate recognition capabilities.
Night Vision
Built-in adaptive IR LED illumination and an IR cut filter provide night-mode operation. The camera offers IR night vision coverage up to 40 m (131 ft), supporting surveillance in low-light and nighttime conditions.
Networking and Power
Network connectivity is provided through a Gigabit Ethernet RJ45 port. The camera uses PoE+ and supports an input voltage range of 42.5–57V DC. Maximum power consumption is 15W.
Audio and Storage
The camera supports two-way audio and includes a MicroSD card expansion slot. A factory-reset button is also provided.
Installation and Protection
The UVC-G6-Pro-Turret-B supports ceiling and wall mounting, with the wall mount included. Optional installation configurations include arm, pendant, and junction box mounting.
The enclosure has an IP66 weatherproof rating and IK04 tamper resistance. The camera is designed to operate from -30°C to 50°C (-22°F to 122°F) with 0–90% noncondensing humidity.
Key Features
- 4K 8MP imaging with a large 1/1.2-inch sensor
- 2.36x optical zoom with wide and telephoto viewing modes
- Multi-TOPS AI engine with people, vehicle, and animal detection
- Face recognition and license plate recognition
- 40 m IR night vision with adaptive IR illumination
Applications
- Outdoor commercial security monitoring
- Building perimeter surveillance
- Parking and vehicle monitoring
- Retail and business security
- UniFi Protect surveillance deployments requiring optical zoom and AI recognition
DC Supplies Product Note
The UVC-G6-Pro-Turret-B supports PoE+ with a maximum power consumption of 15W, so the connected network switch or PoE source should provide suitable PoE+ power for the installation.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UVC-G6-Pro-Turret-B |
| Product Type | G6 Pro Turret Camera |
| Color | Black |
| Resolution | 4K |
| Image Sensor | 1/1.2-inch 8MP |
| Maximum Resolution | 3840 x 2160 |
| Maximum Frame Rate | 30 FPS |
| Lens | 5.85–13.8 mm |
| Aperture | f/1.5–f/2.9 |
| Optical Zoom | 2.36x |
| Wide Field of View | H: 113.8°, V: 61.9°, D: 134° |
| Tele Field of View | H: 45.5°, V: 25.8°, D: 52° |
| IR Night Vision | 40 m (131 ft) |
| Night Mode | Adaptive IR LED illumination and IR cut filter |
| AI Engine | Multi-TOPS |
| Smart Detections | People, vehicles, animals |
| Face Recognition | Yes |
| License Plate Recognition | Yes |
| Audio | Two-way audio |
| Networking Interface | GbE RJ45 port |
| Power Method | PoE+ |
| Supported Voltage Range | 42.5–57V DC |
| Maximum Power Consumption | 15W |
| Storage Expansion | MicroSD card |
| Weatherproofing | IP66 |
| Tamper Resistance | IK04 |
| Mounting | Ceiling, wall mount included; arm, pendant, and junction box optional |
| Operating Temperature | -30°C to 50°C (-22°F to 122°F) |
| Operating Humidity | 0–90% noncondensing |
| Dimensions | Ø117.2 x 116.5 mm (Ø4.61 x 4.59 in) |
| Weight | 1.2 kg (2.6 lb) |
| Enclosure Material | Aluminum alloy, polycarbonate |
| Processor | Quad-core Arm Cortex-A53 based chip |
| Certifications | CE, FCC, IC |
| NDAA Compliant | Yes |
FAQs
What is the Ubiquiti UVC-G6-Pro-Turret-B?
It is a black G6 Pro Turret 4K security camera with a large 1/1.2-inch sensor, 2.36x optical zoom, AI detection, and IR night vision.
What resolution does the UVC-G6-Pro-Turret-B support?
The camera supports 8MP 3840 x 2160 4K video at up to 30 FPS.
Does the UVC-G6-Pro-Turret-B support optical zoom?
Yes. The camera provides 2.36x optical zoom with wide and telephoto viewing fields.
What AI features are supported?
The camera supports smart detections for people, vehicles, and animals, as well as face recognition and license plate recognition.
How far can the camera see with IR night vision?
Ubiquiti specifies IR night vision coverage of up to 40 m (131 ft).
How is the UVC-G6-Pro-Turret-B powered?
The camera uses PoE+ over its Gigabit Ethernet connection and has a maximum power consumption of 15W.
