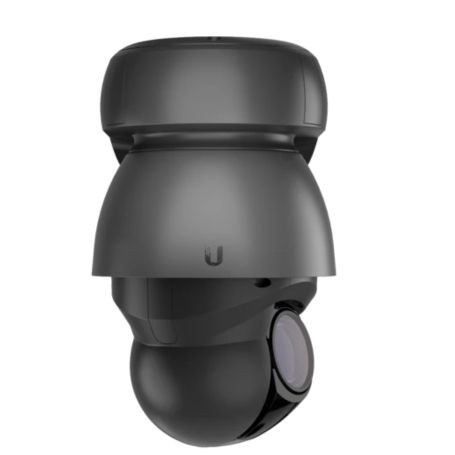

Ubiquiti UVC-G4-PTZ G4 PTZ Industrial 4K Camera
Overview
The Ubiquiti UVC-G4-PTZ is an industrial-grade PTZ camera designed for long-range video surveillance applications. It combines a Sony 4K 8MP 1/1.8-inch CMOS sensor with a 22x optical zoom lens, motorized pan and tilt control, and adaptive IR LED illumination for low-light monitoring.
The camera records video at up to 3840 x 2160 resolution and is managed through UniFi Protect. Its IP66-rated enclosure and wide operating temperature range support outdoor deployments where environmental protection is required.
Optics and PTZ
The UVC-G4-PTZ uses a Sony 4K 8MP 1/1.8-inch CMOS sensor paired with a 22x optical zoom lens. The optical system provides a horizontal viewing angle from 3° to 64° and a vertical viewing angle from 2° to 37°.
Built-in IR LED illumination and an IR cut filter provide dedicated night-mode operation for low-light and nighttime surveillance.
Video Performance
The camera supports 4K video at 3840 x 2160 resolution with a maximum frame rate of 24 FPS. Video compression uses H.264, providing compatibility with the UniFi Protect surveillance platform.
Networking and Power
Network connectivity is provided through a single Gigabit Ethernet RJ45 interface. The camera uses PoE++ for power and supports an input voltage range of 42.5–57V.
Maximum power consumption is 42.9W, making an appropriate PoE++ power source necessary for operation.
Weather Protection and Installation
The UVC-G4-PTZ has an IP66 weatherproof rating and is designed for outdoor installation. The camera operates from -40°C to 50°C (-40°F to 122°F) with 0–90% noncondensing operating humidity.
Wall mounting is supported, and the wall mount kit is included with the camera according to Ubiquiti's product documentation.
Key Features
- 4K video with an 8MP 1/1.8-inch Sony CMOS sensor
- 22x optical zoom for long-range surveillance
- Adaptive IR LED night vision
- Gigabit Ethernet connectivity with PoE++ power
- IP66-rated enclosure for outdoor deployment
Applications
- Long-range outdoor video surveillance
- Industrial and commercial security monitoring
- Large-area surveillance requiring optical zoom
- Outdoor sites requiring PTZ camera control
- UniFi Protect-based surveillance systems
DC Supplies Product Note
The UVC-G4-PTZ requires PoE++ and can consume up to 42.9W, so the network infrastructure should provide sufficient PoE++ power for the camera before installation.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UVC-G4-PTZ |
| Product Type | G4 PTZ Industrial Camera |
| Resolution | 4K, 3840 x 2160 |
| Sensor | Sony 4K 8MP 1/1.8-inch CMOS |
| Lens | 22x optical zoom |
| Horizontal View Angle | 3° to 64° |
| Vertical View Angle | 2° to 37° |
| Maximum Frame Rate | 24 FPS |
| Video Compression | H.264 |
| Night Mode | Built-in IR LED illumination and IR cut filter |
| Networking Interface | 1 x Gigabit Ethernet RJ45 |
| Power Method | PoE++ |
| Supported Voltage Range | 42.5–57V |
| Maximum Power Consumption | 42.9W |
| Weatherproofing | IP66 |
| Mounting | Wall mount |
| Operating Temperature | -40°C to 50°C (-40°F to 122°F) |
| Operating Humidity | 0–90% noncondensing |
| Dimensions | 207 x 223.7 x 341.3 mm (8.15 x 8.81 x 13.44 in) |
| Weight Without Mount | 3.8 kg (8.38 lb) |
| Weight With Mount | 6.8 kg (14.99 lb) |
| Enclosure Materials | Metal, plastic |
| Mount Material | Metal |
| Processor | Ambarella S5L66 |
| Button | Factory reset |
| Software | UniFi Protect |
| Mobile Applications | UniFi Protect for iOS and Android |
| Certifications | FCC, IC, CE |
FAQs
What is the Ubiquiti UVC-G4-PTZ?
The UVC-G4-PTZ is an industrial-grade 4K PTZ surveillance camera with 22x optical zoom and adaptive IR night vision.
What resolution does the UVC-G4-PTZ support?
The camera supports 3840 x 2160 4K video at up to 24 FPS.
What type of zoom does the UVC-G4-PTZ have?
The camera features a 22x optical zoom lens, allowing detailed monitoring of distant subjects without relying solely on digital enlargement.
How is the UVC-G4-PTZ powered?
The camera uses PoE++ and supports a voltage range of 42.5–57V, with maximum power consumption of 42.9W.
Is the UVC-G4-PTZ suitable for outdoor use?
Yes. The camera has an IP66 weatherproof rating and an operating temperature range of -40°C to 50°C.
Which software manages the UVC-G4-PTZ?
The UVC-G4-PTZ is managed through UniFi Protect, with UniFi Protect mobile applications available for iOS and Android.
