Ubiquiti UVC-G6-180-B G6 180 16MP 180° PoE+ AI Camera
Overview

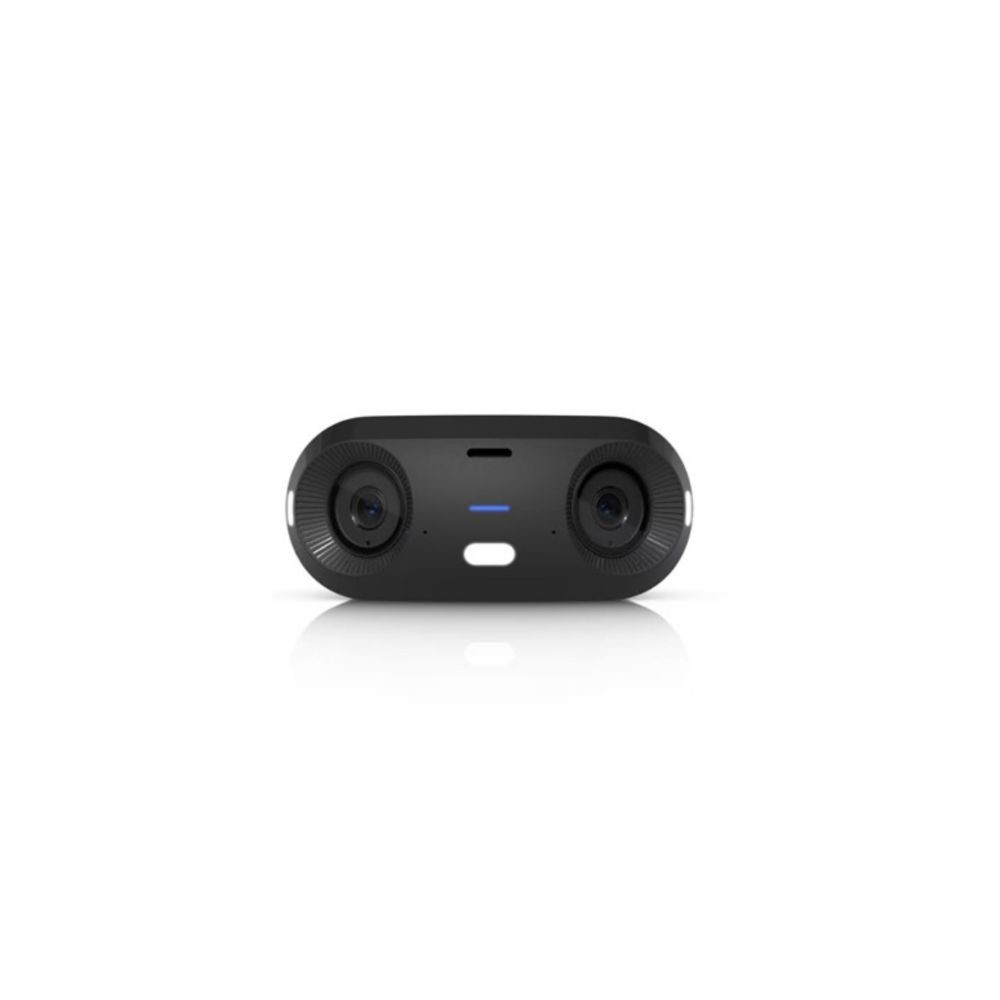

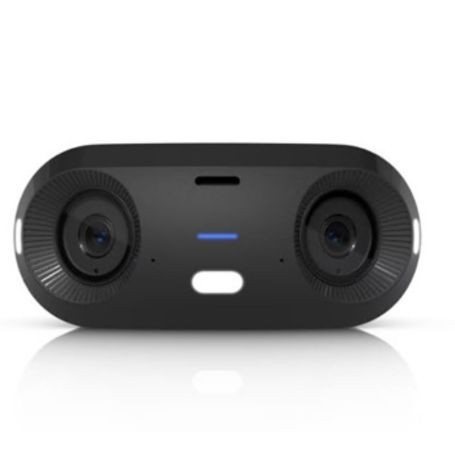

The Ubiquiti UVC-G6-180-B G6 180 is an indoor/outdoor panoramic security camera with dual 8MP sensors, 16MP total resolution, and a 180° horizontal field of view. The black variant is identified by the exact manufacturer part number UVC-G6-180-B.
The camera combines two fixed-focal-length sensors to produce a 7680 × 2160 panoramic image at up to 20 FPS. It is designed for UniFi Protect deployments and includes AI-powered smart detections, face recognition, and license plate recognition.
Panoramic Imaging
The G6 180 uses two 1/1.8-inch 8MP sensors and provides a 180° horizontal and 56.7° vertical field of view. Its combined 16MP output has a 3.5:1 aspect ratio, making the camera suitable for wide horizontal scenes where a single panoramic view is required.
Night Vision and AI Detection
Built-in IR LED illumination provides night vision up to 20 m (65 ft), while an integrated IR cut filter supports day and night operation. UniFi Protect smart detections include people, vehicles, and animals. Face recognition and license plate recognition are also supported.
Connectivity and Power
The UVC-G6-180-B provides a 10/100 MbE RJ45 network interface and uses PoE+ for power. Ubiquiti specifies a supported voltage range of 37–57V DC and maximum power consumption of 15W.
Audio and Local Storage
The camera supports two-way audio and includes a MicroSD card expansion slot for supported on-camera storage functionality. The networking and camera management experience is designed around the UniFi Protect platform.
Outdoor Protection and Mounting
The camera has an IP66 weatherproofing rating and IK04 tamper resistance. Its operating temperature range is -20 to 50°C (-4 to 122°F), with 0–90% noncondensing operating humidity.
The standard mount is included with the UVC-G6-180-B. Optional mounting accessories include a flush mount, pendant mount, arm mount, dual mount, junction box, and gang box mounting plate.
Key Features
- Dual 1/1.8-inch 8MP sensors delivering 16MP panoramic video
- 180° horizontal field of view with 56.7° vertical field of view
- 20 m (65 ft) IR night vision with built-in IR illumination
- AI smart detections for people, vehicles, and animals with face and license plate recognition
- PoE+ connectivity with IP66 weatherproofing and IK04 tamper resistance
Applications
The UVC-G6-180-B is designed for locations where a broad horizontal view is more useful than a conventional narrow-angle camera. Its panoramic coverage can be used for monitoring large interior or exterior areas, entrances, open spaces, corridors, and other scenes where reducing blind spots across the horizontal field is important.
DC Supplies Product Note
The camera's 180° horizontal field of view is produced by its dual-sensor design and 3.5:1 panoramic image format. Installation should therefore account for the camera's intended orientation and the shape of the area being monitored rather than treating it like a conventional 16:9 single-sensor camera.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UVC-G6-180-B |
| Product Type | Panoramic security camera |
| Series | UniFi G6 |
| Model | G6 180 |
| Color | Black |
| Sensor | Dual 1/1.8-inch 8MP |
| Total Resolution | 16MP |
| Video Resolution | 7680 × 2160 |
| Aspect Ratio | 3.5:1 |
| Maximum Frame Rate | 20 FPS |
| Horizontal Field of View | 180° |
| Vertical Field of View | 56.7° |
| Lens | 2 × fixed focal length |
| IR Night Vision Range | 20 m (65 ft) |
| Night Mode | Built-in IR LED illumination and IR cut filter |
| Smart Detections | People, vehicles, animals |
| Face Recognition | Supported |
| License Plate Recognition | Supported |
| Audio | Two-way audio |
| Networking Interface | 10/100 MbE RJ45 port |
| Power Method | PoE+ |
| Supported Voltage Range | 37–57V DC |
| Maximum Power Consumption | 15W |
| Expansion Slot | MicroSD card |
| Weatherproofing | IP66 |
| Tamper Resistance | IK04 |
| Mounting | Ceiling, pole, wedge mount, pan adapter |
| Included Mount | Standard mount |
| Optional Mounting Accessories | Flush mount, pendant mount, arm mount, dual mount, junction box, gang box mounting plate |
| Dimensions | 136 × 64 × 92 mm (5.6 × 2.5 × 3.6 in) |
| Weight | 839 g (1.8 lb) |
| Enclosure Material | Aluminum alloy, polycarbonate |
| Mount Material | Polycarbonate, stainless steel |
| Processor | Quad-core Arm Cortex-A53 based chip |
| Operating Temperature | -20 to 50°C (-4 to 122°F) |
| Operating Humidity | 0–90% noncondensing |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC |
| Software Platform | UniFi Protect |
Frequently Asked Questions
What is the field of view of the UVC-G6-180-B?
The camera provides a 180° horizontal field of view and a 56.7° vertical field of view.
What resolution does the G6 180 support?
The dual-sensor camera provides 16MP panoramic video at 7680 × 2160 resolution with a maximum frame rate of 20 FPS.
Does the UVC-G6-180-B support night vision?
Yes. The camera has built-in IR LED illumination and an IR cut filter, with an IR night vision range of up to 20 m (65 ft).
Does the camera support AI detections?
Yes. UniFi Protect supports smart detections for people, vehicles, and animals. Face recognition and license plate recognition are also supported.
Can the UVC-G6-180-B be installed outdoors?
Yes. The camera has an IP66 weatherproofing rating and an operating temperature range of -20 to 50°C (-4 to 122°F).
Does the UVC-G6-180-B support PoE+?
Yes. The camera uses PoE+ and supports an input voltage range of 37–57V DC.
