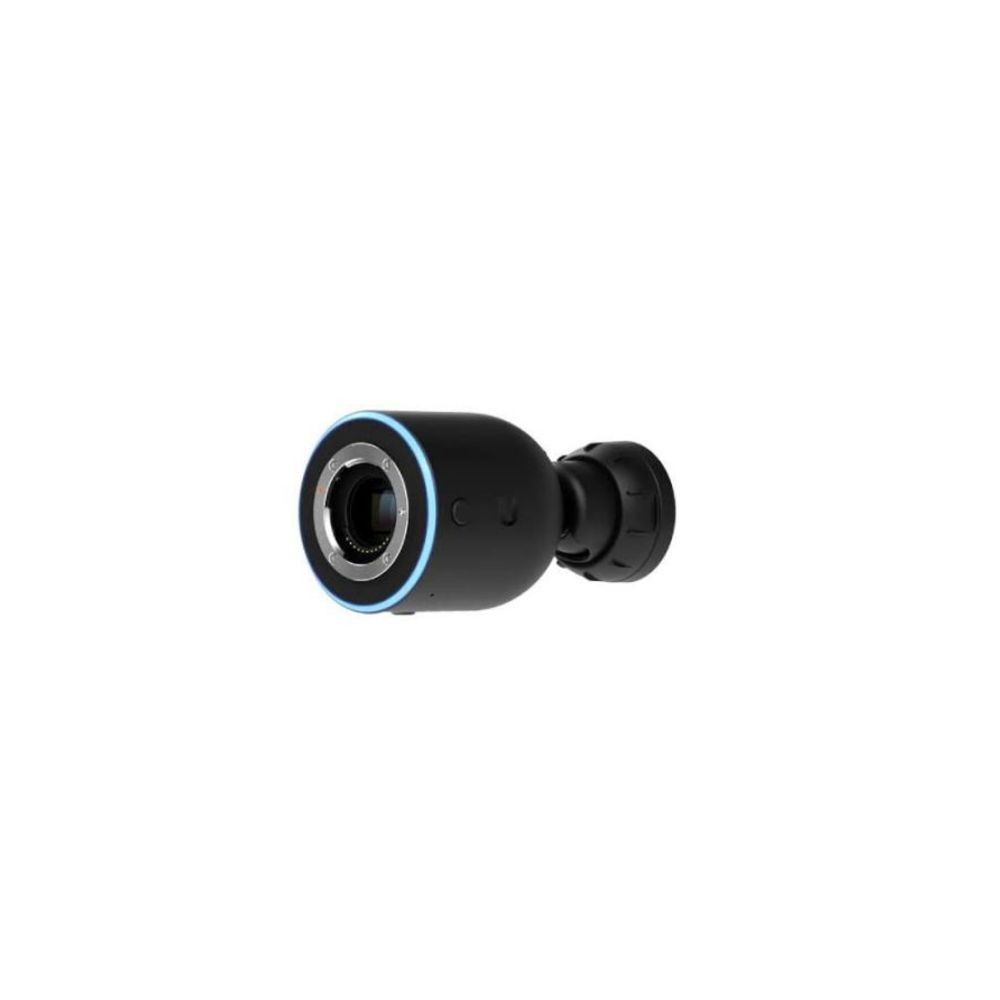

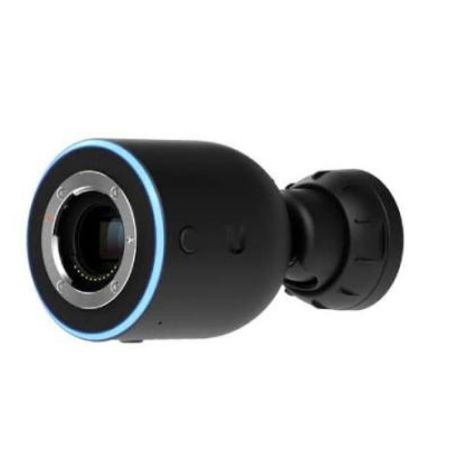

Ubiquiti UVC-AI-DSLR – AI DSLR 4K PoE Camera with Wide-Angle Lens
Overview
The Ubiquiti UVC-AI-DSLR is a UniFi AI DSLR security camera designed for high-quality 4K video surveillance with enhanced image performance and AI-powered recognition. The camera uses a 4/3-inch 10MP CMOS sensor and the M. Zuiko Digital ED 17 mm f/1.2 PRO wide-angle lens.
The camera supports face recognition, license plate recognition, and smart detections for people, vehicles, and animals. It also provides two-way audio and connects to the network through a Gigabit Ethernet RJ45 interface with PoE+ power.
Technical Information
The UVC-AI-DSLR records at up to 3840 × 2160 resolution with a maximum frame rate of 30 FPS. Its wide-angle lens provides a 52° horizontal, 39° vertical, and 65° diagonal field of view.
Image controls include color, brightness, sharpness, contrast, white balance, exposure control, 2D noise reduction, 3D noise reduction, motion-based noise reduction, masking, and text overlay. Video compression uses H.264.
AI Capabilities
The camera supports AI-powered face recognition, license plate recognition, and smart detections for people, vehicles, and animals. These capabilities are integrated into the camera's surveillance functionality and can be used with UniFi Protect.
Audio and Connectivity
The UVC-AI-DSLR includes a microphone and speaker for two-way audio. The microphone can be disabled through software. The camera provides one Gigabit Ethernet RJ45 port and uses PoE+ for power.
When the outdoor case is attached, the audio function is automatically disabled. The camera is managed through UniFi Protect and supported UniFi OS applications and mobile applications.
Installation and Weatherproofing
The camera supports wall and pole mounting, with the pole mount included. A tripod mount is available as an optional mounting method. With the outdoor case installed, the camera has an IPX5 weatherproofing rating.
The standard camera dimensions are 80 × 89 mm in diameter and length without the mount, while the included mount configuration measures 80 × 153 mm. The camera operates from -20 to 40°C and supports 10 to 90% noncondensing humidity.
Applications
- Indoor 4K video surveillance
- Outdoor surveillance when fitted with the optional outdoor case
- Wide-angle monitoring applications
- Face and license plate recognition
- People, vehicle, and animal detection
Key Features
- 4K video at up to 30 FPS using a 4/3-inch 10MP CMOS sensor
- M. Zuiko Digital ED 17 mm f/1.2 PRO wide-angle lens
- Face recognition, license plate recognition, and smart detections
- Two-way audio with integrated microphone and speaker
- PoE+ power with Gigabit Ethernet connectivity
DC Supplies Product Note
The UVC-AI-DSLR has a maximum power consumption of 17.77W with the lens working and requires PoE+ power. For outdoor deployment, the outdoor case is required for the specified IPX5 weatherproofing. Note that attaching the outdoor case automatically disables the camera's audio function.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UVC-AI-DSLR |
| Product Type | AI DSLR Security Camera |
| Series | UniFi AI DSLR |
| Resolution | 4K, 3840 × 2160 |
| Maximum Frame Rate | 30 FPS |
| Image Sensor | 4/3-inch 10MP CMOS |
| Lens | M. Zuiko Digital ED 17 mm f/1.2 PRO |
| Horizontal Field of View | 52° |
| Vertical Field of View | 39° |
| Diagonal Field of View | 65° |
| Video Compression | H.264 |
| AI Recognition | Face recognition, license plate recognition |
| Smart Detections | People, vehicles, animals |
| Audio | Two-way audio |
| Networking Interface | 1 × GbE RJ45 |
| Power Method | PoE+ |
| Maximum Power Consumption | 17.77W with lens working |
| Supported Voltage Range | 37–57V DC |
| Weatherproofing | IPX5 with outdoor case |
| Mounting | Wall, pole mount included; tripod mount optional |
| Dimensions Without Mount | 80 × 89 mm (3.1 × 3.5 in) |
| Dimensions With Mount | 80 × 153 mm (3.1 × 6 in) |
| Weight Without Mount | 660 g (1.5 lb) |
| Weight With Mount | 820 g (1.8 lb) |
| Enclosure Material | Aluminum alloy |
| Operating Temperature | -20 to 40°C (-4 to 104°F) |
| Operating Humidity | 10–90% noncondensing |
| Processor | Quad-core Arm Cortex-A53 based chip |
| Certifications | CE, FCC, IC |
| NDAA Compliant | Yes |
FAQs
What resolution does the UVC-AI-DSLR support?
The camera supports 4K video at 3840 × 2160 resolution with a maximum frame rate of 30 FPS.
What lens is included with the UVC-AI-DSLR?
The UVC-AI-DSLR uses the M. Zuiko Digital ED 17 mm f/1.2 PRO wide-angle lens, providing a 52° horizontal field of view.
What AI detections does the camera support?
The camera supports face recognition, license plate recognition, and smart detections for people, vehicles, and animals.
Can the UVC-AI-DSLR be used outdoors?
Yes. The camera can be deployed outdoors when fitted with the outdoor case. With the outdoor case installed, the camera has an IPX5 weatherproofing rating.
Does the camera support two-way audio?
Yes. The camera has an integrated microphone and speaker for two-way audio. The audio function is automatically disabled when the outdoor case is attached.
How is the UVC-AI-DSLR powered?
The camera uses PoE+ power and has a maximum power consumption of 17.77W when the lens is working.
