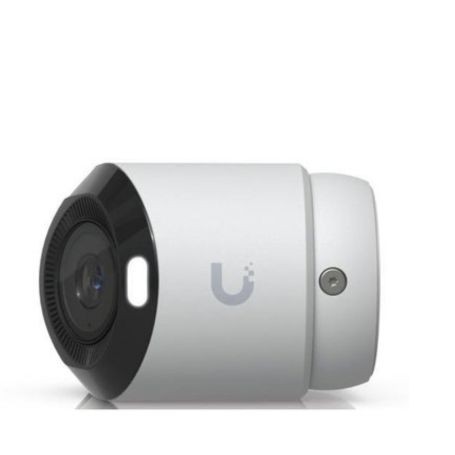

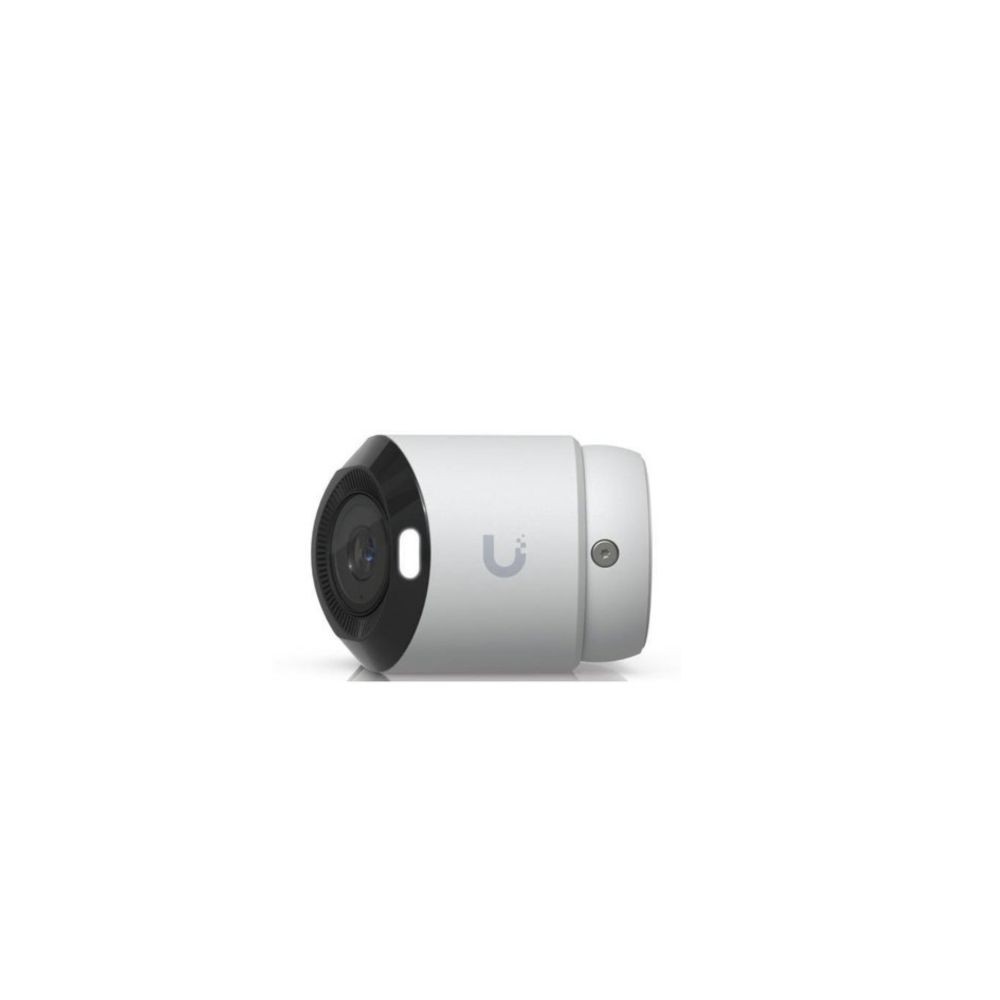

Ubiquiti UVC-G6-180-W – G6 180 16MP 180° Panoramic PoE+ Camera
Overview
The Ubiquiti UVC-G6-180-W is a white G6 180 panoramic security camera designed for indoor and outdoor video surveillance. It combines two 8MP image sensors to provide a 16MP 7680 × 2160 video image with a 180° horizontal field of view.
The camera uses a Multi-TOPS AI Engine for AI-powered detections and supports face recognition, license plate recognition, and smart detections for people, vehicles, and animals. It also provides two-way audio and integrated IR illumination for nighttime monitoring.
Technical Information
The G6 180 uses dual 1/1.8-inch 8MP sensors with two fixed focal-length lenses. It supports a maximum frame rate of 20 FPS and provides a 180° horizontal and 56.7° vertical field of view.
Built-in IR illumination provides night vision up to 20 m (65 ft). The camera includes a 10/100 MbE RJ45 network interface and operates using PoE+ power.
AI and Video Capabilities
The Multi-TOPS AI Engine enables smart video analysis directly within the camera. Supported recognition capabilities include face recognition, license plate recognition, and smart detections for people, vehicles, and animals.
Image controls include brightness, sharpness, contrast, white balance, exposure control, 2D noise reduction, 3D noise reduction, motion-based noise reduction, masking, text overlay, and HDR.
Connectivity and Storage
The UVC-G6-180-W connects to the network through a 10/100 MbE RJ45 port and receives power through PoE+. A MicroSD card slot provides local storage expansion for supported UniFi Protect configurations.
The camera also includes a factory-reset button and supports two-way audio.
Installation and Protection
The camera is rated IP66 for weatherproofing and IK04 for tamper resistance. It supports ceiling, pole and wedge mounting, while a pan adapter is included. Additional mounting options include a camera junction box, arm mount, dual mount, and gang box mounting plate.
The operating temperature range is -20 to 50°C (-4 to 122°F), with operating humidity specified from 0 to 90% noncondensing.
Applications
- Wide-area indoor video surveillance
- Outdoor perimeter and site monitoring
- Entrances and areas requiring panoramic 180° coverage
- People, vehicle and animal detection
- Face and license plate recognition applications
Key Features
- Dual-sensor 16MP camera with 180° panoramic horizontal coverage
- Multi-TOPS AI Engine with face, license plate and smart detections
- 20 m (65 ft) IR night vision
- IP66 weatherproofing and IK04 tamper resistance
- PoE+ networking with two-way audio and MicroSD storage expansion
DC Supplies Product Note
The UVC-G6-180-W uses PoE+ and has a maximum power consumption of 15W. When planning an installation, verify that the selected PoE switch or injector provides suitable PoE+ power and that the mounting arrangement provides the required panoramic field of view.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UVC-G6-180-W |
| Product Type | Panoramic Security Camera |
| Series | G6 180 |
| Color | White |
| Video Resolution | 16MP, 7680 × 2160 |
| Image Sensors | Dual 1/1.8-inch 8MP |
| Lens | 2 × fixed focal length |
| Horizontal Field of View | 180° |
| Vertical Field of View | 56.7° |
| Maximum Frame Rate | 20 FPS |
| Night Vision | 20 m (65 ft) |
| Networking Interface | 10/100 MbE RJ45 |
| Power Method | PoE+ |
| Maximum Power Consumption | 15W |
| Supported Voltage Range | 37–57V DC |
| Audio | Two-way audio |
| Storage Expansion | MicroSD card |
| Smart Detections | People, vehicles, animals |
| AI Recognition | Face recognition, license plate recognition |
| Weatherproofing | IP66 |
| Tamper Resistance | IK04 |
| Mounting | Ceiling, pole, wedge mount; pan adapter included |
| Dimensions | 136 × 64 × 92 mm (5.6 × 2.5 × 3.6 in) |
| Weight | 839 g (1.8 lb) |
| Operating Temperature | -20 to 50°C (-4 to 122°F) |
| Operating Humidity | 0–90% noncondensing |
| Enclosure Material | Aluminum alloy, polycarbonate |
| Mount Material | Polycarbonate, stainless steel |
| Certifications | CE, FCC, IC |
| NDAA Compliant | Yes |
FAQs
What is the resolution of the UVC-G6-180-W?
The camera provides a 16MP resolution of 7680 × 2160 using dual 1/1.8-inch 8MP image sensors.
What is the camera's field of view?
The G6 180 provides a 180° horizontal field of view and a 56.7° vertical field of view.
Does the camera support night vision?
Yes. The camera has built-in IR illumination with a specified night-vision distance of up to 20 m (65 ft).
What AI detections are supported?
The camera supports face recognition, license plate recognition, and smart detections for people, vehicles, and animals.
Can the camera be installed outdoors?
Yes. The camera is specified for indoor and outdoor use and has IP66 weatherproofing and IK04 tamper resistance.
How is the UVC-G6-180-W powered?
The camera uses PoE+ and has a maximum power consumption of 15W.
