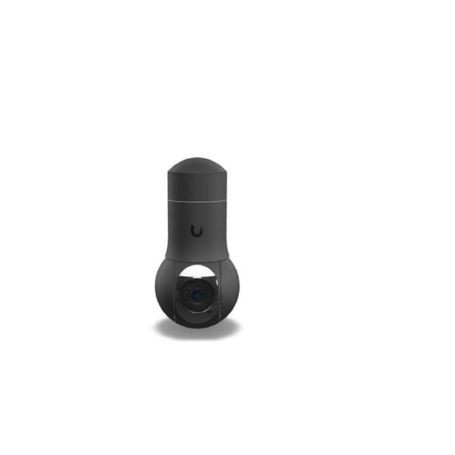

Ubiquiti UVC-G5-PTZ-B – G5 PTZ 2K PoE+ Security Camera
Overview
The Ubiquiti UVC-G5-PTZ-B is a G5 PTZ security camera designed for flexible surveillance with pan-tilt-zoom control, 2K video resolution, 2x optical zoom, and PoE+ connectivity. This compact Ubiquiti PTZ camera combines wide and telephoto viewing options with integrated IR and white LED illumination for day and night monitoring.
Key Features
- 2K video resolution with 4MP 2688 x 1512 output
- 2x optical zoom with 350° pan and 100° tilt range
- 20 m (65 ft) IR night vision with built-in white LED illumination
- PoE+ powered with 10/100 MbE RJ45 Ethernet connectivity
- IP66 weatherproofing with IK04 tamper resistance
2K PTZ Security Camera Performance
The UVC-G5-PTZ-B delivers 4MP video at 2688 x 1512 resolution with a maximum frame rate of 30 FPS. Its 5MP 1/2.7-inch CMOS sensor and 3.42–6.85 mm lens provide wide and telephoto fields of view for adaptable surveillance coverage.
Pan-Tilt-Zoom and Optical Zoom
This Ubiquiti G5 PTZ camera provides a 350° pan range and 100° tilt range. The 2x optical zoom mode provides a telephoto field of view of 45.5° horizontal, 25.4° vertical, and 52.4° diagonal, while the wide view provides 99.7° horizontal, 51.9° vertical, and 121° diagonal coverage.
Night Vision and Smart Detection
The UVC-G5-PTZ-B provides up to 20 m (65 ft) of IR night vision and includes built-in IR and white LED illumination with an IR cut filter. The camera also supports smart detections for people, vehicles, and animals.
Outdoor and Network Installation
With IP66 weatherproofing and IK04 tamper resistance, the UVC-G5-PTZ-B is designed for indoor or outdoor surveillance installations. It uses a 10/100 MbE RJ45 Ethernet port and PoE+ power, with a supported voltage range of 37–57V DC and maximum power consumption of 14W.
Mounting Options
The UVC-G5-PTZ-B supports wall and pole mounting, with the standard mounting hardware included. Optional installation accessories include conduit, surface, in-ceiling, pendant, and corner mounts. The supported pole diameter is 1.5–2 inches (38–50 mm).
DC Supplies Product Note
The Ubiquiti UVC-G5-PTZ-B is suited to UniFi surveillance deployments where remotely adjustable pan, tilt, and optical zoom are required. Its PoE+ connectivity allows power and network connectivity through the Ethernet connection, while IP66 protection supports outdoor installation requirements.
Specifications
| Brand | Ubiquiti |
|---|
| Part Number / MPN | UVC-G5-PTZ-B |
|---|
| Product Type | PTZ Security Camera |
|---|
| Model | G5 PTZ |
|---|
| Video Resolution | 4MP, 2688 x 1512 (16:9) |
|---|
| Resolution Class | 2K |
|---|
| Image Sensor | 5MP 1/2.7" CMOS |
|---|
| Optical Zoom | 2x |
|---|
| Pan Range | 350° |
|---|
| Tilt Range | 100° |
|---|
| IR Night Vision | 20 m (65 ft) |
|---|
| Field of View | Wide: H 99.7°, V 51.9°, D 121°; Tele: H 45.5°, V 25.4°, D 52.4° |
|---|
| Smart Detections | People, Vehicles, Animals |
|---|
| Networking Interface | 10/100 MbE RJ45 port |
|---|
| Power Method | PoE+ |
|---|
| Supported Voltage Range | 37–57V DC |
|---|
| Maximum Power Consumption | 14W |
|---|
| Weatherproofing | IP66 |
|---|
| Tamper Resistance | IK04 |
|---|
| Audio | Microphone |
|---|
| Maximum Frame Rate | 30 FPS |
|---|
| Operating Temperature | -30 to 45°C (-22 to 113°F) |
|---|
| Dimensions Without Mount | Ø90 x 152.5 mm (Ø3.5 x 6 in) |
|---|
| Weight Without Mount | 580 g (1.3 lb) |
|---|
| Enclosure Material | Aluminum alloy, polycarbonate |
|---|
| NDAA Compliant | Yes |
|---|
FAQs
What is the Ubiquiti UVC-G5-PTZ-B?
The UVC-G5-PTZ-B is the Ubiquiti G5 PTZ security camera with 2K resolution, 2x optical zoom, pan-tilt control, and PoE+ connectivity.
What resolution does the UVC-G5-PTZ-B support?
The camera provides 4MP video at 2688 x 1512 resolution in a 16:9 aspect ratio, classified by Ubiquiti as 2K resolution.
Does the UVC-G5-PTZ-B support optical zoom?
Yes. The UVC-G5-PTZ-B provides 2x optical zoom with wide and telephoto viewing modes.
How far can the UVC-G5-PTZ-B see at night?
The UVC-G5-PTZ-B provides IR night vision up to 20 m (65 ft).
Is the UVC-G5-PTZ-B suitable for outdoor installation?
Yes. The camera has IP66 weatherproofing and IK04 tamper resistance and supports outdoor mounting configurations.
How is the UVC-G5-PTZ-B powered?
The UVC-G5-PTZ-B uses PoE+ for power and network connectivity through its 10/100 MbE RJ45 Ethernet port.
