Detailed Specifications

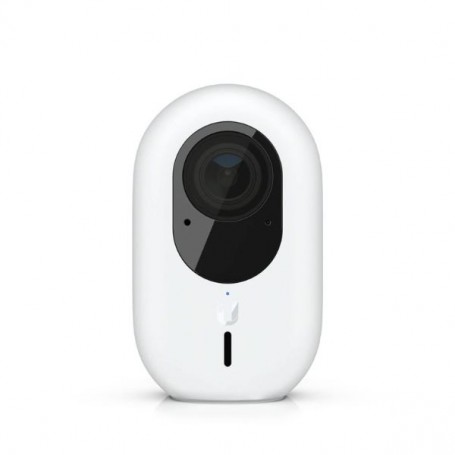

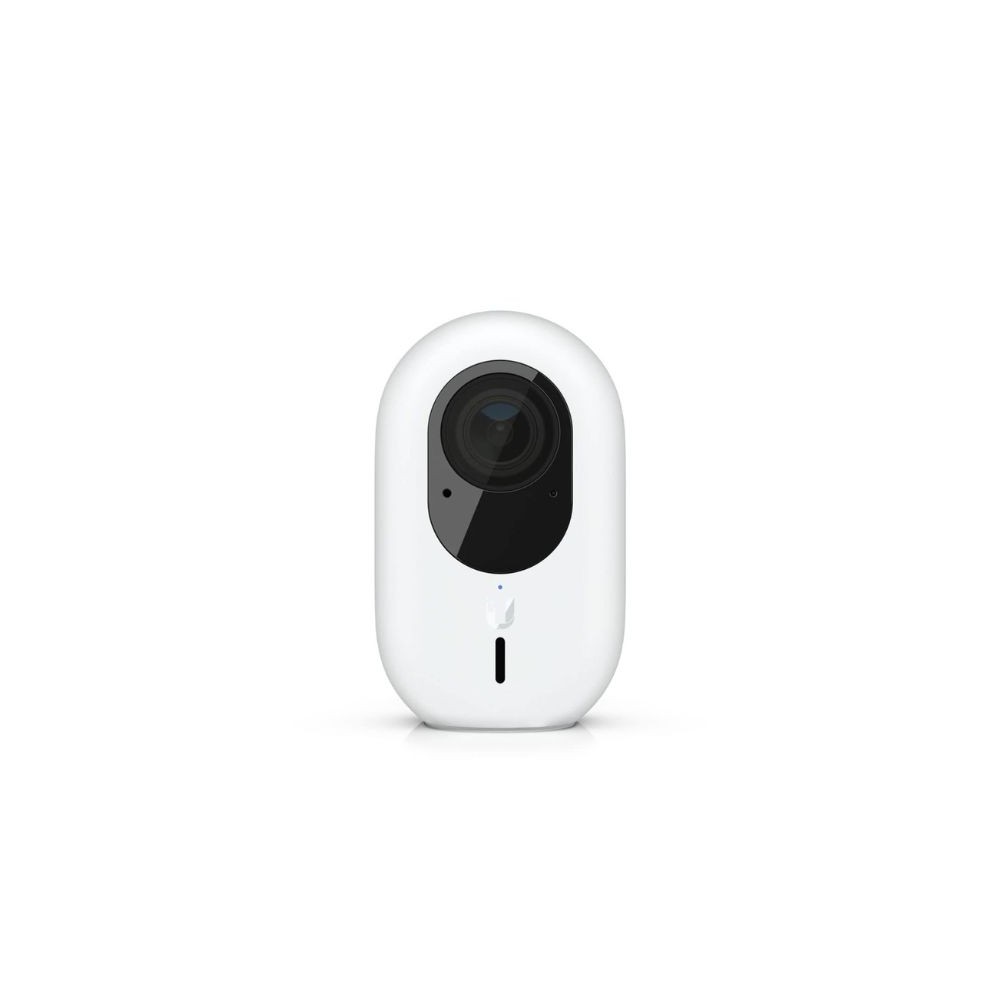

Ubiquiti UVC-G4-INS-US G4 Instant Wi-Fi Camera
Overview
The Ubiquiti UVC-G4-INS-US is a compact Wi-Fi security camera for indoor or outdoor monitoring in small offices, residential spaces, or edge locations. It captures 2K (2688×1512) video at 30 fps with a 120° diagonal field of view and built-in IR for low-light conditions. Powered via 5 V USB, it connects over dual-band Wi-Fi and integrates with UniFi Protect for centralized monitoring. Deployment is simple, and management can be handled through the UniFi Protect platform alongside other Ubiquiti devices.
Key Features
2688×1512 (2K) video at 30 fps
Wide-angle 120.6° diagonal lens
Two-way audio (microphone and speaker)
Built-in IR night illumination
Technical Specifications
| Specification | Value |
|---|
| Brand | Ubiquiti |
| Part Number | UVC-G4-INS-US |
| Product Type | Wi-Fi Security Camera |
| Sensor | 5 MP CMOS |
| Resolution | 2688×1512 (16:9) |
| Lens | 2.8 mm fixed, f/1.6 |
| Field of View | H: 102.4°, V: 54.9°, D: 120.6° |
| Max Frame Rate | 30 fps |
| Networking | 802.11 a/b/g/n/ac Wi-Fi, Bluetooth |
| Power | 5 V DC, 2 A USB adapter (included) |
| Max Power Consumption | 6 W |
| Weather Resistance | IPX5, IK04 |
| Operating Temperature | −20°C to 40°C |
| Weight (With Mount) | 163 g |
| Dimensions | 81.6×50×47.2 mm |
