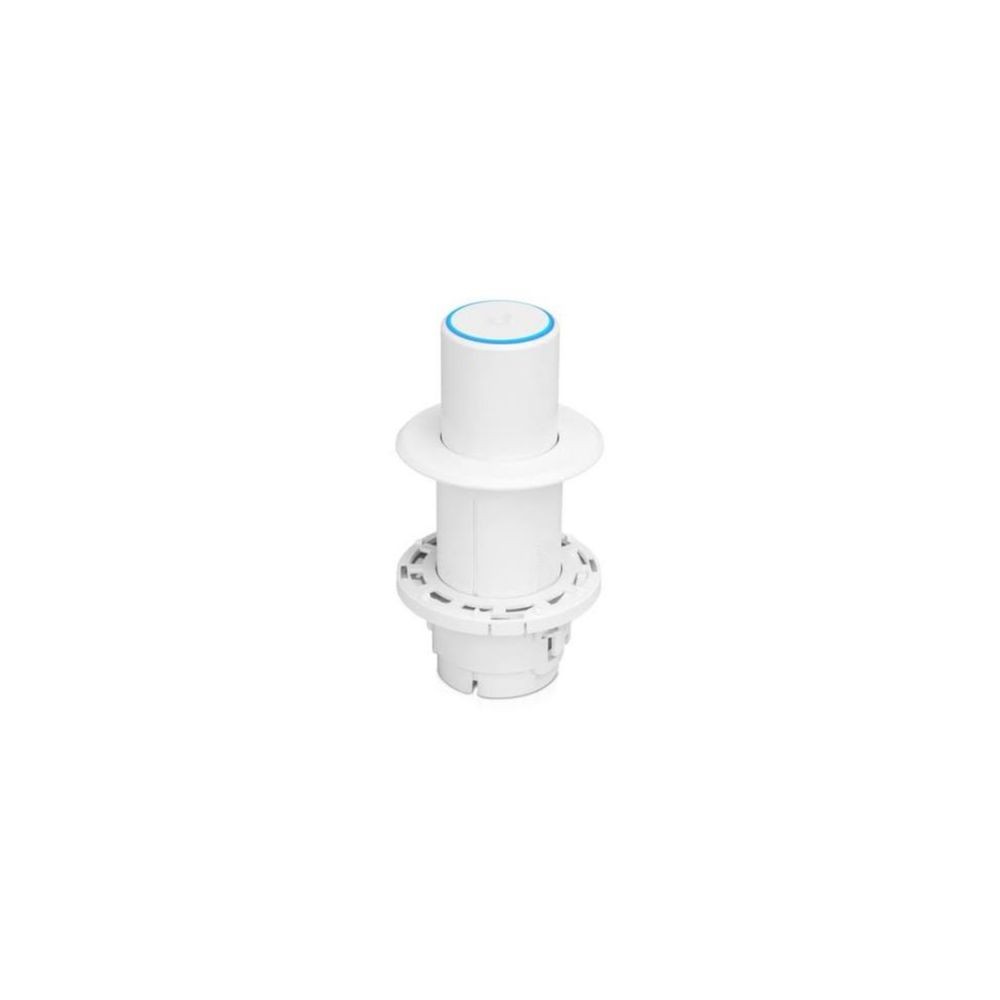

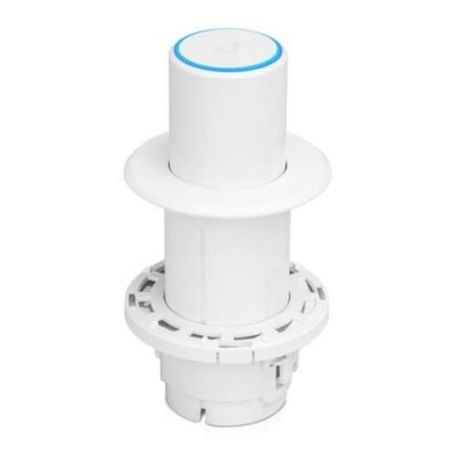

Ubiquiti FLEXHD-CM-3 – UniFi Mesh AP In-Ceiling Mount 3-Pack
Overview
The Ubiquiti FLEXHD-CM-3 is a recessed in-ceiling mounting accessory for UniFi FlexHD and U6 Mesh access points. It provides a low-profile installation method for drop ceiling tiles, drywall ceilings, and solid ceiling surfaces.
The mount uses a sliding retainer with locking threads and a snap-in mechanism to secure the compatible access point. The package contains three mounts and includes drywall mounting hardware.
Technical Information
Each mount measures 87.1 mm in diameter and 112 mm in height and uses polycarbonate construction. Installation is intended for indoor environments. A 54 mm (2 1/8-inch) cutout is required for the recessed installation.
Compatibility
FLEXHD-CM-3 is designed for Ubiquiti FlexHD and U6 Mesh access points. It is intended for ceiling installation and should not be treated as an outdoor mounting accessory.
Key Features
- Recessed in-ceiling mounting design for a low-profile installation
- Compatible with Ubiquiti FlexHD and U6 Mesh access points
- Sliding retainer with locking threads and snap-in AP mechanism
- Supports drop ceiling tile, drywall, and solid ceiling installation
- Supplied as a 3-pack with drywall mounting hardware
Applications
FLEXHD-CM-3 is suited to indoor wireless network deployments where FlexHD or U6 Mesh access points need to be integrated into suspended ceilings, drywall ceilings, or solid ceiling structures.
DC Supplies Product Note
The FLEXHD-CM-3 requires a 54 mm ceiling cutout for recessed installation. Verify the ceiling construction and available mounting space before installation.
Specifications
| Brand | Ubiquiti |
|---|
| Part Number / MPN | FLEXHD-CM-3 |
|---|
| Product Type | Mesh AP In-Ceiling Mount |
|---|
| Compatible Access Points | FlexHD, U6 Mesh |
|---|
| Mounting Type | Recessed ceiling |
|---|
| Mounting Locations | Drop ceiling tile, drywall, solid ceiling |
|---|
| Required Cutout | 54 mm (2 1/8 in.) |
|---|
| Mounting Environment | Indoor only |
|---|
| Dimensions | 87.1 × 87.1 × 112 mm |
|---|
| Weight | 85 g per mount |
|---|
| Enclosure Material | Polycarbonate |
|---|
| Pack Quantity | 3 |
|---|
| Mounting Mechanism | Sliding retainer with locking threads and snap-in mechanism |
|---|
| Drywall Hardware | Included |
|---|
FAQs
Which access points are compatible with FLEXHD-CM-3?
The mount is designed for Ubiquiti FlexHD and U6 Mesh access points.
How many mounts are included?
FLEXHD-CM-3 is supplied as a three-pack.
What ceiling materials are supported?
The mount can be installed in drop ceiling tiles, drywall ceilings, and solid ceiling surfaces.
What size cutout is required?
A 54 mm (2 1/8-inch) cutout is required for the recessed installation.
Is FLEXHD-CM-3 suitable for outdoor installation?
No. Ubiquiti specifies the mount for indoor use only.
