Ubiquiti UA-Retrofit-Reader-B – UniFi Access Retrofit Reader
Overview

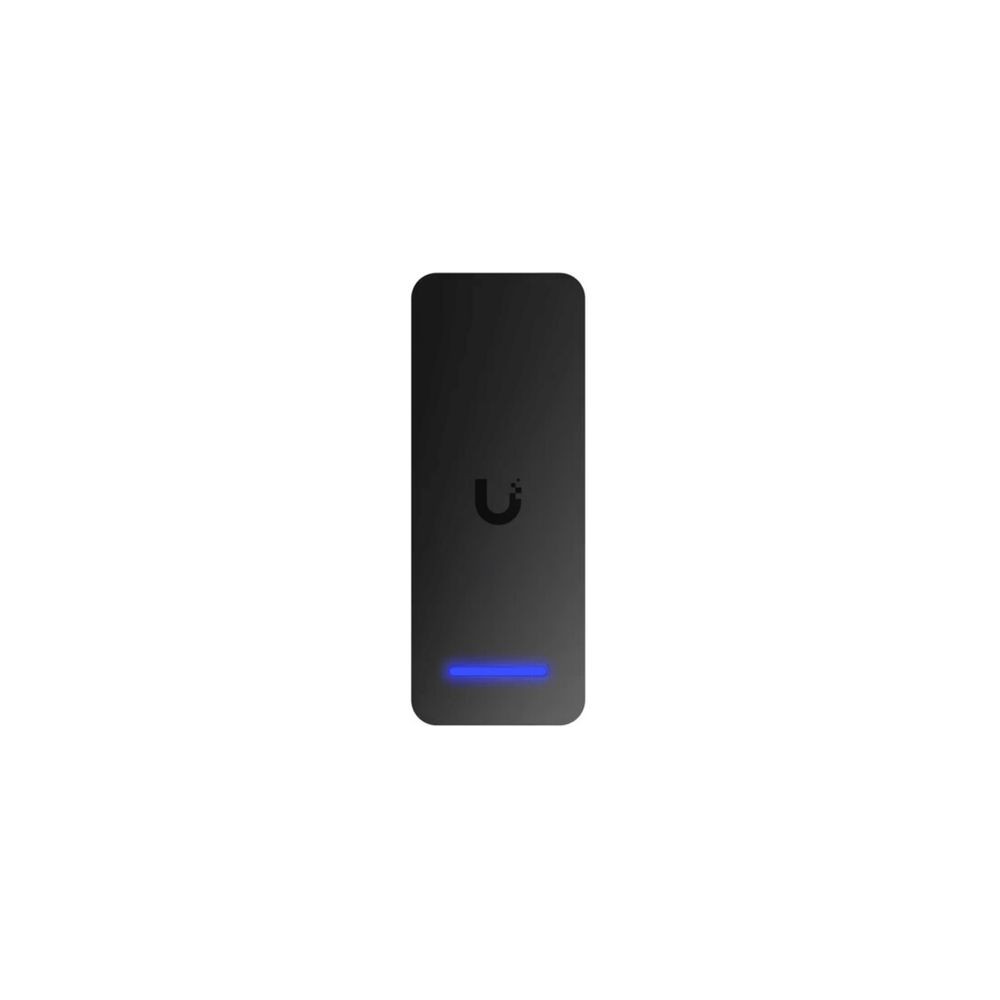

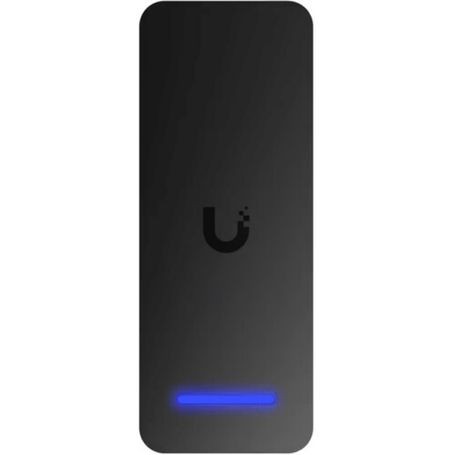

The Ubiquiti UA-Retrofit-Reader-B is a black UniFi Access indoor/outdoor access reader designed for deployments using the UniFi Retrofit Hub and existing access-control cabling. It provides OSDP-based reader communication with NFC card and keyfob access, Apple/Google Wallet support, Mobile Unlock, and Touch Pass functionality. It is intended for upgrading compatible access-control installations without replacing existing reader wiring. The reader communicates through RS-485 using OSDP v2 and operates from 12V DC with a maximum power consumption of 2.5W. NFC operates at 13.56 MHz with a read range of less than 30 mm. The enclosure combines polycarbonate and aluminum alloy, while the included mounting hardware uses stainless steel.
Technical Information
The UA-Retrofit-Reader-B supports NFC technologies including ISO 14443A, ISO 14443B, ISO 15693, NFC Tags 1–5, MIFARE Classic, MIFARE Plus, MIFARE Ultralight, and MIFARE DESFire. Bluetooth 4.1 is also supported, while the reader provides a factory-reset button, speaker, and multicolor R/G/B/W LED indicators. Its 117 x 45 x 13.3 mm form factor and 82 g weight support compact wall or gang-box installations. The reader is rated IP55 for indoor/outdoor deployment and operates from -30°C to 50°C with 5–90% non-condensing humidity.
Compatibility and Deployment
The UA-Retrofit-Reader-B is designed to connect to the UniFi Retrofit Hub using existing reader cabling. Ubiquiti documents compatibility with Retrofit Hub installations that use existing RS-485 wiring from previous Wiegand or OSDP deployments. Retrofit Readers can be automatically discovered and adopted by the UniFi Retrofit Hub. This reader is appropriate for access-control upgrades where existing cabling can be retained. It should not be treated as a standalone door-lock controller; the UniFi Retrofit Hub provides the control interface for the connected door hardware.
Applications
Existing access-control system modernization Commercial office entrances Retail and business facilities Educational and institutional access points Indoor and outdoor controlled doors Retrofit installations using existing reader cabling UniFi Access deployments requiring NFC and mobile credentials
Key Features
Indoor/outdoor OSDP access reader with IP55 weather resistance NFC card, keyfob, Apple/Google Wallet, Mobile Unlock, and Touch Pass support RS-485 connectivity with OSDP v2 security protocol 12V DC operation with maximum 2.5W power consumption Compact 117 x 45 x 13.3 mm enclosure for wall or gang-box mounting
DC Supplies Product Note
The Ubiquiti UA-Retrofit-Reader-B is an access-control reader, not a network switch, router, PoE switch, UPS, or standalone door-lock controller. It is designed to work with the UniFi Retrofit Hub and uses 12V DC power at the reader.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Model | UA-Retrofit-Reader-B |
| Product Type | UniFi Access Retrofit Reader |
| Color | Black |
| Dimensions | 117 x 45 x 13.3 mm (4.6 x 1.8 x 0.5 in.) |
| Weight | 82 g (2.9 oz) |
| Enclosure Material | Polycarbonate, aluminum alloy |
| Mount Material | Stainless steel |
| Mounting | Wall, gang-box mount; junction box optional |
| Indoor/Outdoor Use | Yes |
| Ingress Protection | IP55 |
| Connectivity | RS-485, Bluetooth 4.1, NFC |
| Security Protocol | OSDP v2 |
| Power Method | 12V DC |
| Maximum Power Consumption | 2.5W |
| NFC Frequency | 13.56 MHz |
| NFC Read Range | <30 mm (1.18 in.) |
| Operating Temperature | -30°C to 50°C (-22°F to 122°F) |
| Operating Humidity | 5–90% non-condensing |
| ESD/EMP Protection | Air: ±15 kV; Contact: ±8 kV |
| Certifications | CE, FCC, IC |
| Management Application | UniFi Access |
The specifications above are cross-checked against Ubiquiti's technical documentation and distributor data for the exact UA-Retrofit-Reader-B model.
FAQs
What is the Ubiquiti UA-Retrofit-Reader-B?
The UA-Retrofit-Reader-B is a UniFi Access indoor/outdoor retrofit access reader with OSDP, NFC, and mobile credential support.
What hub does the UA-Retrofit-Reader-B work with?
It is designed to work with the UniFi Retrofit Hub and existing access-control reader cabling.
Does the UA-Retrofit-Reader-B support NFC?
Yes. It supports NFC cards and keyfobs, with a 13.56 MHz operating frequency and a read range of less than 30 mm.
Does it support Apple and Google Wallet?
Yes. Ubiquiti lists Apple/Google Wallet support for the Retrofit Reader.
Does the UA-Retrofit-Reader-B support Touch Pass?
Yes. Touch Pass is supported when the Retrofit Hub is connected to a compatible Retrofit Reader.
What communication protocol does it use?
The reader uses RS-485 connectivity with OSDP v2.
What power does the reader require?
The UA-Retrofit-Reader-B operates from 12V DC and has a maximum power consumption of 2.5W.
Can it be installed outdoors?
Yes. The reader is rated IP55 and is specified for indoor and outdoor use.
What are the dimensions of the UA-Retrofit-Reader-B?
The reader measures 117 x 45 x 13.3 mm and weighs 82 g.
