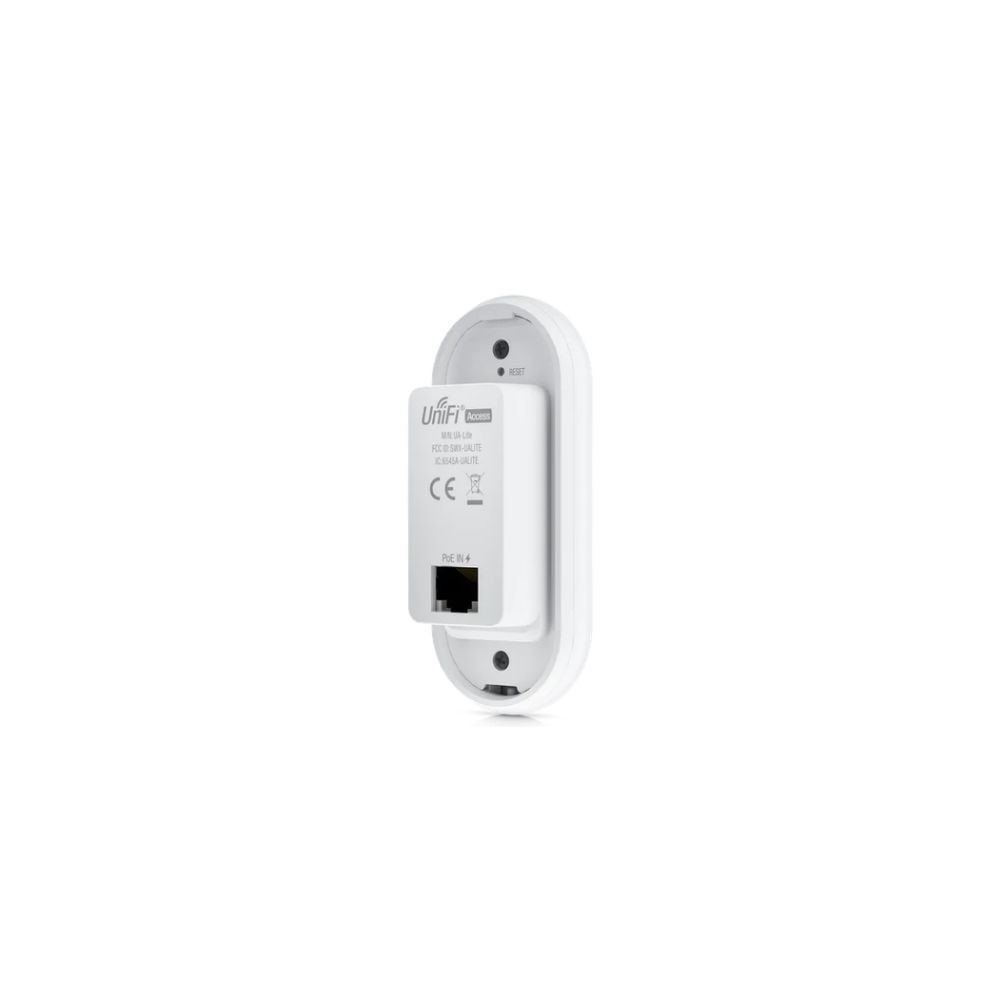

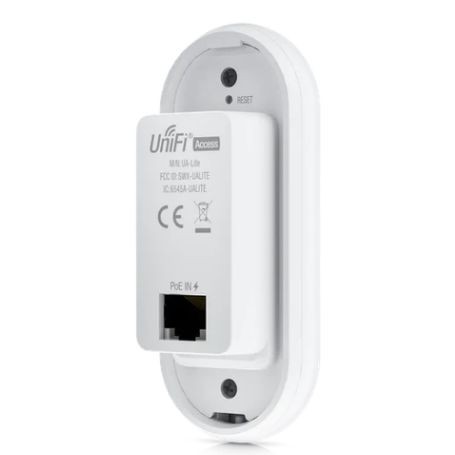

Ubiquiti UA-Reader Lite – UniFi Access NFC Door Reader with PoE
Overview
The Ubiquiti UA-Reader Lite is a compact UniFi Access door reader designed for NFC card and keyfob access, mobile unlocking, and handwave request-to-exit functionality. It connects to the UniFi Access platform through Ethernet and is powered using PoE.
The reader supports a 13.56 MHz NFC interface with a read range of less than 30 mm and supports multiple NFC standards and technologies, including ISO 14443A, ISO 14443B, ISO 15693, MIFARE Classic, MIFARE Plus, MIFARE Ultralight, and MIFARE DESFire.
Technical Information
The UA-Reader Lite provides one 10/100 MbE network interface and BLE 4.1 connectivity. Maximum power consumption is 6W, with a supported input voltage range of 44–57V DC when powered through the specified PoE or supported power supply methods.
The enclosure is made from polycarbonate and measures 94.9 x 40 x 31.1 mm. The unit weighs 67 g and includes wall-mount and gang-box mounting options.
Compatibility
The UA-Reader Lite is managed through UniFi Access. It is designed for door access installations using compatible UniFi Access infrastructure and supports NFC cards, keyfobs, and mobile unlocking. Ubiquiti specifies Cat 5e as the minimum recommended PoE cabling category.
Applications
- UniFi Access door entry systems
- NFC card and keyfob access points
- Mobile access control deployments
- Indoor installations and covered outdoor locations
- Access points requiring compact PoE-powered readers
Key Features
- NFC card and keyfob access with 13.56 MHz frequency
- Mobile unlock and handwave request-to-exit support
- 10/100 MbE Ethernet and BLE 4.1 connectivity
- PoE-powered operation with 6W maximum consumption
- IP54 weatherproofing with wall and gang-box mounting
DC Supplies Product Note
The UA-Reader Lite supports a 44–57V DC input range and maximum power consumption of 6W. For PoE deployment, Ubiquiti specifies Cat 5e as the minimum recommended cable category and minimum conductor gauges for the PSE-to-device connection.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UA-Reader Lite |
| Product Type | UniFi Access NFC Door Reader |
| Management Application | UniFi Access |
| Dimensions | 94.9 x 40 x 31.1 mm (3.7 x 1.6 x 1.2 in) |
| Weight | 67 g (2.4 oz) |
| Enclosure Material | Polycarbonate |
| Mounting | Wall-mount, gang box mount |
| Weatherproofing | IP54 |
| Networking Interface | 1 x 10/100 MbE |
| Wireless Connectivity | BLE 4.1 |
| Power Method | PoE; UL 294 Power-limited Class 2 PSU; UL 60950-1/62368-1 LPS/PS2 PSU |
| Supported Voltage Range | 44–57V DC |
| Maximum Power Consumption | 6W |
| NFC Frequency | 13.56 MHz |
| NFC Read Range | <30 mm (1.18 in) |
| Operating Temperature | -20 to 40°C (-4 to 104°F) |
| Operating Humidity | 5–90% noncondensing |
| UL 294 Level | Level I for destructive attack, line security, endurance and standby power |
| CAN/ULC-60839-11-1 Grade | Grade I |
| Certifications | CE, FCC, IC, Anatel, SRRC, UL 294, CAN/ULC-60839-11-1 |
| NDAA Compliant | Yes |
FAQs
What type of access credentials does the UA-Reader Lite support?
The reader supports NFC cards and keyfobs, as well as mobile unlocking. It also supports handwave request-to-exit functionality.
What NFC frequency does the reader use?
The UA-Reader Lite operates at 13.56 MHz and supports multiple NFC standards and technologies.
How is the UA-Reader Lite powered?
The reader supports PoE and specified Class 2/LPS/PS2 power supply methods, with a supported voltage range of 44–57V DC.
Can the UA-Reader Lite be installed outdoors?
Ubiquiti specifies indoor and outdoor use with IP54 weatherproofing. The reader is intended for outdoor installation under a roof eave rather than exposed installation.
What network connection does the reader use?
The UA-Reader Lite provides one 10/100 MbE Ethernet interface and BLE 4.1 connectivity.
