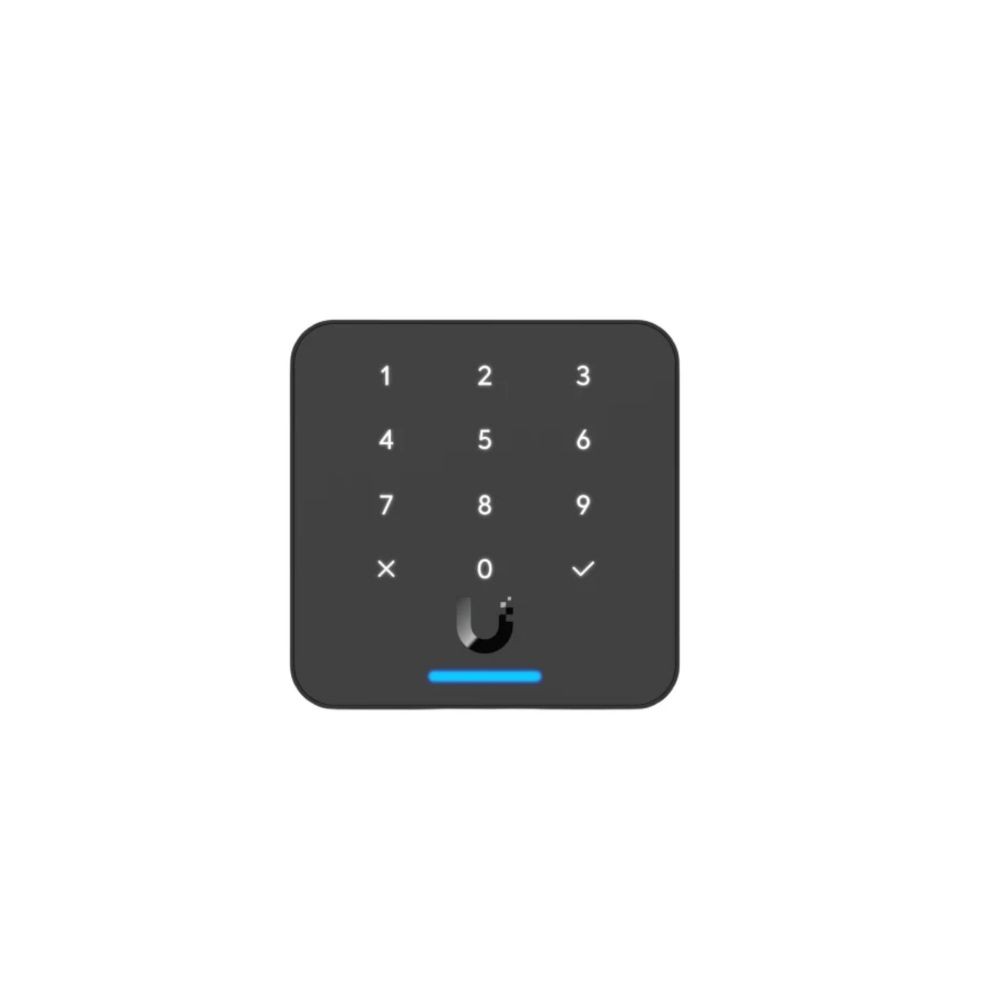

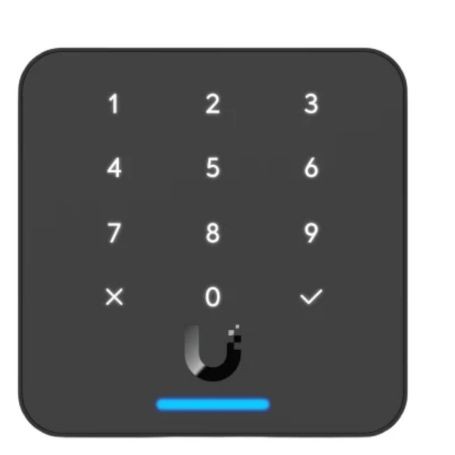

Ubiquiti UA-G3-Flex-B – Access G3 Reader Flex, Black
Overview
The Ubiquiti UA-G3-Flex-B Access G3 Reader Flex is a third-generation access reader designed for UniFi Access installations. This black reader combines NFC credentials, keypad-based PIN access, mobile unlock, Apple and Google Wallet support, and Touch Pass functionality in a compact wall-mounted design.
Key Features
- Third-generation UniFi Access reader with integrated keypad.
- Supports NFC cards and keyfobs, PIN access, mobile unlock, and Apple/Google Wallet.
- Includes support for Touch Pass, with 10 free one-year Touch Passes.
- 12 capacitive buttons provide keypad-based access input.
- IP55 weatherproofing for indoor and outdoor deployments.
Access Authentication
The UA-G3-Flex-B supports multiple authentication methods for UniFi Access deployments. Users can authenticate with compatible NFC cards and keyfobs, enter a PIN using the capacitive keypad, or use mobile-based credentials including Apple Wallet, Google Wallet, and mobile unlock.
Keypad and Touch Pass
The integrated keypad provides 12 capacitive buttons for PIN-based access. The Reader Flex also supports Touch Pass, giving administrators an additional mobile access method within the UniFi Access ecosystem. Ubiquiti specifies 10 free one-year Touch Passes with the reader.
Network and Power
The UA-G3-Flex-B connects to an access-control network through a 10/100 MbE RJ45 port and uses PoE for power. The reader supports a 44–57V DC voltage range and has a maximum power consumption of 5W.
Indoor and Outdoor Installation
The Reader Flex is designed for both indoor and outdoor use and has an IP55 weatherproofing rating. Wall mounting is included, while gang-box and junction-box mounting can be used with the appropriate optional mounting hardware.
Physical Design
The UA-G3-Flex-B has a compact 84 x 84 x 40.8 mm form factor and weighs 165 g. Its enclosure combines polycarbonate, glass, and aluminium alloy, while the mount uses polycarbonate and aluminium alloy.
DC Supplies Product Note
The UA-G3-Flex-B is an access reader rather than a complete door-control hub. It is intended to operate as part of a UniFi Access installation and provides credential authentication, keypad input, and network connectivity for access management.
Specifications
| Brand | Ubiquiti |
|---|
| Part Number / MPN | UA-G3-Flex-B |
|---|
| Product Type | Access G3 Reader Flex |
|---|
| Color | Black |
|---|
| UniFi Application Suite | Access |
|---|
| Access Methods | NFC Card & Keyfob, PIN, Apple/Google Wallet, Mobile Unlock |
|---|
| Touch Pass | 10 free 1-year Touch Passes included |
|---|
| Keypad | 12 capacitive buttons |
|---|
| Weatherproofing | IP55 |
|---|
| Indoor/Outdoor Use | Yes |
|---|
| Networking Interface | 1 × 10/100 MbE RJ45 |
|---|
| Connectivity | BLE 4.1, NFC |
|---|
| Power Method | PoE |
|---|
| Supported Voltage Range | 44–57V DC |
|---|
| Maximum Power Consumption | 5W |
|---|
| NFC Frequency | 13.56 MHz |
|---|
| NFC Read Range | < 30 mm |
|---|
| Dimensions | 84 x 84 x 40.8 mm |
|---|
| Weight | 165 g |
|---|
| Enclosure Material | Polycarbonate, glass, aluminium alloy |
|---|
| Mount Material | Polycarbonate, aluminium alloy |
|---|
| Mounting | Wall included; gang box and junction box optional |
|---|
| Operating Temperature | -30 to 60°C |
|---|
| Operating Humidity | 5 to 90% noncondensing |
|---|
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
|---|
Frequently Asked Questions
What is the Ubiquiti UA-G3-Flex-B?
The UA-G3-Flex-B is a third-generation UniFi Access Reader Flex with NFC, keypad, mobile unlock, and digital wallet support.
Does the UA-G3-Flex-B support PIN access?
Yes. The Reader Flex includes 12 capacitive buttons for PIN-based access.
Does the Reader Flex support Apple and Google Wallet?
Yes. The UA-G3-Flex-B supports both Apple Wallet and Google Wallet credentials.
Can the UA-G3-Flex-B be installed outdoors?
Yes. Ubiquiti specifies indoor and outdoor use with IP55 weatherproofing.
How is the UA-G3-Flex-B powered?
The reader uses PoE and supports a 44–57V DC voltage range, with maximum power consumption of 5W.
What mounting options are available?
Wall mounting is included. Gang-box and junction-box mounting are supported with optional mounting hardware.
