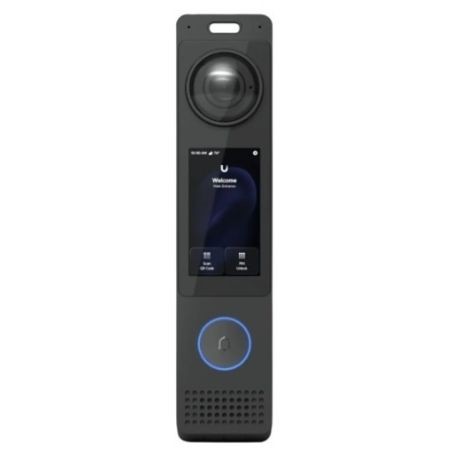

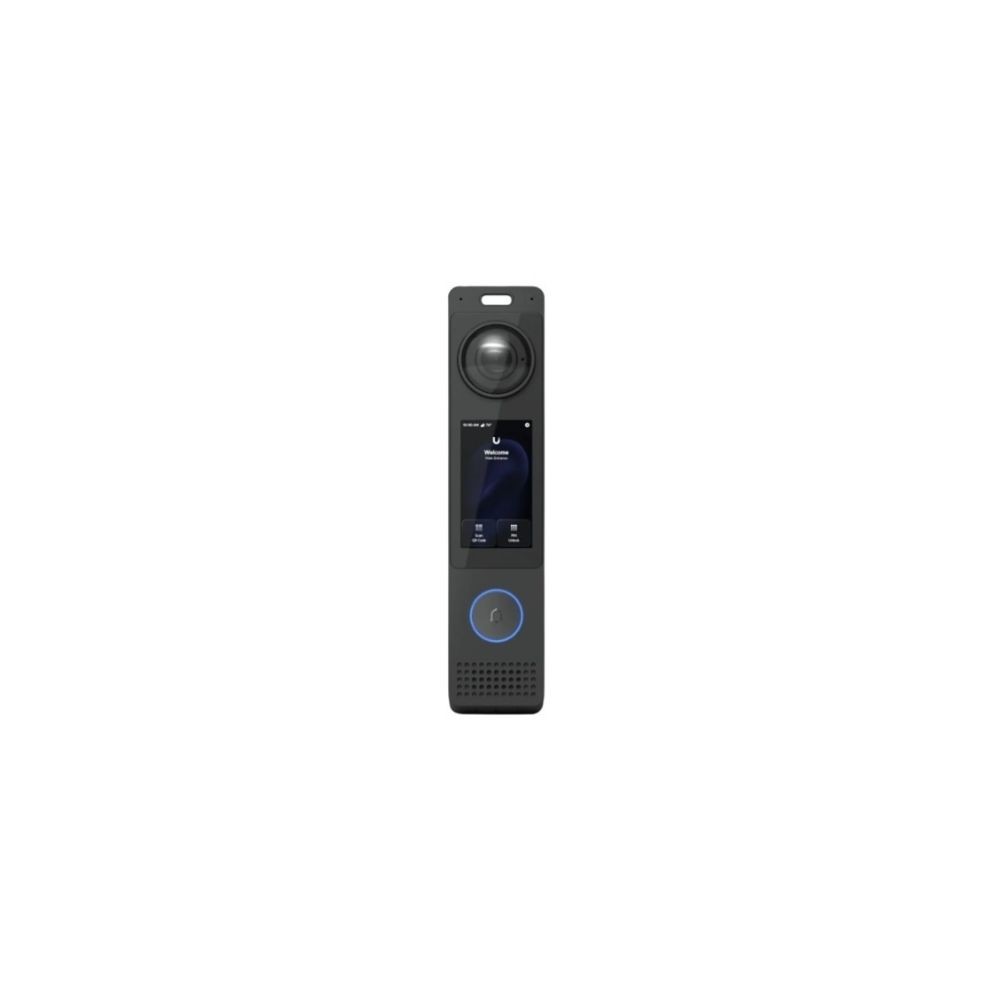

Ubiquiti UVC-G6-Pro-Entry – G6 Pro Entry 12MP Access Reader
Overview
The Ubiquiti UVC-G6-Pro-Entry G6 Pro Entry is an intelligent door access reader with native UniFi Protect and UniFi Access integration. It combines a 12MP main camera, 8MP package camera, 3-inch capacitive touchscreen, two-way audio, and multiple door unlock methods in a single access control device.
Key Features
- 12MP main camera optimized for Face ID and access monitoring
- 8MP package camera for package-area visibility
- 3-inch capacitive multi-touch display
- Face Recognition, NFC card and keyfob, PIN, QR code, Apple Wallet, Google Wallet, and mobile unlock support
- Two-way audio, doorbell access, and live video through UniFi Protect
12MP G6 Pro Entry Camera
The UVC-G6-Pro-Entry features a 12MP main camera with a resolution of 3024 x 4096 in a 3:4 aspect ratio. The main camera provides a 100° horizontal, 136.3° vertical, and 176.4° diagonal field of view, designed to provide full-person visibility for Face ID applications.
Access Control and Unlock Methods
The Ubiquiti G6 Pro Entry supports multiple access methods including Face Recognition, NFC card and keyfob access, PIN access, QR code unlock, Apple Wallet, Google Wallet, mobile unlock, and Face Unlock. Door access features such as NFC, Face ID, and Interface Designer configuration require an Access Hub together with UniFi Protect and UniFi Access applications.
Touchscreen and Intercom
The integrated 3-inch capacitive multi-touch display has a portrait orientation, 480 x 854 pixel resolution, and maximum luminance of 1000 nits typical. The UVC-G6-Pro-Entry also supports two-way audio and doorbell access for visitor communication.
Package Camera and Smart Detection
The G6 Pro Entry includes an 8MP package camera with a 3264 x 2448 resolution and a 66° horizontal field of view. The device supports smart detections for people, vehicles, and animals, along with built-in IR illumination providing up to 5 m (16 ft) of IR night vision.
Network and Power
The UVC-G6-Pro-Entry provides a Gigabit Ethernet RJ45 interface and supports PoE+ power. Maximum power consumption is 18W. For PoE cabling, Ubiquiti specifies Cat 5e as the minimum recommended performance category.
Indoor and Outdoor Installation
The G6 Pro Entry is designed for indoor and outdoor use and provides IP55 weatherproofing. Mounting options include wall mounting, gangbox mounting, and a 20° wedge mount. The device has IK07 LCM and IK04 tamper resistance ratings.
DC Supplies Product Note
The Ubiquiti UVC-G6-Pro-Entry combines access control, visitor communication, and video monitoring in one intelligent entry device. Its native UniFi Protect and UniFi Access integration makes it suitable for installations requiring Face ID, multiple credential options, touchscreen interaction, and real-time entry monitoring.
Specifications
| Brand | Ubiquiti |
|---|
| Part Number / MPN | UVC-G6-Pro-Entry |
|---|
| Product Type | Intelligent Door Access Reader |
|---|
| Model | G6 Pro Entry |
|---|
| Main Camera | 12MP CMOS |
|---|
| Package Camera | 8MP CMOS |
|---|
| Main Camera Resolution | 12MP: 3024 x 4096; 8MP: 2160 x 3840 |
|---|
| Package Camera Resolution | 8MP: 3264 x 2448 |
|---|
| Main Camera Field of View | H 100°, V 136.3°, D 176.4° at 12MP |
|---|
| Package Camera Field of View | H 66°, V 51.7°, D 78° |
|---|
| IR Night Vision | 5 m (16 ft) |
|---|
| Display | 3-inch capacitive multi-touch |
|---|
| Display Resolution | 480 x 854 px |
|---|
| Display Orientation | Portrait |
|---|
| Access Methods | Face Recognition, NFC Card & Keyfob, PIN, QR Code, Apple Wallet, Google Wallet, Mobile Unlock, Face Unlock |
|---|
| Audio | Two-way audio |
|---|
| Networking Interface | GbE RJ45 |
|---|
| Connectivity | BLE 4.1, NFC |
|---|
| Power Method | PoE+ |
|---|
| Maximum Power Consumption | 18W |
|---|
| Weatherproofing | IP55 |
|---|
| Tamper Resistance | IK07 LCM, IK04 |
|---|
| Mounting | Wall mount, Gangbox mount plate, 20° wedge mount |
|---|
| Dimensions | 220 x 49.3 x 29.6 mm (8.7 x 1.9 x 1.2") |
|---|
| Weight | 360 g (12.7 oz) |
|---|
| Enclosure Material | Aluminum |
|---|
| Operating Temperature | -30 to 50°C (-22 to 122°F) |
|---|
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
|---|
FAQs
What is the Ubiquiti UVC-G6-Pro-Entry?
The UVC-G6-Pro-Entry is the UniFi G6 Pro Entry intelligent door access reader with integrated cameras, touchscreen, access credentials, and two-way audio.
What camera resolution does the G6 Pro Entry support?
The main camera provides 12MP resolution, while the integrated package camera provides 8MP resolution.
What access methods does the UVC-G6-Pro-Entry support?
The G6 Pro Entry supports Face Recognition, NFC card and keyfob access, PIN, QR code unlock, Apple Wallet, Google Wallet, mobile unlock, and Face Unlock.
Does the UVC-G6-Pro-Entry have a touchscreen?
Yes. It has a 3-inch capacitive multi-touch display with 480 x 854 pixel resolution.
Does the G6 Pro Entry support outdoor installation?
Yes. The UVC-G6-Pro-Entry supports indoor and outdoor use and has IP55 weatherproofing.
How is the UVC-G6-Pro-Entry powered?
The G6 Pro Entry supports PoE+ power through its Gigabit Ethernet RJ45 interface and has a maximum power consumption of 18W.
