Detailed Specifications

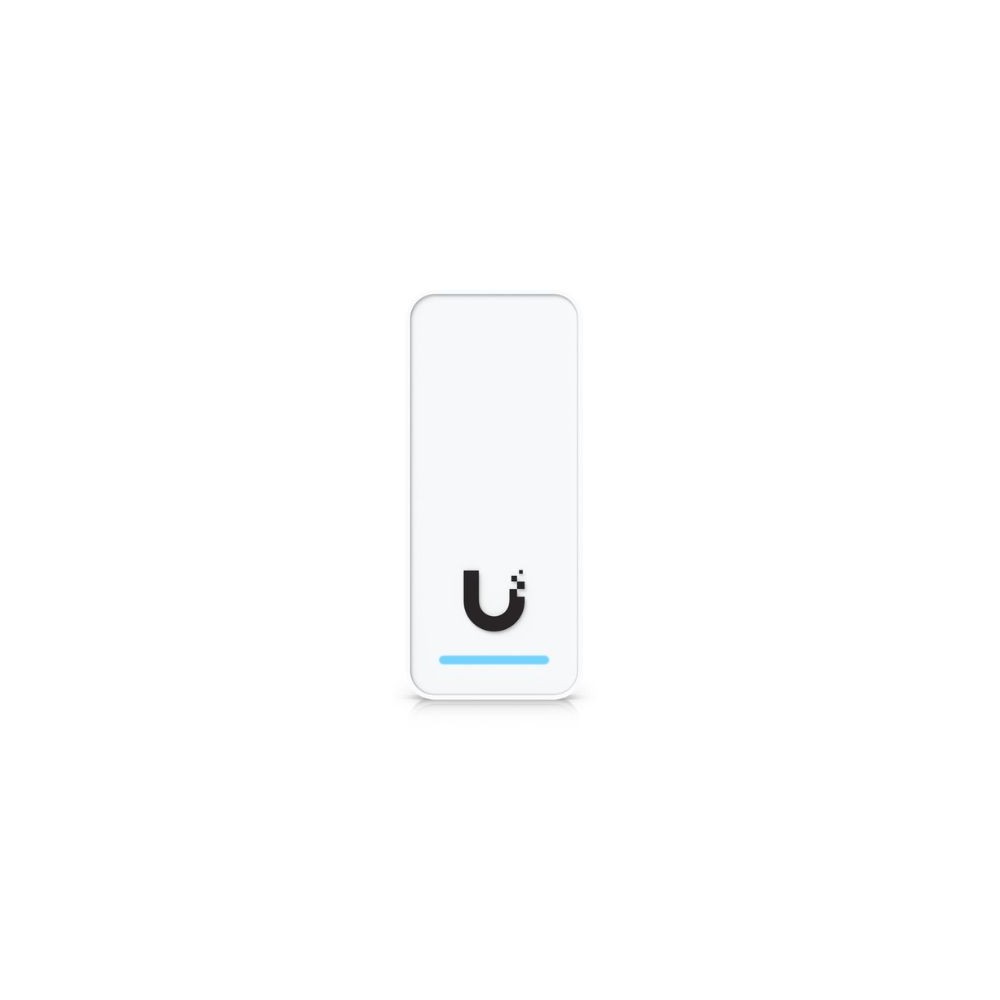

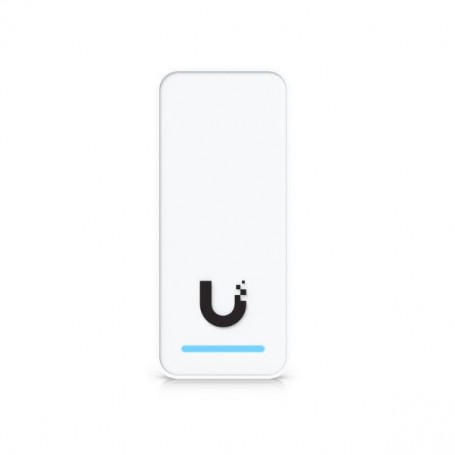

Ubiquiti UA-G3-W UniFi Access G3 Reader
Overview
The Ubiquiti UA-G3-W is a PoE-powered access reader for UniFi Access systems used to authenticate NFC cards and Bluetooth mobile credentials at secured doorways. It mounts on a standard electrical wall box and connects via a single Ethernet cable carrying both network and power. The reader's RGB status ring provides visual feedback of credential reads and system state. It integrates with UniFi Access controllers and software for centralized configuration and event logging in commercial and enterprise access control deployments.
Key Features
• PoE-powered NFC/Bluetooth reader
• NFC (13.56 MHz) credential support
• Bluetooth Low Energy mobile credentials
• Wall mount with RGB status ring
Technical Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number | UA-G3-W |
| Product Type | UniFi Access Reader |
| Power Method | PoE (802.3af), 48 V DC |
| Max Power Consumption | 5 W |
| Network Interface | (1) 10/100 Mb/s RJ45 |
| Credential Support | NFC (13.56 MHz), BLE |
| LED Indicators | RGB status ring |
| Mount Type | Wall mount |
| Mount Standard | 86 mm electrical box compatible |
| Weather Rating | IP55 |
| Operating Temperature | −30 °C to 45 °C |
| Operating Humidity | 5 % to 90 % non-condensing |
| Dimensions | 120 × 65 × 25 mm |
| Weight | 105 g |
