Detailed Specifications

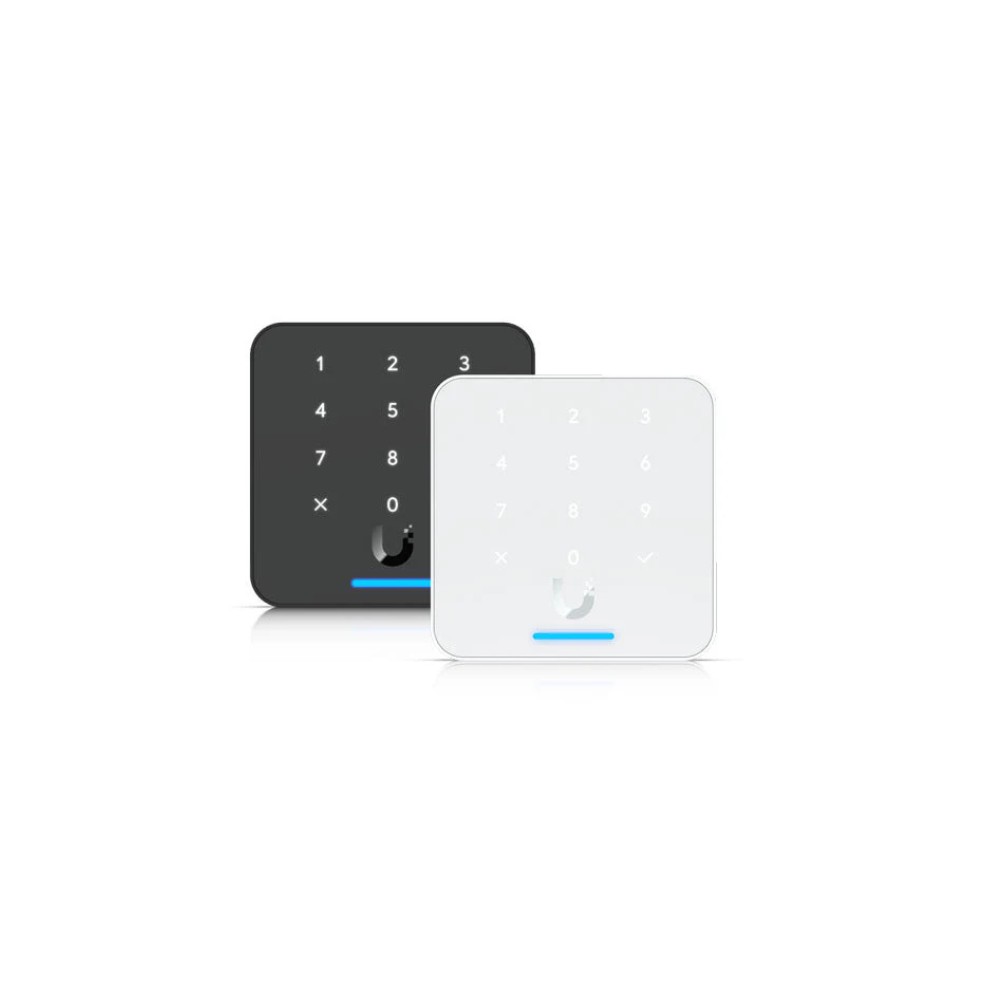

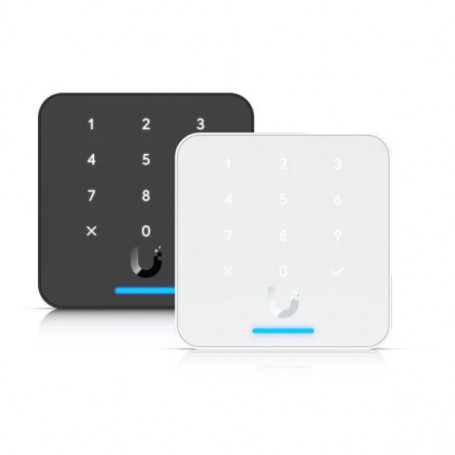

Ubiquiti UA-G3-FLEX-W UniFi Access G3 Reader
Overview
The Ubiquiti UA-G3-FLEX-W is a wall-mount NFC and Bluetooth access reader designed for use with UniFi Access control systems to authenticate credentials at secured entry points. It supports NFC (13.56 MHz) compliant credentials and Bluetooth Low Energy for mobile credential interaction, enabling flexible authentication options. The reader uses PoE power via Ethernet and mounts flush to walls, making it suitable for offices, commercial spaces, and controlled access points. It integrates with UniFi Access hubs and management software for centralized configuration and logging.
Key Features
• PoE powered access reader
• NFC & Bluetooth credential support
• Wall-mount housing with LED ring
• Standard 86 mm electrical box compatible
Technical Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number | UA-G3-FLEX-W |
| Product Type | UniFi Access Reader |
| Power Method | PoE (802.3af), 48 V DC |
| Max Power Consumption | 5 W |
| Network Interface | (1) 10/100 Mb/s RJ45 |
| Credential Support | NFC (13.56 MHz), BLE |
| Mount Type | Wall mount |
| Mount Standard | 86 mm electrical box |
| LED Indicator | RGB status ring |
| Operating Temp | −30 °C to 45 °C |
| Operating Humidity | 5 % to 90 % non-condensing |
| Weather Rating | IP55 |
| Dimensions | 120 × 65 × 25 mm |
| Weight | 110 g |
