Ubiquiti UA-SK-US – UniFi Access Starter Kit for Single-Door Access Control
Overview
The Ubiquiti UA-SK-US is a UniFi Access Starter Kit designed to provide the core hardware for a single-door access control installation. The kit combines a UniFi Access Hub, one UniFi Access Reader Pro, one UniFi Access Reader Lite, and 20 UniFi Access Cards.
The system is designed for access management through UniFi Access and supports common electric bolts, electric strikes, and magnetic locks. The Access Hub provides the door-control interfaces, while the two included readers provide access authentication at the door.
Technical Information

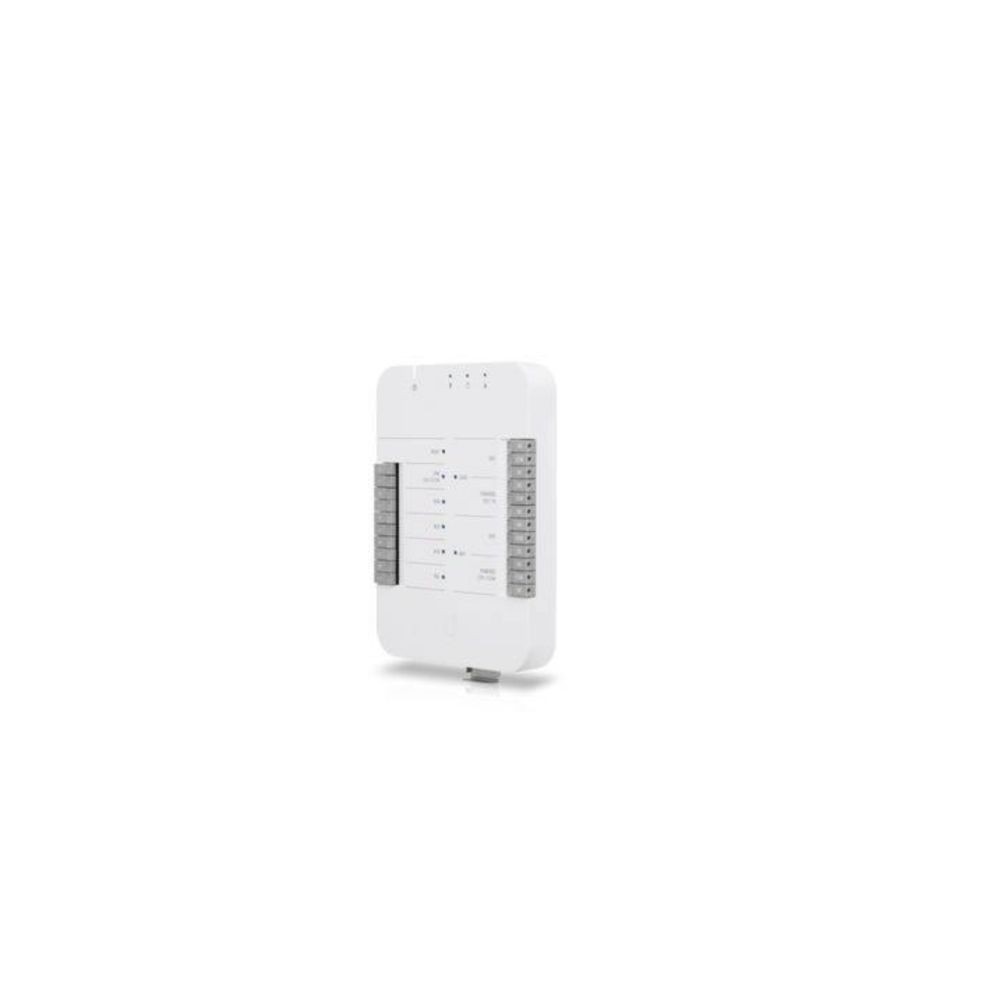

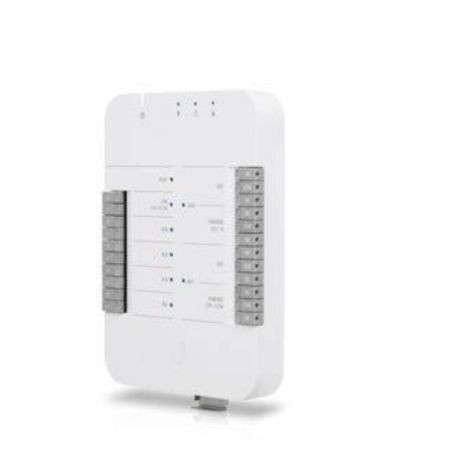

The UniFi Access Hub uses 802.3bt PoE for power and provides four 1 Gbps Ethernet interfaces. It supports request-to-exit, request-to-enter, remote release, and door-position inputs, together with dry and powered relay outputs for access-control hardware.
The included Access Reader Pro and Access Reader Lite use 802.3af PoE and provide Ethernet and Bluetooth connectivity. Both readers support 13.56 MHz NFC credentials with a read range of less than 30 mm.
Access Credentials
The included UniFi Access Cards use NFC technology and are designed for UniFi Access. The readers support ISO 14443A, ISO 14443B, and ISO 15693 standards, along with NFC Tag 1–5, MIFARE Classic, MIFARE Plus, MIFARE Ultralight, and MIFARE DESFire EV1/EV2 technologies.
The Access Reader Pro additionally integrates a camera with a 147.5° ±3° viewing angle, while the Access Reader Lite provides a compact NFC and Bluetooth reader design.
Compatibility
The UA-SK-US is designed for UniFi Access installations and supports electric bolts, electric strikes, and magnetic locks. The access system is managed through the UniFi Access application and requires compatible UniFi Access infrastructure for operation.
The included hub and readers are powered using PoE. A PoE switch is not included with the starter kit.
Applications
- Single-door access control installations
- Office and commercial entry systems
- Electric strike and electric bolt access control
- Magnetic-lock door installations
- UniFi Access deployments requiring both Pro and Lite readers
Key Features
- Complete starter kit for a single-door UniFi Access deployment
- Includes UniFi Access Hub, Access Reader Pro and Access Reader Lite
- Includes 20 UniFi Access NFC cards
- Hub provides 802.3bt PoE power and four 1 Gbps Ethernet interfaces
- Readers support 13.56 MHz NFC credentials with Bluetooth connectivity
DC Supplies Product Note
The UA-SK-US uses PoE-powered access hardware, but the kit does not include a PoE switch. Confirm that the installation provides suitable 802.3bt power for the Access Hub and 802.3af PoE connections for the included readers before deployment.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UA-SK-US |
| Product Type | UniFi Access Starter Kit |
| System Type | Single-door access control |
| Included Hub | 1 × UniFi Access Hub |
| Included Readers | 1 × UniFi Access Reader Pro; 1 × UniFi Access Reader Lite |
| Included Access Cards | 20 × UniFi Access Cards |
| Hub Networking | 4 × 1 Gbps Ethernet |
| Hub Power Method | 802.3bt PoE |
| Hub Maximum Power Consumption | 40W |
| Hub Mounting | DIN rail |
| Reader Pro Networking | 10/100 Mbps Ethernet |
| Reader Pro Power Method | 802.3af PoE |
| Reader Pro Maximum Power Consumption | 8.3W |
| Reader Pro Camera Viewing Angle | 147.5° ±3° |
| Reader Pro IP Rating | IP54 |
| Reader Lite Networking | 10/100 Mbps Ethernet |
| Reader Lite Power Method | 802.3af PoE |
| Reader Lite Maximum Power Consumption | 6W |
| Reader Lite IP Rating | IP54 |
| NFC Frequency | 13.56 MHz |
| NFC Read Range | <30 mm |
| NFC Standards | ISO 14443A, ISO 14443B, ISO 15693 |
| Supported NFC Technologies | NFC Tag 1–5, MIFARE Classic, MIFARE Plus, MIFARE Ultralight, MIFARE DESFire EV1/EV2 |
| Hub Operating Temperature | 0 to 40°C (32 to 104°F) |
| Reader Pro Operating Temperature | -10 to 40°C (14 to 104°F) |
| Reader Lite Operating Temperature | -40 to 40°C (-40 to 104°F) |
| Certifications | CE, FCC, IC |
| NDAA Compliant | Yes |
FAQs
What is included with the UA-SK-US?
The kit includes one UniFi Access Hub, one UniFi Access Reader Pro, one UniFi Access Reader Lite, and 20 UniFi Access Cards.
What type of door locks can the system support?
The UA-SK-US supports access-control installations using electric bolts, electric strikes, and magnetic locks.
Does the kit include a PoE switch?
No. The starter kit hardware is PoE powered, but a PoE switch is not included.
What NFC standards do the included readers support?
The readers support 13.56 MHz NFC credentials using ISO 14443A, ISO 14443B, and ISO 15693 standards, along with several supported NFC and MIFARE technologies.
What is the difference between the included Reader Pro and Reader Lite?
The Reader Pro includes an integrated camera and a 147.5° ±3° viewing angle, while the Reader Lite is a compact NFC and Bluetooth access reader without the integrated camera specification.
