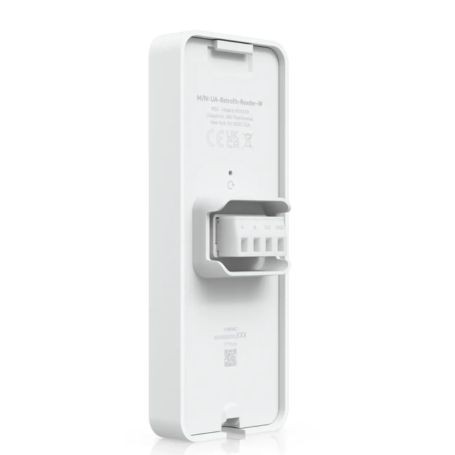

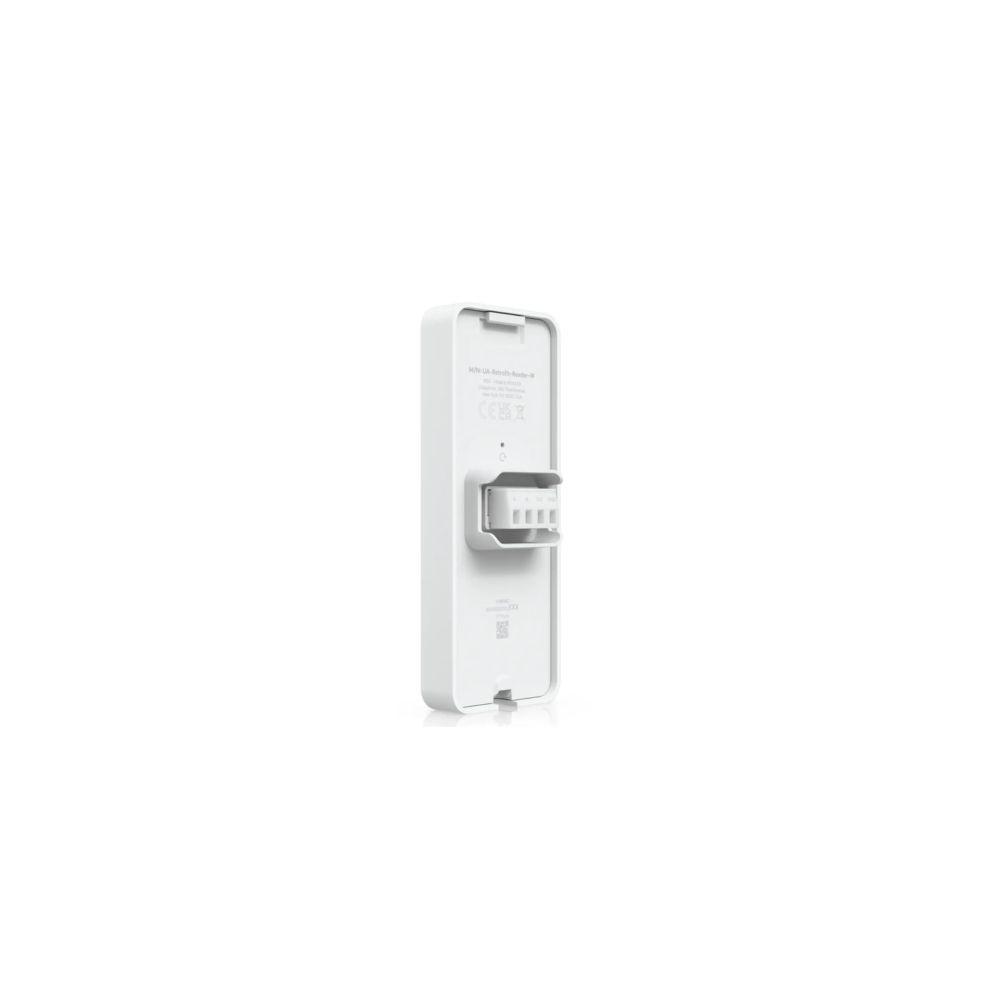

Ubiquiti UA-RETROFIT-READER-W – UniFi Retrofit Reader White
Overview
The Ubiquiti UA-RETROFIT-READER-W is a white UniFi Retrofit Reader designed for indoor and outdoor access control installations. It uses OSDP over RS-485 and is designed to work with the UniFi Retrofit Hub while allowing existing reader cabling to be reused.
The reader supports NFC card and keyfob access, Touch Pass, Apple and Google Wallet, and mobile unlock through UniFi Access. Its compact enclosure provides IP55 weatherproofing for indoor and outdoor deployment.
Technical Information
The Retrofit Reader communicates with the UniFi Retrofit Hub through RS-485 using OSDP v2. It supports Bluetooth Low Energy 4.1 and NFC, with a 13.56 MHz NFC interface and a read range of less than 30 mm.
The reader operates from 12V DC and has a maximum power consumption of 2.5W. It includes a factory-reset button, speaker and multicolor status LEDs.
Compatibility
The UA-RETROFIT-READER-W is designed for use with the UniFi Retrofit Hub. Ubiquiti specifies that Retrofit Readers can be used with existing RS-485 wiring from previous Wiegand or OSDP installations when connected through the UniFi Retrofit Hub.
Access management is provided through the UniFi Access platform. Supported authentication methods include NFC cards and keyfobs, Touch Pass, Apple and Google Wallet, and mobile unlock.
Applications
- Existing access-control installations requiring reader replacement
- UniFi Retrofit Hub deployments using existing RS-485 cabling
- Indoor and outdoor door access points
- Access control installations requiring NFC credentials and mobile access
- OSDP-based access reader deployments
Key Features
- OSDP v2 communication over RS-485
- NFC card and keyfob access with 13.56 MHz NFC
- Touch Pass, Apple/Google Wallet and mobile unlock support
- IP55 weatherproofing for indoor and outdoor use
- 12V DC operation with maximum 2.5W power consumption
DC Supplies Product Note
For retrofit installations, verify that the existing reader wiring is suitable for the RS-485 connection required by the UA-RETROFIT-READER-W and that the reader is connected to a compatible UniFi Retrofit Hub. The reader requires 12V DC power through the access-control installation.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UA-RETROFIT-READER-W |
| Product Type | UniFi Retrofit Reader |
| Color | White |
| Management Application | UniFi Access |
| Communication | RS-485, BLE 4.1, NFC |
| Security Protocol | OSDP v2 |
| Power Method | 12V DC |
| Maximum Power Consumption | 2.5W |
| Supported Voltage | 12V DC |
| NFC Frequency | 13.56 MHz |
| NFC Read Range | < 30 mm (1.18 in) |
| NFC Technologies | ISO 14443A, ISO 14443B, ISO 15693, NFC Tag 1–5, MIFARE Classic, MIFARE Plus, MIFARE Ultralight, MIFARE DESFire |
| Access Methods | NFC Card & Keyfob, Touch Pass, Apple/Google Wallet, Mobile Unlock |
| Weatherproofing | IP55 |
| Indoor/Outdoor Use | Yes |
| Mounting | Wall, gang-box mount; optional junction box |
| Dimensions | 117 × 45 × 13.3 mm (4.6 × 1.8 × 0.5 in) |
| Weight | 82 g (2.9 oz) |
| Enclosure Material | Polycarbonate, aluminum alloy |
| Mount Material | Stainless steel |
| ESD/EMP Protection | Air: ±15 kV; Contact: ±8 kV |
| Operating Temperature | -30 to 50°C (-22 to 122°F) |
| Certifications | CE, FCC, IC |
| NDAA Compliant | Yes |
FAQs
What is the UA-RETROFIT-READER-W?
It is a white UniFi Retrofit Reader for indoor and outdoor access control installations using OSDP over RS-485.
Does the reader work with existing access-control wiring?
Yes. Ubiquiti designed the Retrofit Reader for use with the UniFi Retrofit Hub, which can use existing RS-485 wiring from previous Wiegand or OSDP installations.
What access methods are supported?
The reader supports NFC cards and keyfobs, Touch Pass, Apple and Google Wallet, and mobile unlock through UniFi Access.
Can the reader be installed outdoors?
Yes. The reader is specified for indoor and outdoor use and has an IP55 weatherproofing rating.
What power does the Retrofit Reader require?
The reader operates from 12V DC and has a maximum power consumption of 2.5W.
