Detailed Specifications

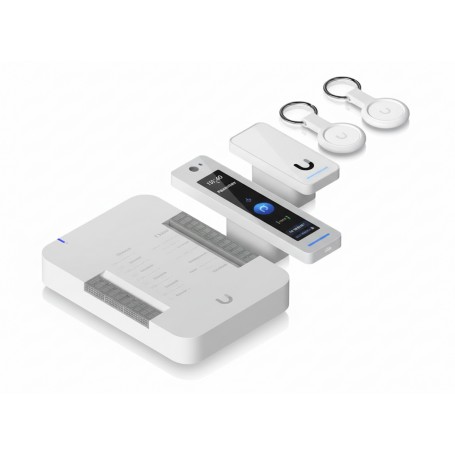

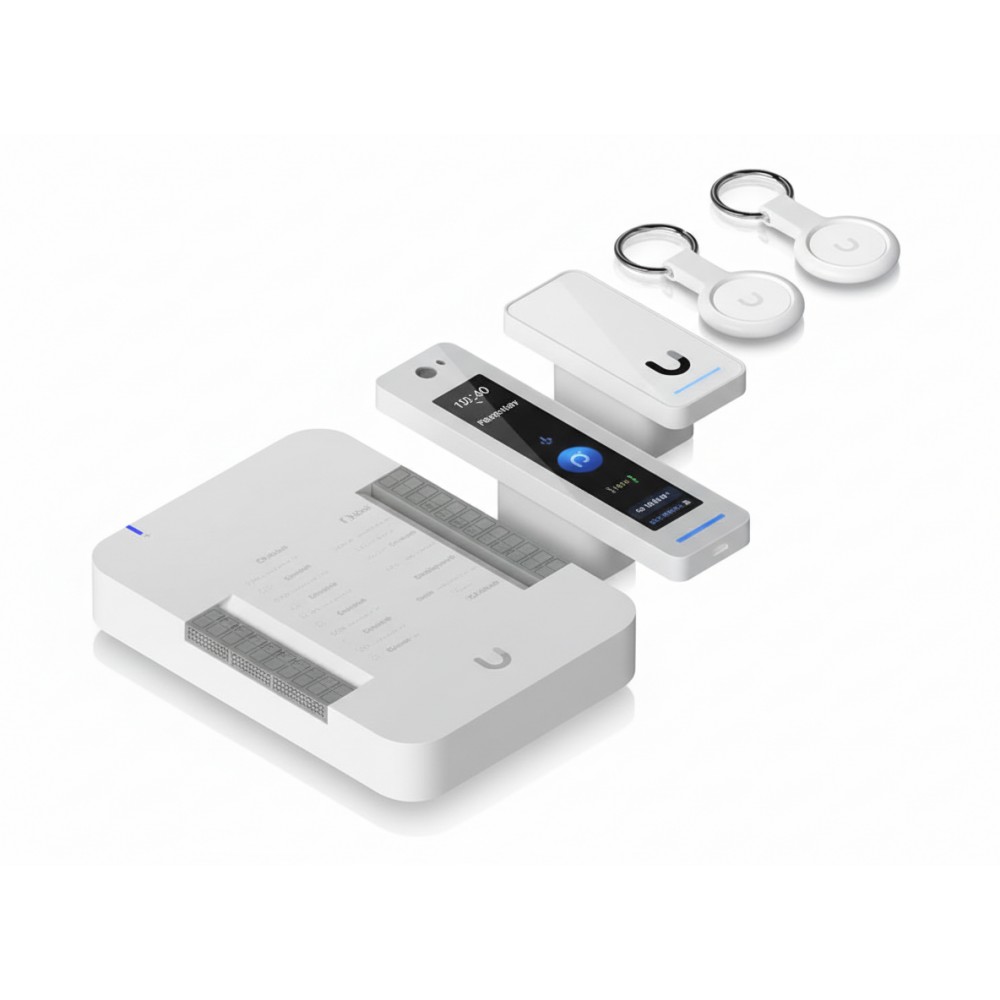

Ubiquiti UA-G3-SK UniFi Access G3 Starter Kit
Overview
The Ubiquiti UA-G3-SK is an all-in-one access control starter kit designed to secure a single door with UniFi Access infrastructure. It bundles a Door Hub Mini controller, a G3 Reader with NFC/Bluetooth support, and two RFID keyfobs for credential-based access. The kit uses PoE++ power for hub and PoE for reader, supports NFC/MIFARE standards and Apple/Google Touch Pass mobile credentials, and manages user access centrally through UniFi Access software. It is suitable for small commercial, office, or enterprise entry points requiring controlled access and simple installation.
Key Features
• Complete single-door access control kit
• NFC & Bluetooth reader with Touch Pass
• PoE++ powered hub with GbE ports
• Includes two RFID keyfobs
Technical Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number | UA-G3-SK |
| Product Type | UniFi Access Starter Kit |
| Hub Interfaces | (3) GbE RJ45 |
| Hub Power Method | PoE++ (50 V DC, 1 A) |
| Hub PoE Outputs | (2) PoE, total ~31 W |
| Hub Power Consumption | 19 W (no PoE), 50 W (with PoE) |
| Hub Dimensions | 113 × 66 × 27.6 mm |
| Hub Weight | 190 g |
| Reader Interface | (1) 10/100 Mb/s RJ45 |
| Reader Power Method | PoE (48 V DC), max 5 W |
| Reader Weather Rating | IP55 |
| Reader Connectivity | Bluetooth 4.1, NFC (13.56 MHz) |
| Reader Dimensions | 93 × 40 × 36.5 mm |
| Keyfobs Included | 2 × NFC RFID |
| Operating Temp (Reader) | −30 °C to 45 °C |
| Operating Humidity | 5 % to 90 % non-condensing |
