Detailed Specifications

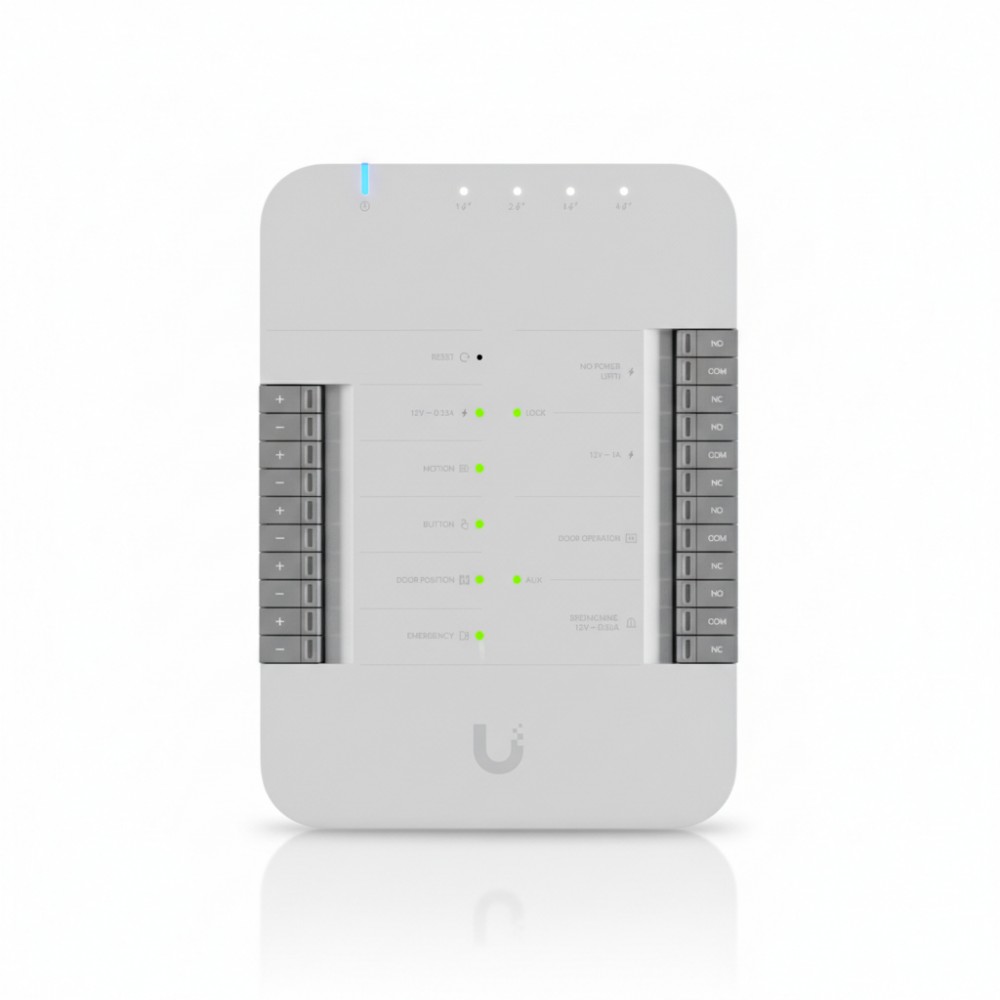

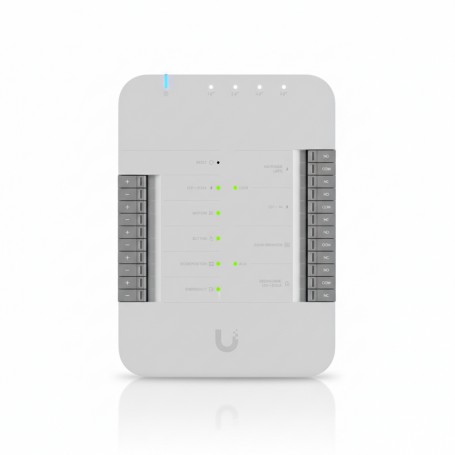

Ubiquiti UA-HUB-DOOR UniFi Access Door Controller
Overview
The Ubiquiti UA-HUB-DOOR is a single-door access control hub that provides entry and exit control when paired with UniFi Access readers and peripherals. It includes multiple inputs and relays for locks, sensors, and auxiliary devices, and delivers network connectivity via Gigabit Ethernet with PoE++ power. The hub supports integration with UniFi Access software for centralized policy and credential management. This controller is intended for indoor access control installations in commercial, enterprise, and secured facility environments.
Key Features
• PoE++ powered with four PoE outputs
• (5) 10/100/1000 Base-T ports
• Multiple lock & auxiliary relays
• Four sensor input terminals
Technical Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number | UA-HUB-DOOR |
| Product Type | Access Control Door Hub |
| Networking | (5) 10/100/1000 Base-T |
| Power Method | PoE++ (802.3bt) |
| Max Power Consumption | 50 W with PoE outputs |
| PoE Input | 50 V DC, 1 A |
| PoE Outputs | (4) PoE, 50 V DC, up to 15.4 W per port, 28 W aggregated |
| Digital Inputs | Request to exit/enter, remote release, door position, emergency |
| Dry Output Relays | Lock: 30 V DC, 1 A; Aux: 30 V DC, 1 A |
| Powered Output Relays | Lock: 12 V DC, 1 A; Aux: 12 V DC, 0.33 A |
| LEDs | White/blue status indicators |
| Reset Button | Factory reset |
| Enclosure | Polycarbonate |
| Mounting | DIN-rail included |
| Dimensions | 174.9 × 126 × 32.9 mm |
| Weight | 363 g |
| Operating Temp | 0-40 °C |
| Operating Humidity | 5-95 % non-condensing |
