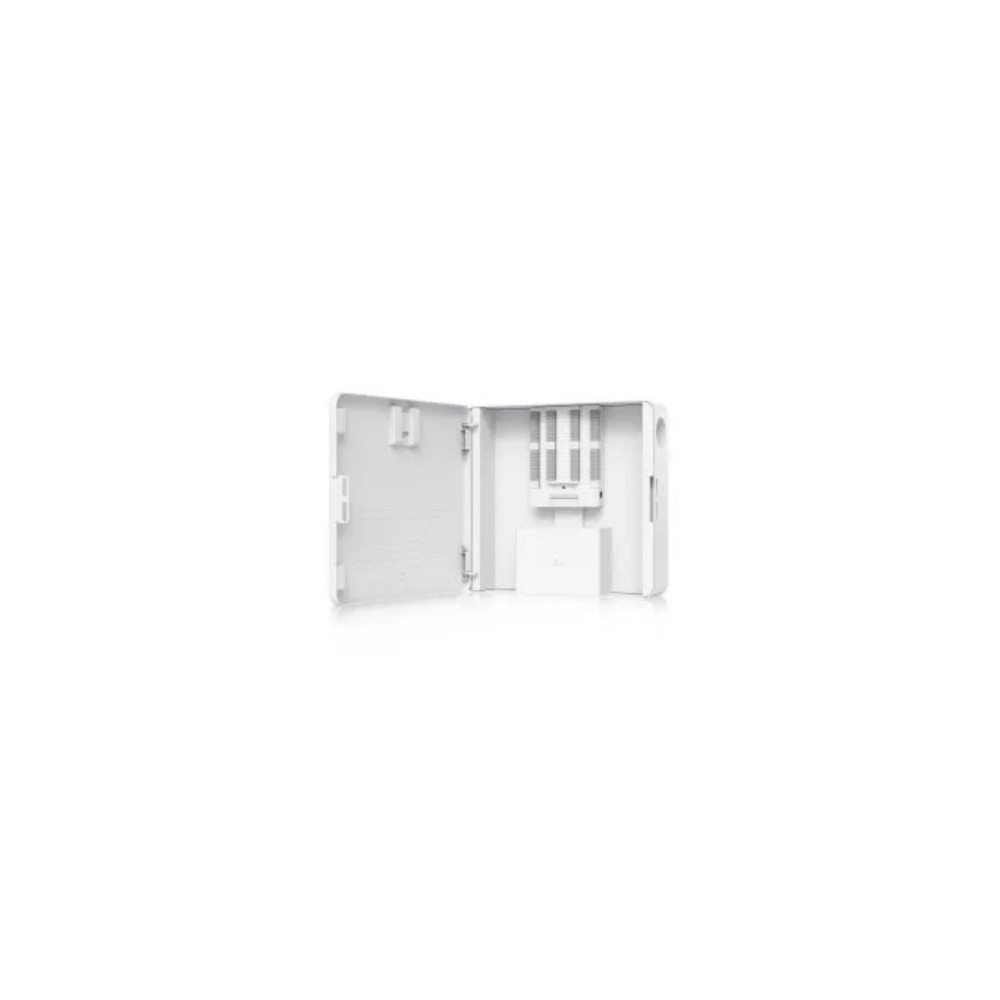

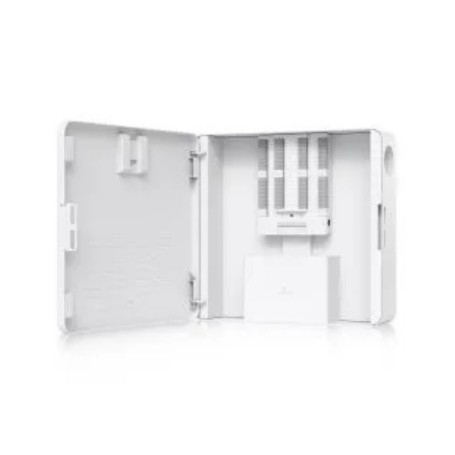

Overview
The Ubiquiti UP-AlarmHub-Kit is a UniFi Protect alarm control hub designed for hardwired intrusion sensors. It provides 32 alarm sensor inputs plus one emergency input, with PoE++ or PoE+++ power and support for a 12V SLA backup battery.
Hardwired Alarm Inputs
The hub provides 32 inputs for alarm sensors and one dedicated emergency input. The alarm sensor inputs support end-of-line resistors from 1–5.6kΩ, with a 1kΩ resistor specified by Ubiquiti as included.
Power and Connectivity
UP-AlarmHub-Kit accepts PoE++ or PoE+++ through its RJ45 PoE input. The PoE interface supports 54V DC with 60W/90W input capability, while a PoE+ output provides 54V DC at up to 30W. A 12V SLA backup battery can also be used, with battery charging specified at 12V and 0.3A.
Relay and Auxiliary Outputs
Two configurable wet/dry relay outputs are provided. In wet mode, the relays support 12V DC at 1A; in dry mode, they support 30V DC at 1A. Auxiliary power is available for sensors through six 12V DC, 1A outputs arranged as three on the right side and three on the left side.
Key Features
- 32 hardwired alarm sensor inputs plus one emergency input
- PoE++/PoE+++ input with 12V SLA battery backup support
- Two wet/dry relay outputs
- Six 12V DC auxiliary sensor power outputs
- Wall-mount enclosure with SGCC steel housing and polycarbonate cover
Applications
UP-AlarmHub-Kit is suited to UniFi Protect installations that use hardwired intrusion sensors and require a centralized alarm control hub. Its 32 sensor inputs can accommodate larger wired alarm deployments, while relay and auxiliary outputs provide connections for supported alarm-system peripherals.
DC Supplies Product Note
The UP-AlarmHub-Kit is specifically intended for hardwired alarm-system integration rather than wireless sensor connectivity. When planning an installation, account for the required PoE++/PoE+++ power source, UniFi Protect application requirements, and any 12V SLA backup battery used for the installation.
Specifications
| Brand | Ubiquiti |
|---|
| Part Number / MPN | UP-AlarmHub-Kit |
|---|
| Product Type | Alarm Hub Kit |
|---|
| Application | UniFi Protect |
|---|
| Alarm Sensor Inputs | 32 |
|---|
| Emergency Input | 1 |
|---|
| Digital Input Compatibility | EOL resistors 1–5.6kΩ; 1kΩ included |
|---|
| Output Relays | 2 wet/dry |
|---|
| Wet Relay Output | 12V DC, 1A |
|---|
| Dry Relay Output | 30V DC, 1A |
|---|
| Auxiliary Power Outputs | 6 total; 3 per side |
|---|
| Auxiliary Power | 12V DC, 1A |
|---|
| Networking Interface | 1 x 10/100 MbE RJ45 |
|---|
| PoE Input | 1 x PoE++/PoE+++; 54V DC, 60W/90W |
|---|
| PoE Output | 1 x PoE+; 54V DC, 30W |
|---|
| Power Method | PoE++/PoE+++/12V SLA battery |
|---|
| Maximum Power Consumption | 90W |
|---|
| Backup Battery | 12V SLA |
|---|
| Battery Charge | 12V, 0.3A |
|---|
| Dimensions | 379 x 355 x 105 mm |
|---|
| Device Weight | 8.3 kg |
|---|
| Mount Weight | 624 g |
|---|
| Enclosure Material | SGCC steel housing with polycarbonate cover |
|---|
| Mount Material | SGCC steel |
|---|
| Mounting | Wall |
|---|
| Operating Environment | Indoor only |
|---|
| Operating Temperature | -10 to 40°C |
|---|
| Operating Humidity | 5 to 95% noncondensing |
|---|
| Certifications | CE, FCC, IC |
|---|
| NDAA Compliant | Yes |
|---|
| UniFi Protect Requirement | Version 7.0.88 or later |
|---|
FAQs
How many wired alarm sensors can the UP-AlarmHub-Kit support?
It provides 32 alarm sensor inputs plus one separate emergency input.
What power options does the UP-AlarmHub-Kit support?
The hub supports PoE++ or PoE+++ input and can also use a 12V SLA battery for backup power.
Does the hub provide relay outputs?
Yes. It has two wet/dry relay outputs supporting 12V DC at 1A in wet mode or 30V DC at 1A in dry mode.
Can the hub provide power to connected sensors?
Yes. Six auxiliary 12V DC, 1A outputs are provided for sensors, arranged as three outputs on each side.
What software is required?
The UP-AlarmHub-Kit requires UniFi Protect version 7.0.88 or later, with supported UniFi Protect mobile applications also specified by Ubiquiti.
