Overview

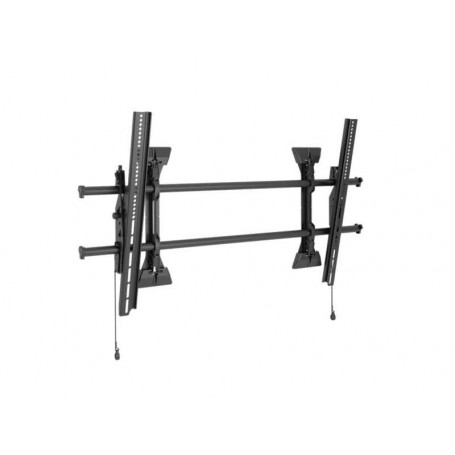

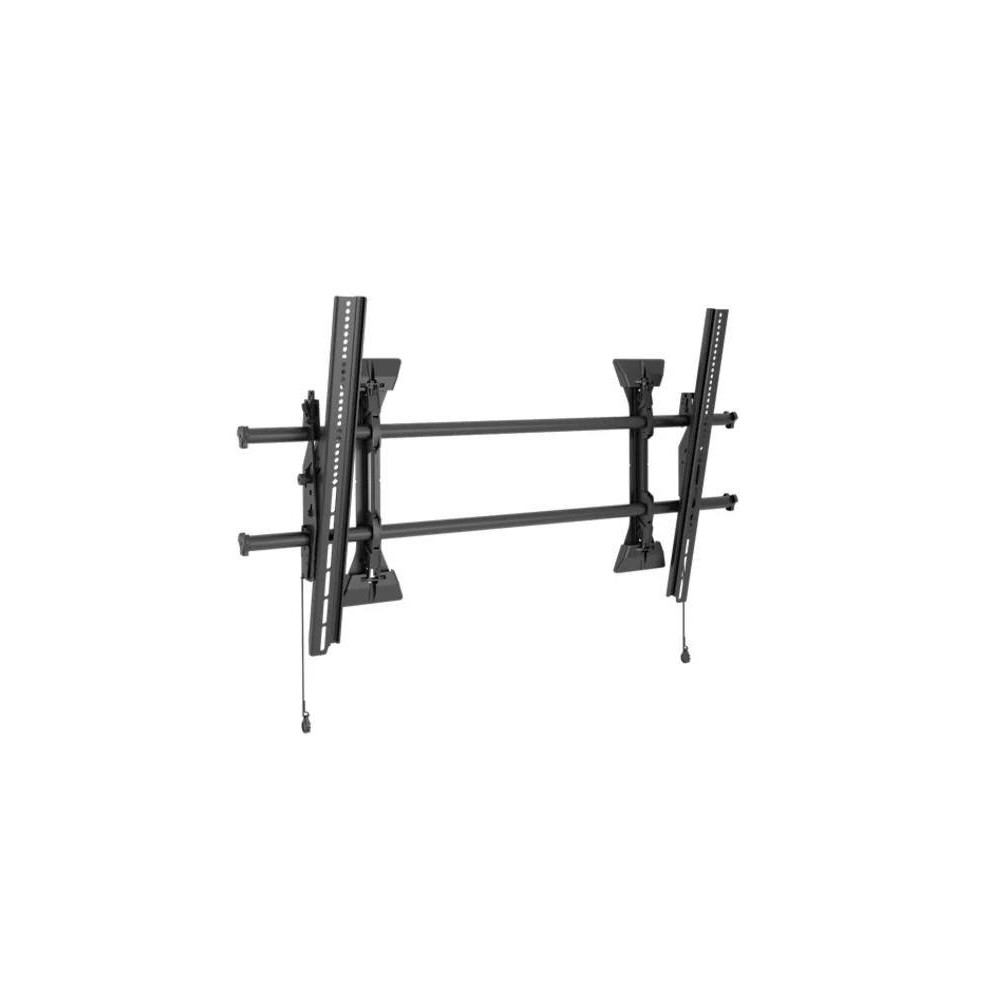

The Chief XTM1U Fusion Extra-Large Micro-Adjustable Tilt Wall Mount is designed for large flat-panel displays in commercial AV, education, conference rooms, and digital signage installations. It supports compatible displays ranging from 55 to 100 inches and provides adjustable tilt, lateral positioning, and leveling for accurate installation.
Key Features
- Supports compatible displays weighing up to 250 lbs (113.4 kg).
- Designed for typical screen sizes from 55 to 100 inches.
- Micro-adjustable tilt from +5° to -12°.
- Provides lateral shift and leveling adjustments for display alignment.
- Supports a wide range of VESA mounting patterns from 100 × 100 mm to 1070 × 600 mm.
Display Adjustment
The Fusion mounting system allows installers to adjust display position after mounting. Its tilt mechanism helps optimize viewing angles, while lateral shift and micro-adjustment features support accurate alignment in multi-display and commercial AV environments.
Installation and Compatibility
The XTM1U is a wall-mounted solution for compatible large-format flat-panel displays. It accommodates wall stud spacing from approximately 24 to 42 inches and supports compatible VESA mounting patterns. Confirm display weight, mounting-hole spacing, wall construction, and required fasteners before installation.
Applications
- Corporate meeting rooms and conference spaces.
- Educational classrooms and lecture facilities.
- Commercial digital signage.
- Hospitality and transportation display installations.
- Large-screen AV systems.
DC Supplies Product Note
Before ordering, verify the display's weight and VESA pattern, wall stud spacing, mounting surface strength, and clearance requirements. The wall structure and fasteners must be suitable for the complete installed load.
Specifications
| Brand | Chief |
|---|
| Part Number / MPN | XTM1U |
|---|
| Product Type | Adjustable Tilt Wall Mount |
|---|
| Product Series | Fusion |
|---|
| Mounting Location | Wall |
|---|
| Typical Display Size | 55–100 inches |
|---|
| Maximum Weight Capacity | 250 lbs (113.4 kg) |
|---|
| Tilt Range | +5° / -12° |
|---|
| Adjustment Features | Micro-adjustment, lateral shift, leveling, tilt |
|---|
| VESA Compatibility | 100 × 100 mm to 1070 × 600 mm |
|---|
| Wall Stud Spacing | 24–42 inches |
|---|
| Overall Dimensions | 42.75 × 24.5 × 2.5 inches (W × H × D) |
|---|
| Color | Black |
|---|
| Display Orientation | Landscape |
|---|
Frequently Asked Questions
What display size does the Chief XTM1U support?
It is designed for compatible displays typically measuring 55 to 100 inches.
What is the maximum supported display weight?
The mount has a maximum rated weight capacity of 250 lbs (113.4 kg).
Can the display angle be adjusted?
Yes. The mount provides a tilt range of +5° to -12°.
Which VESA patterns are supported?
It supports compatible mounting patterns ranging from 100 × 100 mm to 1070 × 600 mm.
Where can this mount be used?
Typical applications include conference rooms, classrooms, hospitality facilities, transportation environments, and digital signage installations.
