Overview

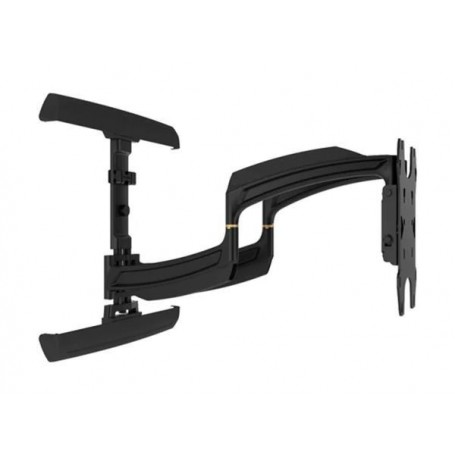

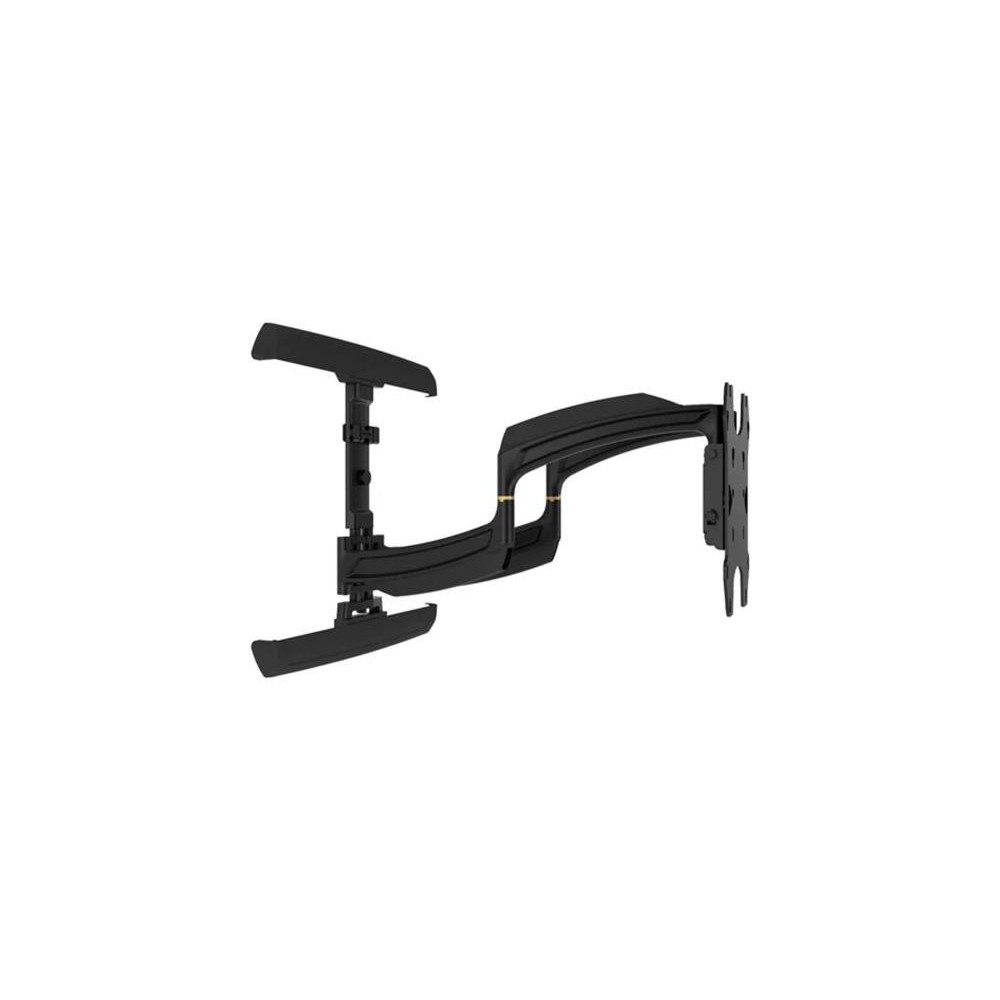

The Chief TS525TU Thinstall is a full-motion wall mount designed for compatible flat-panel displays. Its dual swing-arm mechanism allows the display to extend away from the wall, swivel toward different viewing positions, and tilt for improved viewing angles. The low-profile design keeps the display close to the wall when retracted.
Movement and Positioning
The mount extends up to 25 inches (635 mm) from the wall. Centris tilt technology provides up to 15 degrees of tilt, while the swing-arm design supports lateral repositioning. Centerless lateral shift allows up to 16 inches (406 mm) of adjustment after installation, and post-installation height adjustment provides 1 inch (25 mm) of positioning flexibility.
Installation and Cable Management
The mounting system includes a wall rail and display interface components. Integrated cable management uses enclosed covers to organize power and signal cables along the mount. The open wall-plate design provides access during installation and connection.
Key Features
- Full-motion dual swing arm with up to 25 inches of extension.
- Centris tilt adjustment of up to 15 degrees.
- Up to 16 inches of post-installation lateral shift.
- Low-profile retracted depth of approximately 1.5 inches.
- Integrated cable management with enclosed covers.
Applications
The TS525TU is intended for wall-mounted flat-panel displays in residential, commercial, and professional AV environments. Its adjustable reach supports installations where the screen needs to be repositioned for different viewing locations or moved closer to the wall when not in use.
DC Supplies Product Note
Check the display's weight, mounting-hole pattern, screen dimensions, and the wall structure before ordering. The mount's maximum load capacity is 125 lb, but the wall and fasteners must also be suitable for the installed load. Confirm the correct model-specific display-size guidance, as listings for TS525TU can differ by market or revision.
Specifications
| Specification | Details |
|---|
| Brand | Chief |
| Part Number / MPN | TS525TU |
| Product Type | Full-motion display wall mount |
| Product Line | Thinstall |
| Mounting Type | Wall mount |
| Display Type | Compatible flat-panel displays |
| Maximum Load Capacity | 125 lb (56.7 kg) |
| Screen Size Range | 37–58 inches in the referenced product listing; verify the applicable regional specification |
| Maximum Extension | 25 inches (635 mm) |
| Minimum Profile Depth | 1.5 inches (38 mm), approximate |
| Tilt Adjustment | Up to ±15° |
| Pivot | Up to ±90°, depending on display width and installation |
| Post-Installation Lateral Shift | Up to 16 inches (406 mm) |
| Post-Installation Height Adjustment | 1 inch (25 mm) |
| VESA Mounting Pattern | 100 × 100 mm to 800 × 400 mm |
| Cable Management | Integrated cable covers |
| Color | Black |
| Certifications | UL Listed; OSHPD approval reported in distributor specifications |
| Manufacturer | Chief, a Legrand brand |
| UPC | 841872147307 (listed by AV distributor) |
Frequently Asked Questions
How far can the TS525TU extend from the wall?
The swing arm extends up to 25 inches (635 mm), allowing the display to be moved away from its retracted position.
Can the display be tilted and swivelled?
Yes. The mount supports tilt and pivot movement. The available pivot angle depends on the display's width and the installation configuration.
How do I confirm display compatibility?
Check the display's weight, VESA mounting pattern, physical dimensions, and the applicable TS525TU specification sheet. The display must remain within the mount's load capacity and supported mounting range.
Does the mount include cable management?
Yes. The design incorporates cable covers for routing power and signal cables along the mounting assembly.
Can it be installed on any wall?
No. The wall construction, stud spacing, mounting hardware, and installed load must be suitable for the display and mount. Follow the manufacturer's installation instructions and use appropriate structural attachment points.
