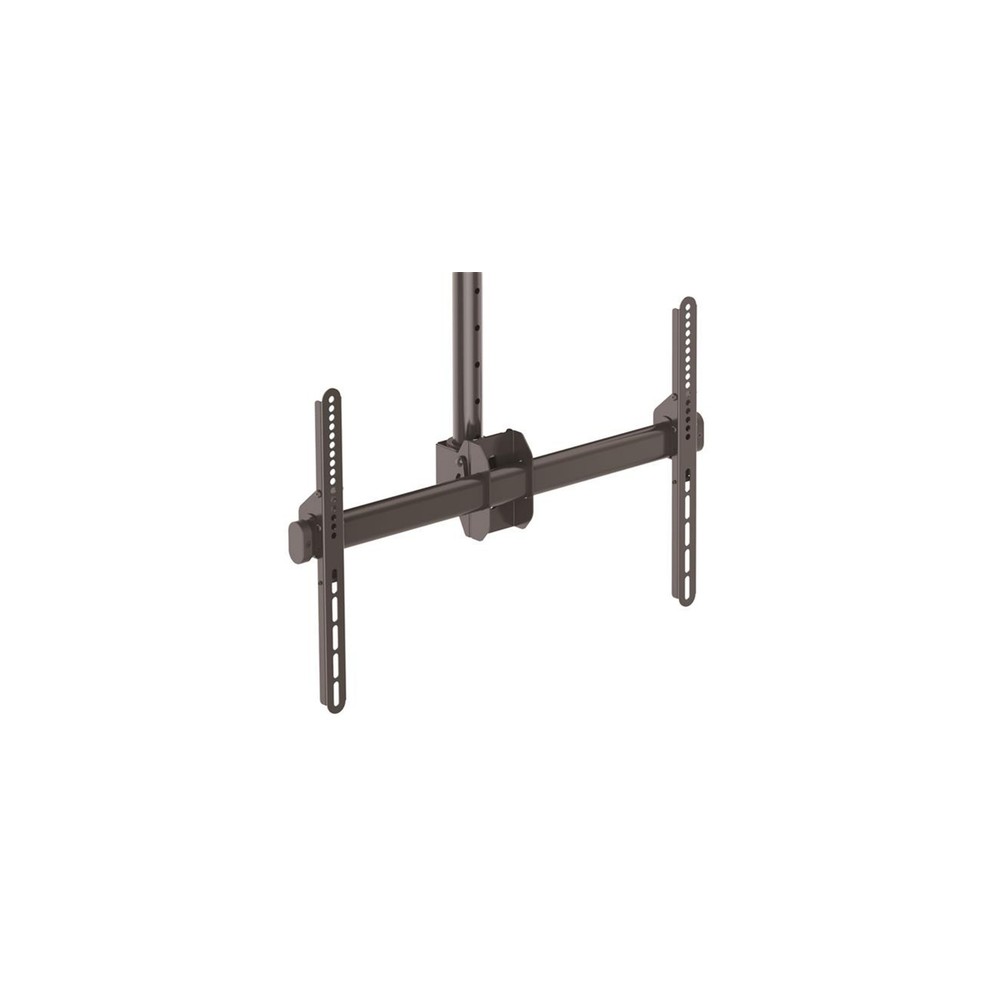

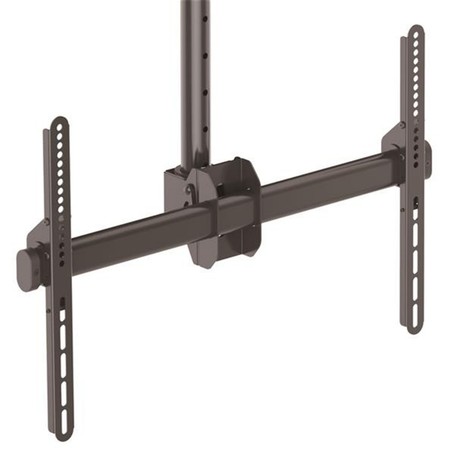

StarTech FPCEILPTBSP Portrait Ceiling TV Mount

StarTech FPCEILPTBSP Portrait Ceiling TV Mount

Overview

The StarTech FPCEILPTBSP is a specialized professional ceiling mount designed specifically for displaying televisions and digital signage in portrait orientation. This heavy-duty hardware solution is ideal for high-visibility environments such as transportation hubs, retail storefronts, and hospitality venues where vertical content×such as menus, flight schedules, or promotional advertisements×is required to maximize visual impact in narrow or high-traffic spaces.

Constructed from robust steel, this mount supports displays from 40 inches to 55 inches with a weight capacity of up to 110 lbs (50 kg). The telescopic pole allows for precise height adjustment, extending from 2.5 feet to 3.5 feet (77.8 cm to 107.8 cm) from the ceiling, ensuring the screen is positioned at the optimal viewing level for the target audience. The mount is designed to accommodate various ceiling types, featuring a swivel base that can be adjusted +/- 60 degrees to align with the room's layout.

The FPCEILPTBSP offers advanced positioning features, including a tool-less tilt adjustment of -15° to +5°, allowing administrators to angle the display to eliminate glare from overhead lighting. To maintain a professional and clean appearance, the telescopic pole includes integrated cable management channels that hide power and data cables from public view. This mount is VESA compliant and engineered for 24/7 reliability in demanding commercial applications.

Key Features

• Dedicated portrait orientation design for optimized vertical digital signage

• Telescopic pole provides flexible height adjustment from 2.5' to 3.5'

• Supports large-format displays from 40" to 55" and up to 110 lbs

• Integrated cable management keeps power and HDMI cords organized and hidden

• +5° / -15° tilt and +/- 60° swivel for customized viewing angles

Specifications
