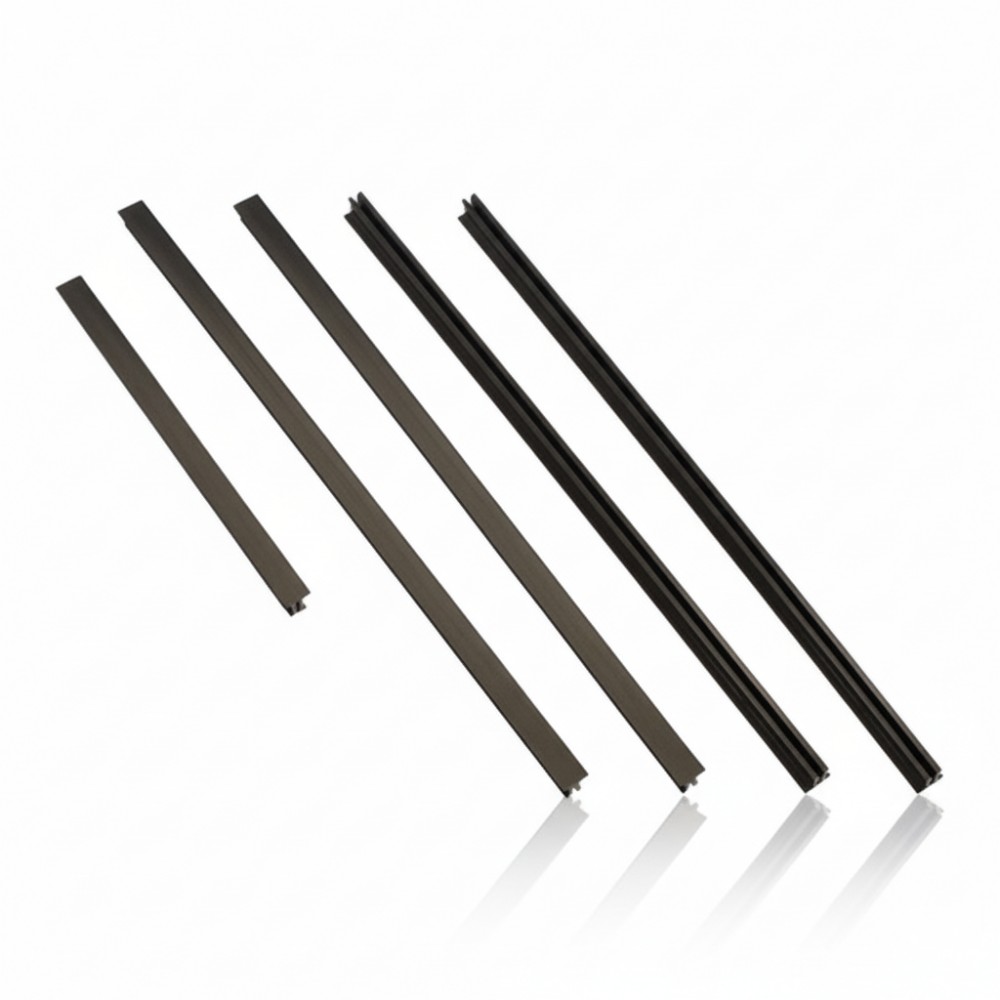

The APC AR7600 is a toolless baying trim accessory designed for data-center and server-room rack deployments. It is used by IT infrastructure engineers and facilities teams to close the vertical gap between adjacent APC NetShelter SX racks installed side by side on 24 in (609 mm) centers, addressing alignment and exposure issues when racks are bayed together.
This baying kit spans the full installed height of common tall cabinets (42 U and 48 U), matching standard enclosure dimensions and providing a continuous exterior surface that improves environmental control around mounted equipment.
It fits within the rack mounting ecosystem without requiring tools for installation, enabling retrofit or post-installation adjustment without interrupting rack-mounted equipment.
The accessory does not include electrical or mechanical features beyond its structural trim function; its relevance is in physical infrastructure consistency and minimizing exposed edges that can snag cabling or disrupt airflow patterns.
In practical deployments, AR7600 is typically applied in multi-bay high-density rack banks where aesthetic continuity and partial dust intrusion control are priorities. It should not be used in non-standard rack configurations or with non-NetShelter SX enclosures where dimensions and mounting points differ
• Tool-free installation for quick bay integration
• Full height cover for 42U and 48U rack profiles
• Fills gap on 24 in (609 mm) rack center spacing
• Black finish matches NetShelter SX enclosure color
• RoHS compliant structural accessory only
| Specification | Detail |
|---|---|
| Brand | APC by Schneider Electric |
| Part Number | AR7600 |
| Product Type | Baying Trim Kit |
| Compatible Enclosures | NetShelter SX 42U and 48U racks |
| Installation Method | Tool-free snap-in trim |
| Height | 84.49 in (2146 mm) |
| Width | 0.75 in (19 mm) |
| Depth | 0.63 in (16 mm) |
| Net Weight | ~0.55 lb (0.25 kg) |
| Color | Black |
| Finish | Powder-coated steel |
| Warranty | 2 years repair or replace |
| Environmental Compliance | RoHS compliant |
| Included in Kit | Baying trim panels + installation guide |
