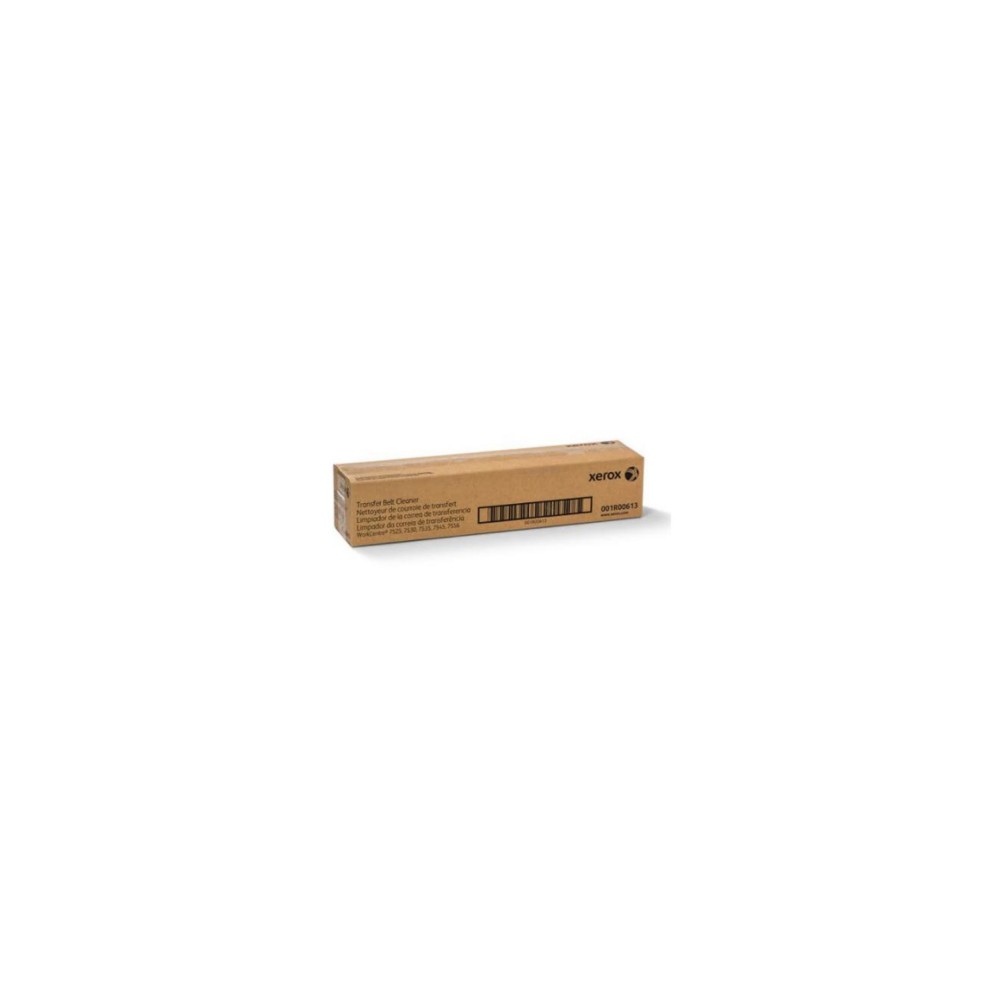

Xerox 001R00613 – Original Transfer Belt Cleaner Assembly

Overview :

Xerox 001R00613 is a genuine OEM routine maintenance item designed to preserve optimal color registration and image sharpness across medium-to-high-volume color multi-function systems. Handled by IT infrastructure coordinators, field service technicians, and print production operators, this assembly sweeps residual toner particles and airborne paper dust off the intermediate transfer belt (IBT) surface after each cycle. It acts as a primary resolution component against critical processing errors like scattered color speckles, back-page background shading, light image smudges, or persistent vertical streaks across print runs.

Technically, this maintenance unit houses a precision-calibrated squeegee cleaning blade mechanism that maintains uniform tension against the transfer belt web without scarring or fatiguing the film substrate. It delivers an extensive corporate operational lifecycle rated for approximately 160,000 standard page impressions under baseline testing standards. The self-contained modular enclosure isolates recovered toner waste powder internally to avoid tracking dirt inside the print engine frame or contaminating the primary optical charging steps.

This critical service component is heavily deployed in enterprise centralized department pools, graphic layout rooms, corporate multi-function hubs, and high-volume school print nodes. It features explicit physical, structural, and electronic alignment constraints engineered for exclusive use inside the Xerox AltaLink C8000 Series (C8030, C8035, C8045, C8055, C8070) and legacy WorkCentre families including the 7500, 7800, 7800i, and 7900 lines (such as 7525, 7545, 7835, 7855, and 7970). It must not be forced into alternative monochrome multi-function frames or compact desktop engines, as tracking rails, physical frame lengths, and power take-off gear alignments are entirely platform-dependent.

Key Features :

• Precision cleaning blade effectively scraps off stray micro-toner from the belt.

• Heavy-duty industrial rating yields up to 160,000 pages before system expiration.

• Prevents cross-color shadow tracking and background gray fogging across continuous queues.

• Enclosed waste housing prevents hazardous powder spills during service swaps.

• Drop-in structural channel allows immediate, tool-free installation in the field.

Specifications :
