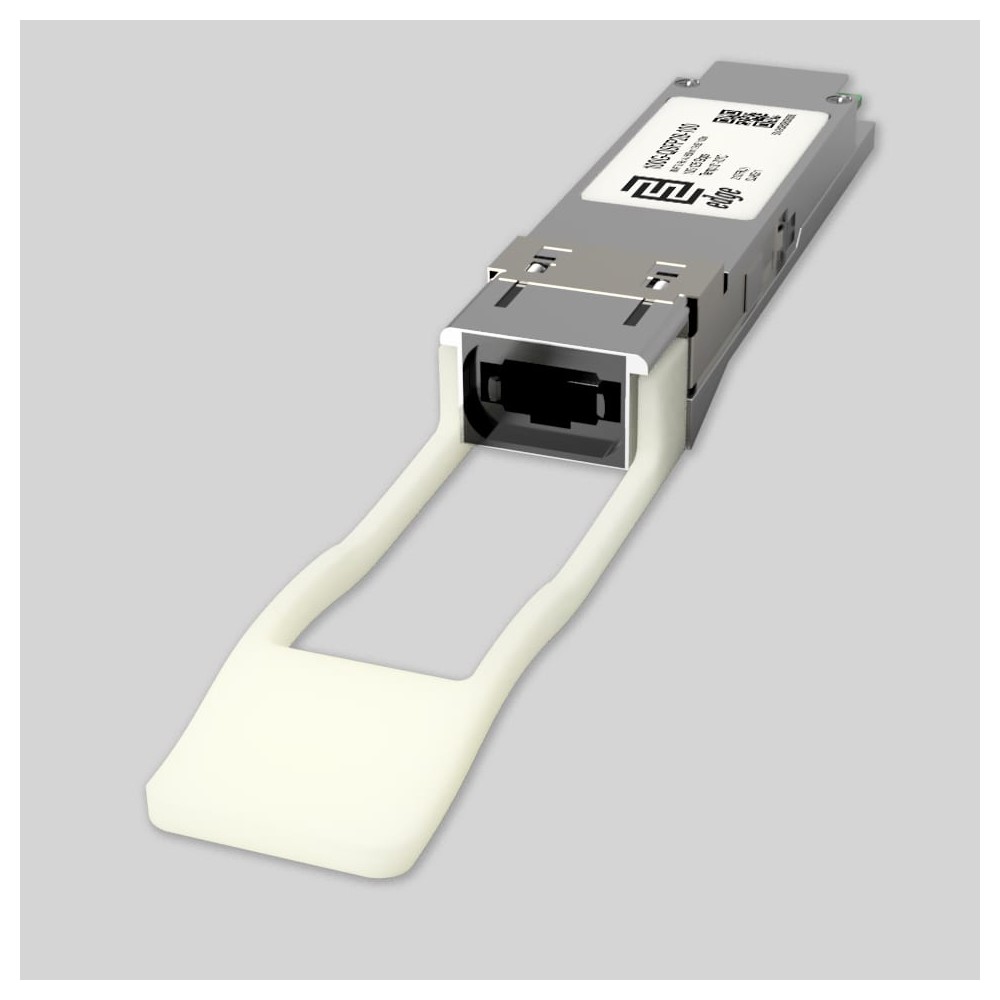

Ruckus Wireless E100G-QSFP28-SR4 100GBE QSFP28 Transceiver Module View larger

Ruckus E100G-QSFP28-SR4 100G QSFP28 SR4 Optical Transceiver

New

In Stock

High-Performance 100 Gigabit Short-Range Optical Module
×




$2,097.20

  • New

Detailed Specifications

Ruckus E100G-QSFP28-SR4

100G QSFP28 SR4 Optical Transceiver

The Ruckus E100G-QSFP28-SR4 is a high-speed, short-reach 100GbE transceiver designed to provide scalable bandwidth and reliable performance in data centers, cloud environments, and enterprise aggregation networks. Featuring QSFP28form factor and MPO-12 connectivity, it delivers cost-effective, low-latency 100GbE links over multimode fiber.

Expanded Overview :

Using parallel optics technology, the E100G-QSFP28-SR4 transmits and receives data across 4 x 25Gbps transmit lanes and 4 x 25Gbps receive lanes to achieve 100Gbps full-duplex performance. It supports 100 meters of reach over OM4 multimode fiber or up to 70 meters on OM3, providing flexible options for intra-data center or campus aggregation deployments.

Designed for dense, high-performance top-of-rack (ToR), spine-leaf, and aggregation layer implementations, this SR4 module integrates seamlessly into modern network designs while maintaining energy efficiency and compact footprint. With its MPO-12 connector, it simplifies structured cabling deployments for large-scale high-speed environments.

Product Highlights

  • 100GbE QSFP28short-reach optical transceiver
  • Compliant with 100GBase-SR4 standards
  • MPO-12 connector interface
  • Supports 100m over OM4 and 70m over OM3 MMF
  • 4x25Gbps Tx / 4x25Gbps Rx parallel-lane design
  • Low-latency, energy-efficient connectivity
  • Ideal for data centers, aggregation, and high-performance enterprise networks

Reliability & Performance :

Built to Ruckus enterprise-grade standards, the E100G-QSFP28-SR4 ensures consistent high throughput and low latency for mission-critical applications such as high-volume enterprise traffic, HPC workloads, and cloud computing. By leveraging parallel optics in a compact QSFP28footprint, it delivers high-density 100G connectivity with reduced power consumption, making it well-suited for cost-effective scale-out deployments.

Key Features :

  • QSFP28optical transceiver for 100GbE connectivity
  • Compliant with IEEE 802.3ba 100GBase-SR4
  • Parallel optics — 4x25Gbps Tx / 4x25Gbps Rx
  • MPO-12 connector interface
  • Maximum reach: 100m (OM4 MMF) / 70m (OM3 MMF)
  • Supports short-reach, low-latency, high-bandwidth operations
  • Optimized for ToR, spine-leaf, and aggregation designs
  • Compatible with Ruckus ICX and standard 100G platforms

Technical Specifications :

SpecificationDetails
Model Ruckus E100G-QSFP28-SR4
Form Factor QSFP28
Connector Type MPO-12
Transmission Standard 100GBase-SR4 (Short Range)
Lane Structure 4 Tx / 4 Rx, 25Gbps each (100Gbps aggregate)
Max Data Rate 100Gbps full duplex
Max Distance 100m (OM4) / 70m (OM3)
Fiber Type Multimode Fiber (MMF)
Applications Data centers, enterprise core, spine-leaf, cloud networks
Compatibility Ruckus ICX switches & standards-compliant QSFP28platforms
