Detailed Specifications

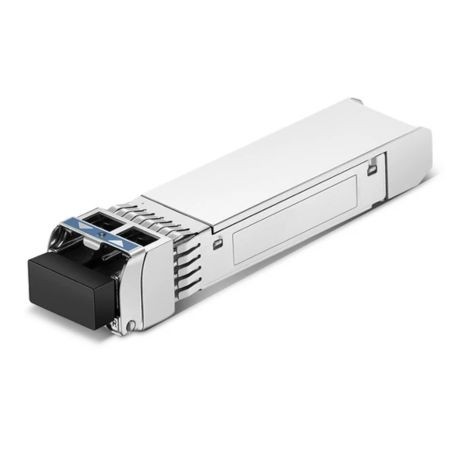

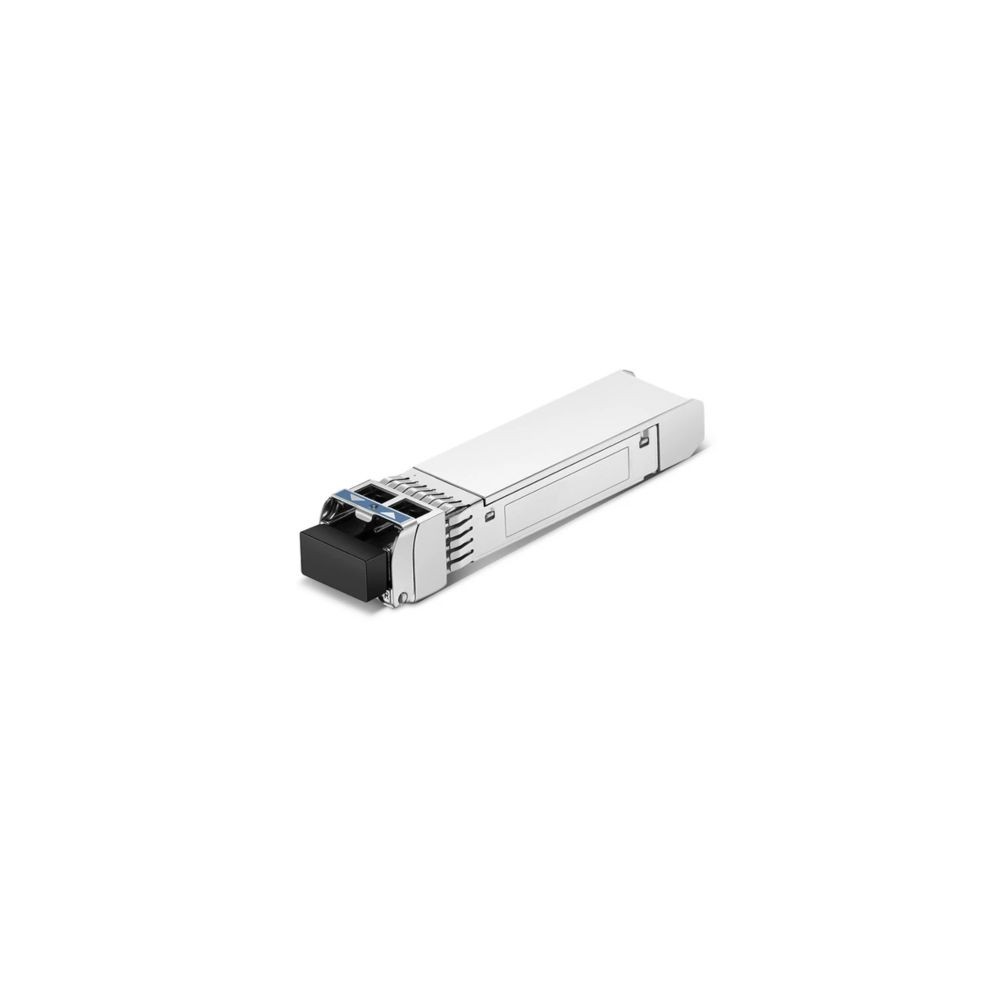

10G-SFPP-SR-S 10Gbps Multimode Fiber SFP+ Transceiver
Overview
The 10G-SFPP-SR-S is a 10 Gbps small form-factor pluggable (SFP+) optical transceiver designed for short-range multimode-fiber (MMF) links in data-centres, aggregation switches, and campus networks. It supports up to 10 Gbps Ethernet (and compatible with 1G/10G dual-rate ports) and uses an 850 nm VCSEL laser transmitter, making it ideal for inter-rack or intra-data-hall fibre runs on OM3/OM4 multimode fibre. According to the datasheet the module supports link lengths up to approximately 300 m on OM3 and up to 400 m on OM4.The module is hot-swappable, supports LC duplex connector interface, Digital Optical Monitoring (DOM) for real-time diagnostics of optical power/temperature/voltage, and adheres to the SFF-8432/8472 MSA standard for SFP+ form factors1 Its low-power consumption and compact SFP+ footprint make it a flexible choice when adding 10G uplinks to existing switch infrastructure without changing the chassis or optics footprint.In practice, if you're building out 10 Gigabit uplinks in a data-centre rack row or high-density access aggregation switch stack, this transceiver gives you fibre links that support 10G bandwidth, alerting/monitoring capability, and utilization of existing multimode fibre before you commit to more expensive single-mode or longer-reach optics. Note: You must match fibre type (OM3/OM4) and transceiver specs (wavelength 850 nm) to get the quoted reach. The engineer-in-the-field knows that "SR" means short-range, so keep the link distances within spec.
Key Features
10 Gbps (10GBASE-SR) support - full 10G Ethernet connectivity.
850 nm VCSEL transmitter and duplex LC connector - standardized short-range MMF optics.
Supports up to ~300 m on OM3 and ~400 m on OM4 multimode fibre.
Digital Optical Monitoring (DOM) support - lets you monitor optical power, temperature, voltage in real time.
Hot-swappable SFP+ form-factor - plug-and-play for 10G ports without chassis change.
Technical Specifications
| Specification | Detail |
|---|
| Brand | Ruckus |
| Part Number | 10G-SFPP-SR-S |
| Product Type | 10Gbps Optical SFP+ Transceiver |
| Data Rate | 10 Gbps (also backward compatible with 1 Gbps) |
| Wavelength | 850 nm nomina |
| Fibre Type | Multimode Fibre (MMF) |
| Reach | Up to ~300 m on OM3; up to ~400 m on OM4 |
| Connector | Duplex LC |
| Digital Monitoring | DOM / DDM support |
| Form Factor | SFP+ (Small Form-Factor Pluggable Plus) |
