Detailed Specifications

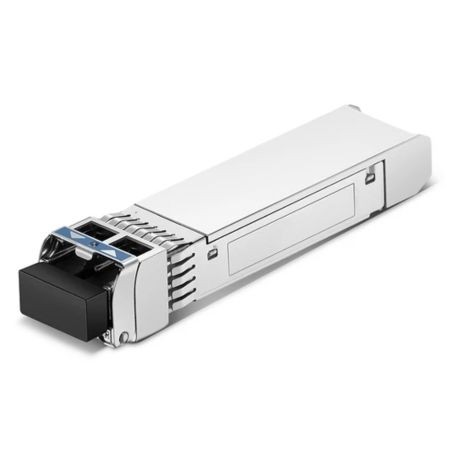

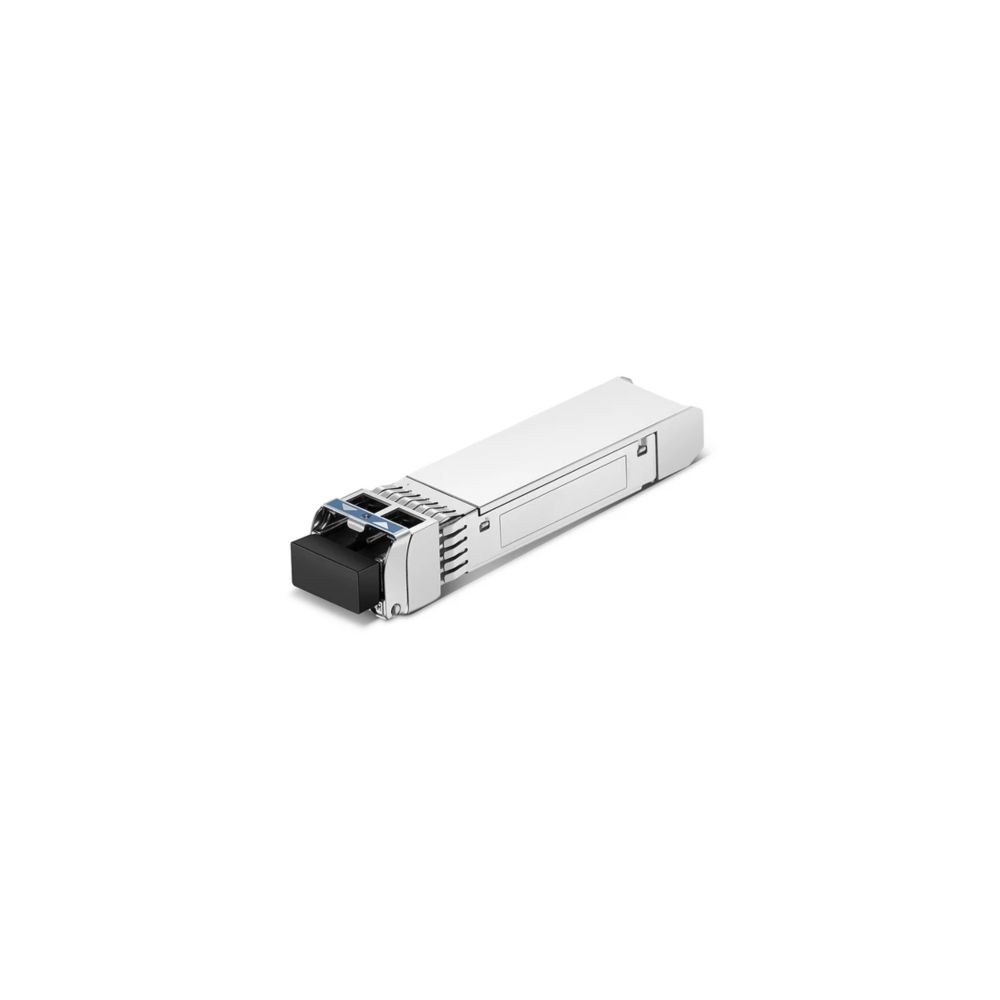

Ruckus E1MG-LX-OM - 1000BASE-LX SFP Transceiver
Overview :
The Ruckus E1MG-LX-OM is a hot-pluggable SFP transceiver module designed for Gigabit Ethernet applications, offering a reliable solution for long-distance fiber connectivity. Operating at a wavelength of 1310nm, it supports data rates up to 1.25 Gbps over single-mode fiber (SMF), achieving a maximum transmission distance of 10 kilometers. This transceiver is compliant with IEEE 802.3z standards and features Digital Diagnostic Monitoring (DDM), allowing real-time monitoring of parameters such as optical output power, laser bias current, and temperature. Its compact form factor ensures compatibility with a wide range of networking equipment, including Ruckus and Brocade switches. The E1MG-LX-OM is suitable for enterprise networks, data centers, and service provider environments requiring robust and scalable fiber optic solutions. With its compliance to RoHS standards and support for Class 1 laser safety, it ensures both environmental responsibility and user safety.
Key Features :
Supports 1.25 Gbps data rate over SMF
Maximum reach of 10 km at 1310nm wavelength
Compliant with IEEE 802.3z standards
Features Digital Diagnostic Monitoring (DDM)
RoHS compliant and Class 1 laser safety
Specifications :
| Specification | Details |
|---|
| Brand | Ruckus |
| Part Number | E1MG-LX-OM |
| Product Type | 1000BASE-LX SFP Transceiver |
| Data Rate | 1.25 Gbps |
| Wavelength | 1310 nm |
| Fiber Type | Single-Mode Fiber (SMF) |
| Maximum Distance | 10 km |
| Connector Type | LC Duplex |
| Digital Diagnostics | Yes (DDM) |
| Operating Temperature | 0°C to 70°C |
| Power Supply | 3.3 V DC |
| Compliant Standards | IEEE 802.3z, RoHS |
| Laser Safety Class | Class 1 |
| Form Factor | Hot-pluggable SFP |
| Weight | 0.10 lbs |
