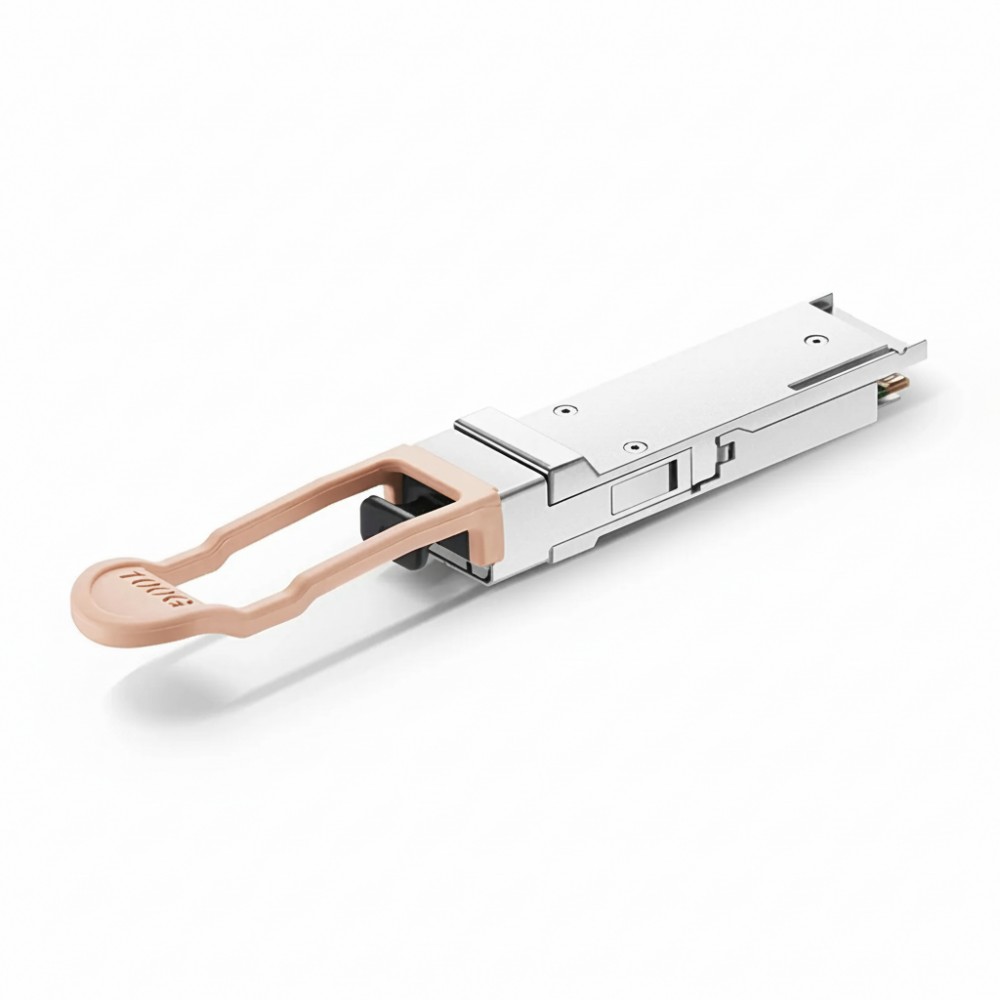

HPE Aruba JL309A QSFP28 Optical Transceiver Module View larger

HPE Aruba JL309A QSFP28 Optical Transceiver Module

New

100 Gbps QSFP28 SR4 multimode transceiver with MPO-12 connector for short-reach links.
×




  • New

Detailed Specifications

HPE JL309A – 100 Gb QSFP28 MPO SR4 Multimode Fiber Transceiver

The HPE JL309A is a 100 Gigabit-Ethernet QSFP28 optical transceiver built for high-density, short-reach multimode-fiber links—typically between switches, aggregation to core in data-centers or campus backbones. If you’re running a 100 G capable switch and need a reliable link over multimode fiber, this module provides up to 100 m reach on OM4 or around 70 m on OM3 fiber. It uses the SR4 (4-lane of 25 Gb) approach over a 12-fibre MPO connector and supports digital optical monitoring (DOM). It suits deployments where you want 100 Gb links without committing to single-mode or long-haul optics.

Key Features

  • 100 Gbps aggregate data rate (4×25 Gb) in a QSFP28 form factor for high-capacity interconnects.

  • MPO-12 connector with SR4 multimode fiber support—up to ~100 m on OM4 and ~70 m on OM3 fiber.

  • Digital optical monitoring (DOM) capability for real-time performance and diagnostics.

  • Low power consumption (~3.5 W typical) reduces thermal load in dense switch setups.

  • Compatible with HPE/Aruba switches that support QSFP28 SR4 optics, enabling seamless integrations in enterprise data-centres and campus fabrics.

Technical Specifications

SpecificationDetail
Brand HPE (Aruba Networking)
Part Number JL309A
Product Type 100 Gb QSFP28 SR4 Multimode Transceiver Module
Key Spec – Link Speed 100 Gb/s
Key Spec – Interface QSFP28 form-factor with MPO-12 connector
Key Spec – Reach Up to ~100 m on OM4 multimode fiber; ~70 m on OM3
Management Digital Optical Monitoring (DOM)
Power Consumption ≤ 3.5 W (commercial temperature)
Wavelength 850 nm
Temperature Range 0 °C to 70 °C (operational)
Compliance IEEE 802.3bm (100GBASE-SR4), MSA QSFP28, RoHS
