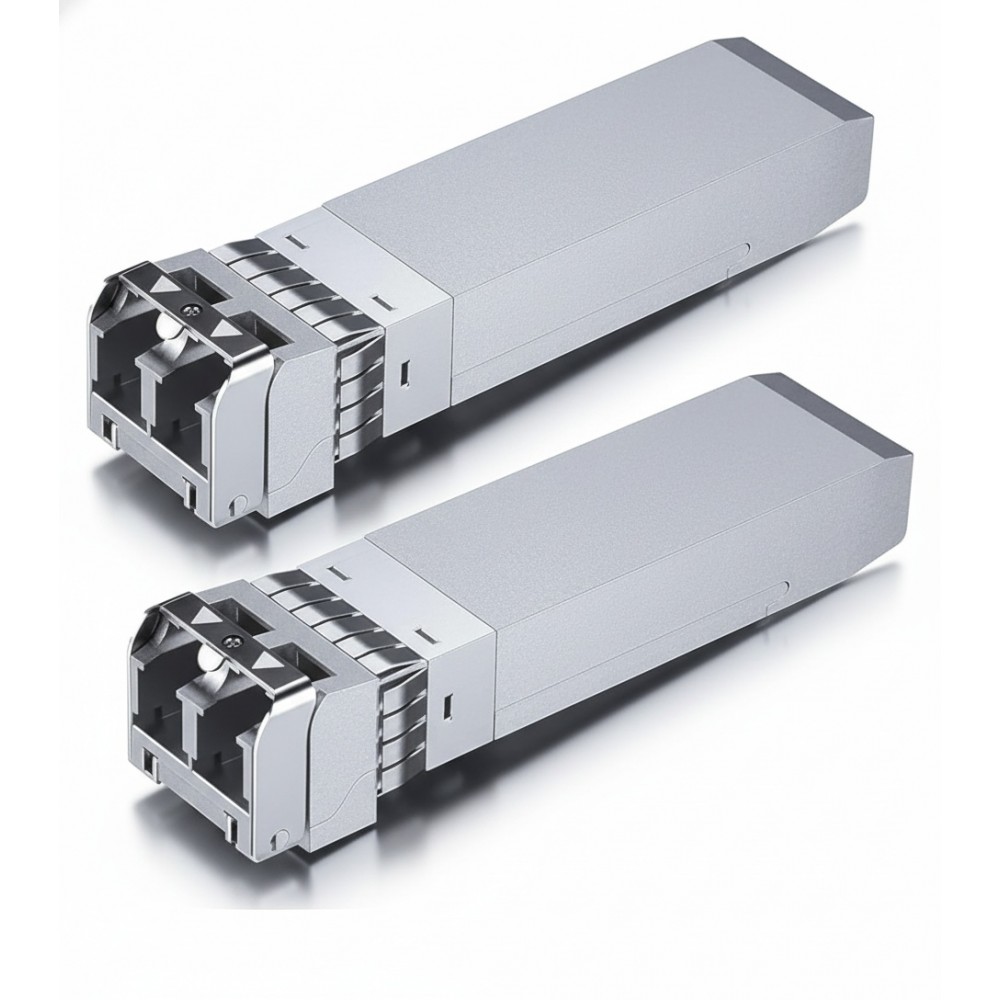

HPE JL437A X130 10G SFP+ LC SR DC XCVR Transceiver Manufacturer Compatible View larger

HPE JL437A X130 10G SFP+ LC SR DC XCVR Transceiver Manufacturer Compatible

New

10 Gb SFP+ SR 850 nm MMF transceiver (~300 m)
×




  • New

Detailed Specifications

HPE JL437A – 10 Gigabit SFP+ Short-Reach Transceiver (MMF)

Overview

The HPE JL437A is a 10-Gigabit small-form-factor pluggable plus (SFP+) optical transceiver module for short-reach multimode-fibre (MMF) connectivity. It uses an 850 nm wavelength and supports distances up to around 300 metres on OM3/OM4 multimode fibre under standard conditions. This makes it well suited for data-centre top-of-rack (ToR) or aggregation-layer uplinks in HPE/Aruba environments where 10 Gb links run over MMF trunks. You drop it into a SFP+ slot in a switch or router, plug in duplex LC multimode fibre, and you’ve got a 10 Gb link without needing single-mode fibre or long-haul optics.This module is ideal for server-to-switch, switch-to-switch or fibre trunk runs inside racks or between adjacent racks/floors in a data centre.

Key Features

  • 10 Gbps data rate over a standard SFP+ form-factor, enabling high-bandwidth optical uplinks.

  • 850 nm wavelength for multimode fibre (MMF) deployment—supports short-reach fibre runs without requiring single-mode fibre.

  • Duplex LC connector interface, widely supported in enterprise optical gear, making installation and spares handling straightforward.

  • Compatible with HPE/Aruba switching platforms that have 10 G SFP+ ports—ensures plug-and-play with the HPE optical ecosystem.

Technical Specifications

SpecificationDetail
Brand HPE (Hewlett Packard Enterprise)
Part Number JL437A
Product Type Optical Transceiver Module – 10 Gb SFP+ (SR)
Key Specification Data Rate: 10 Gbps
Key Specification Wavelength: 850 nm
Key Specification Maximum Reach: ~300 m on OM3/OM4 multimode fibre
Management Hot-swappable SFP+ module
Power Requirements Standard SFP+ supply voltage (+3.3 V typical)
Dimensions & Weight Standard SFP+ size (~13.4 mm × 56.5 mm × ~8-9 mm)
Warranty Standard HPE networking optics warranty (region-dependent)
