Detailed Specifications

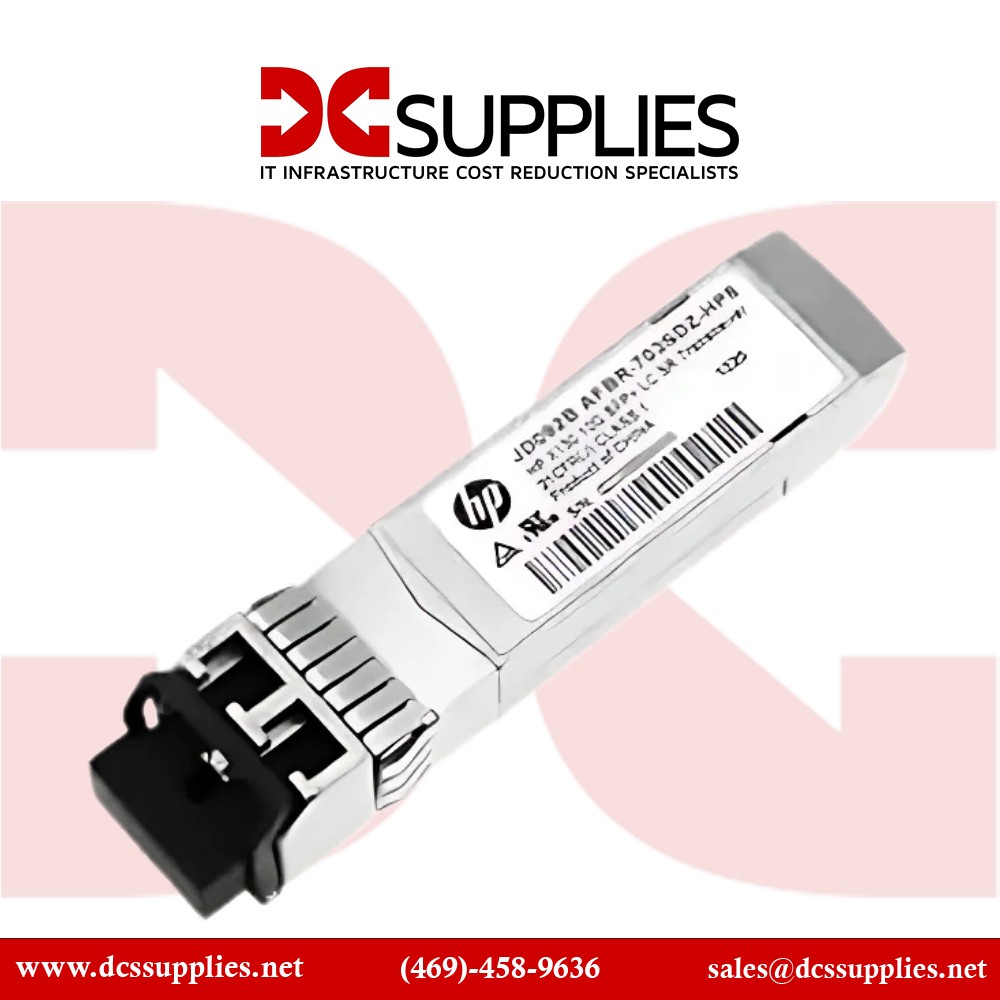

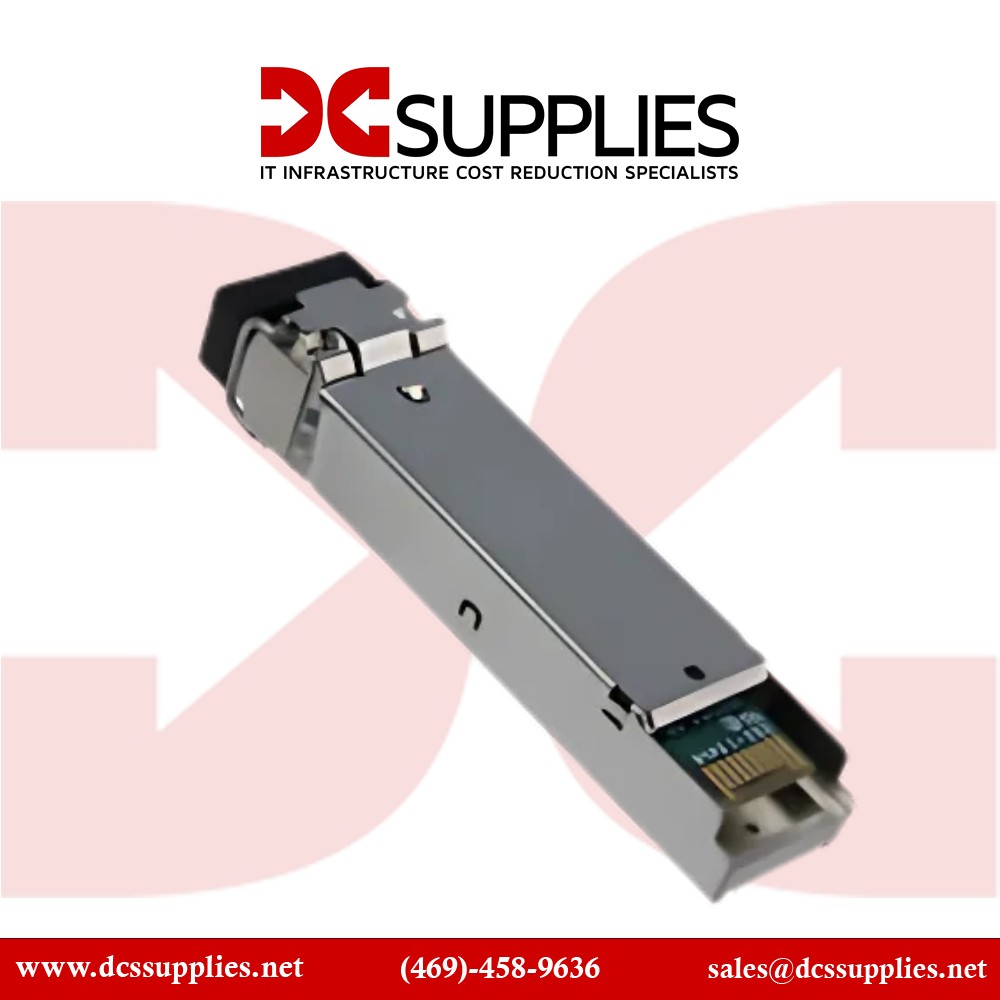

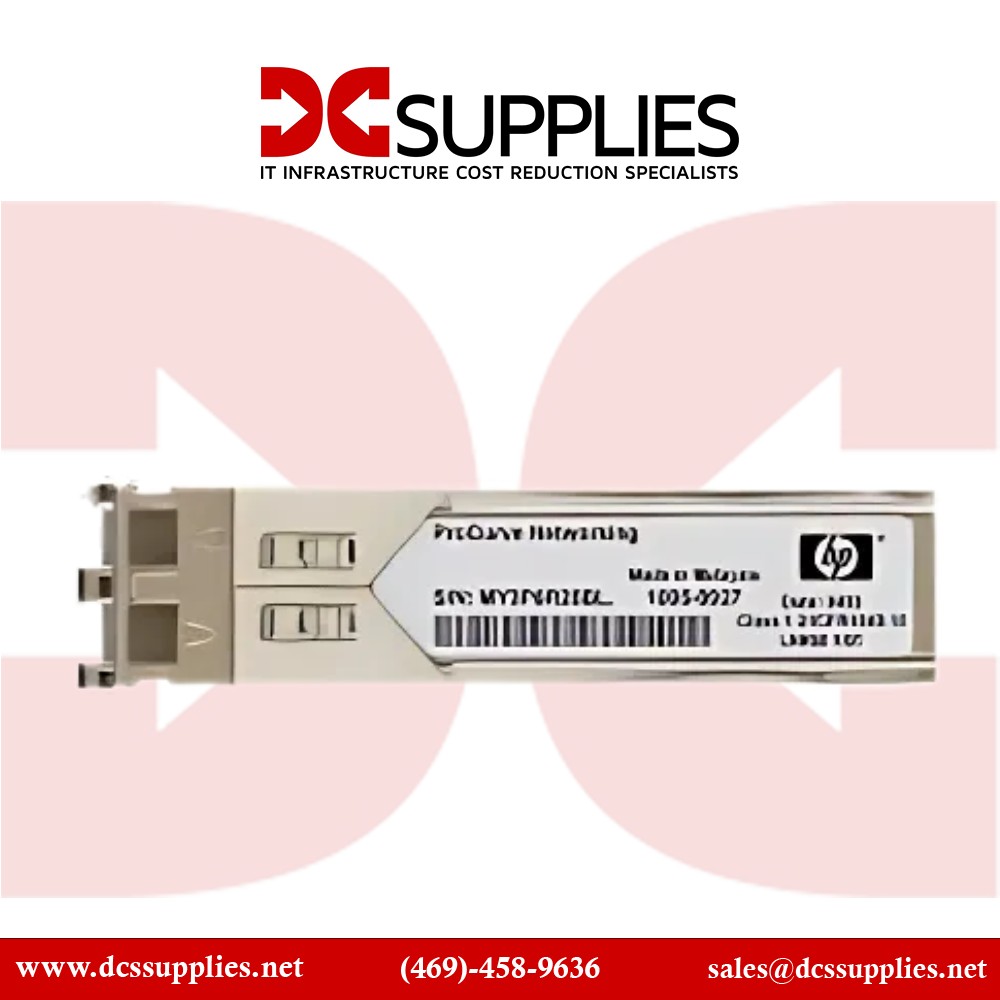

HP JD093B - 10GBASE-LRM SFP+ Transceiver
Overview :
The HP JD093B is a hot-pluggable SFP+ optical transceiver designed for network engineers deploying 10 Gigabit Ethernet links in enterprise and data-centre environments. It supports a 10 Gb/s data rate over multi-mode or single-mode fibre with a 1310 nm wavelength, enabling network upgrades over existing fibre infrastructure. With a reach of up to approximately 220 m on OM3 multimode fibre and up to 300 m on single-mode fibre, it bridges short-to-mid-range links at data centre edge, campus aggregation or distribution layers. The module supports digital optical monitoring (DOM/ DDM), facilitating link diagnostics and maintenance. Its IEEE 802.3ae (10GBASE-LRM) form-factor compatibility ensures integration with standard SFP+ ports.
Key Features
10.3 Gb/s maximum line rate for 10G Ethernet link
1310 nm DFB laser transmitter with LC duplex connector
Reach: up to 300 m on SMF; ~220 m on OM3 MMF
Digital Optical Monitoring (DOM) support for diagnostics
Single +3.3 V power supply; power consumption below ~1 W
Specifications :
| Specification | Value |
|---|
| Brand | HP |
| Part Number | JD093B |
| Product Type | SFP+ optical transceiver 10GBASE-LRM |
| Data Rate | Up to ~10.3 Gb/s |
| Wavelength (TX) | 1310 nm |
| Fibre Type / Reach | MMF: ~220 m OM3 / SMF: ~300 m |
| Connector Type | LC Duplex |
| Power Supply | +3.3 V |
| Power Consumption | < 1 W |
| Digital Monitoring | Yes (DOM/DDM) |
| Operating Case Temp | 0 °C to +70 °C (standard) |
| Storage Temp | -40 °C to +85 °C |
| Package Dimensions | 56.7 mm (L) × 13.7 mm (W) × 8.5 mm (H) ≈ 2.23″ × 0.54″ × 0.33″ |
| Weight | Approx. 21 g (0.7 oz) |
| Compliance Standards | IEEE 802.3ae, SFP+ MSA, RoHS |
