Detailed Specifications

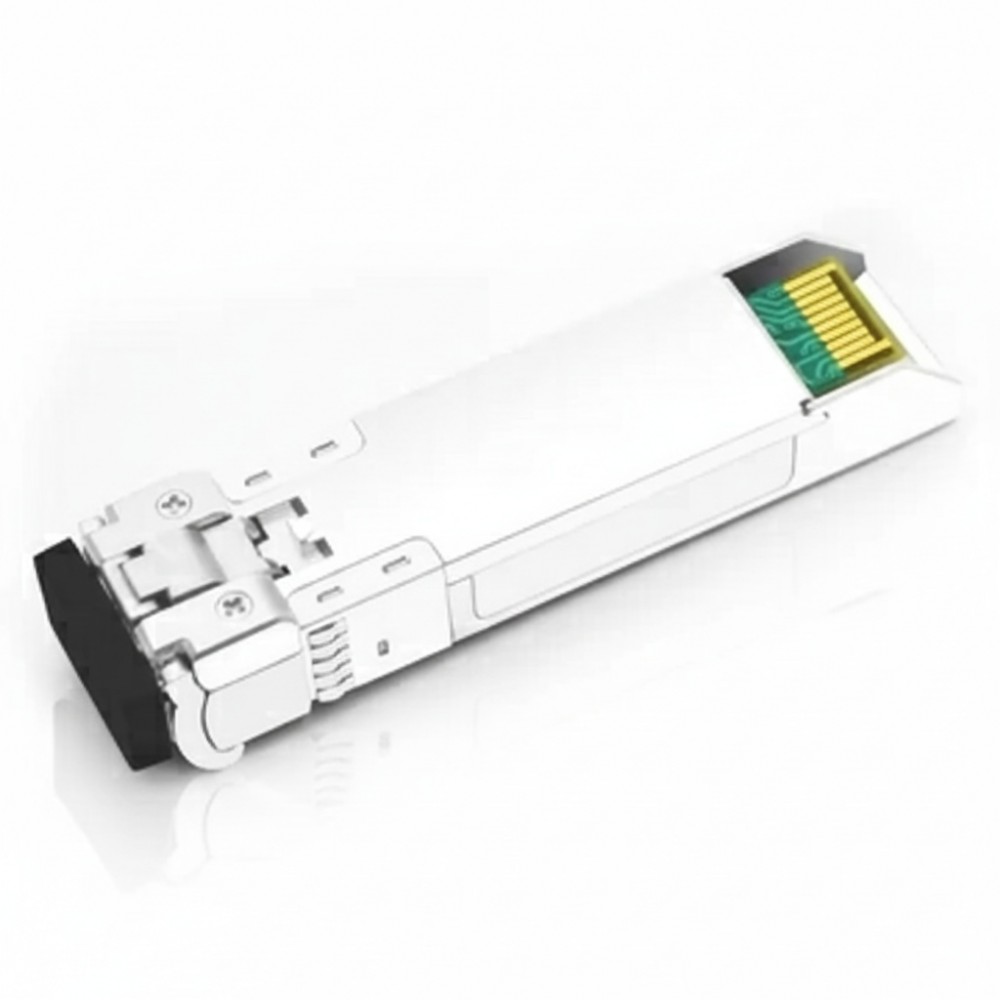

HPE JD093A 10 Gb SFP Transceiver Module 1310 nm MMF 200 m
Overview
The HPE JD093A is a 10 Gigabit SFP+ optical transceiver module designed for enterprise network fibre links where you need high-throughput connectivity but the distances don't justify longer-reach modules. It uses a 1310 nm wavelength over multimode fibre (MMF) and is rated for around 200 metres reach in typical OM3/OM4 fibre (depending on fibre quality and channel conditions). You'd deploy this module in a 10G SFP+ port on an HPE/Aruba switch or router to connect between racks, wiring-closet fibre trunks or short campus spans. It avoids the cost of single-mode optics while giving you high bandwidth and keeps the link budget practical for many data-centre or campus fibre runs.
Key Features
Supports full 10 Gbps data rate in SFP+ form-factor × suitable for aggregation or server-to-switch fibre links.
1310 nm optical transmitter over MMF (10GBASE-LRM classification) with reach up to ~200 metres under specified conditions × ideal for short-haul fibre segments.
Duplex LC connector, hot-swappable SFP+ module × integrates cleanly into HPE-class networking equipment.
Low power consumption (< 1 W typical) and supports Digital Diagnostics Monitoring (DDM/DOM) in supported platforms × enables real-time monitoring of optical parameters.
Technical Specifications
| Specification | Detail |
|---|
| Brand | HPE (Hewlett Packard Enterprise) |
| Part Number | JD093A |
| Product Type | Optical Transceiver Module - 10 Gb SFP+ |
| Key Specification | Data Rate: 10 Gbps |
| Key Specification | Wavelength: 1310 nm |
| Key Specification | Reach: ≈ 200 m over multimode fibre (MMF) |
| Management | Hot-swappable SFP+ module, supports DDM/DOM |
| Power Requirements | Typical < 1 W |
| Dimensions & Weight | Standard SFP+ size (~13.4 mm × 56.5 mm × ~8-9 mm) |
| Warranty | Standard HPE networking optics warranty (verify region) |
