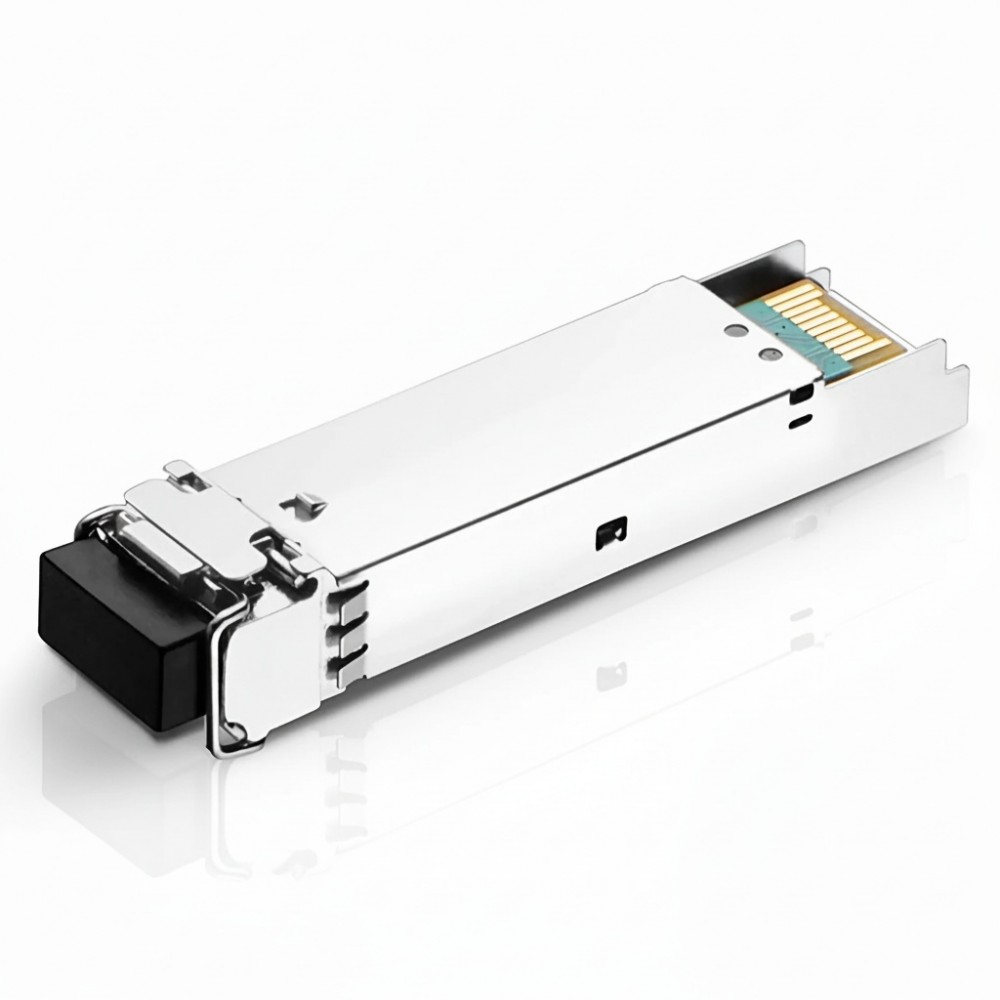

HPE JD092A 10G SFP+ LC SR Transceiver 300m DDM Manufacturer Compatible View larger

HPE JD092A 10G SFP+ LC SR Transceiver 300m DDM Manufacturer Compatible

New

10 Gb SFP+ SR MMF transceiver up to ~300 m
×




  • New

Detailed Specifications

HPE JD092A – 10Gb SFP+ SR Multimode Fibre Transceiver

Overview

The HPE JD092A is a 10 Gigabit small-form-factor pluggable (SFP+) transceiver designed for enterprise fibre links, especially in data-centre, aggregation or campus backbone environments. It uses an 850 nm VCSEL transmitter over multimode fibre (MMF) and supports the 10GBASE-SR standard. Distances of up to approximately 300 m on OM3/OM4 MMF are specified under standard use. In the field you would deploy this module in a 10G SFP+ port on a switch or router to connect between racks or buildings where copper or shorter-reach modules are insufficient. When you need high-bandwidth fibre links with proven compatibility in HPE networking gear, this part steps in.

Key Features

  • Native 10 Gbps throughput via SFP+ interface, enabling high-bandwidth uplinks and fibre trunking.

  • 850 nm wavelength over multimode fibre with reach up to ~300 m (some sources report up to 400 m on OM4) — suitable for typical data-centre/campus fibre spans.

  • Duplex LC connector, hot-swappable SFP+ form-factor, compliant with the SFP+ MSA standard and designed for broad compatibility with HPE/Aruba platforms.

  • Digital diagnostics (DDM/DOM) support for real-time monitoring of optical parameters in supported host devices.

Technical Specifications

SpecificationDetail
Brand HPE (Hewlett Packard Enterprise)
Part Number JD092A
Product Type Optical Transceiver Module – 10 Gb SFP+ (10GBASE-SR)
Key Specification Data Rate: 10 Gbps
Key Specification Wavelength: 850 nm
Key Specification Maximum Reach: ~300 m over multimode fibre
Management Hot-swappable SFP+ module; supports DDM diagnostics
Power Requirements < 1.3 W typical supply voltage +3.3 V
Dimensions & Weight Standard SFP+ size (~13.4 mm × 56.5 mm × ~8/9 mm)
Warranty Vendor limited warranty (verify region)
