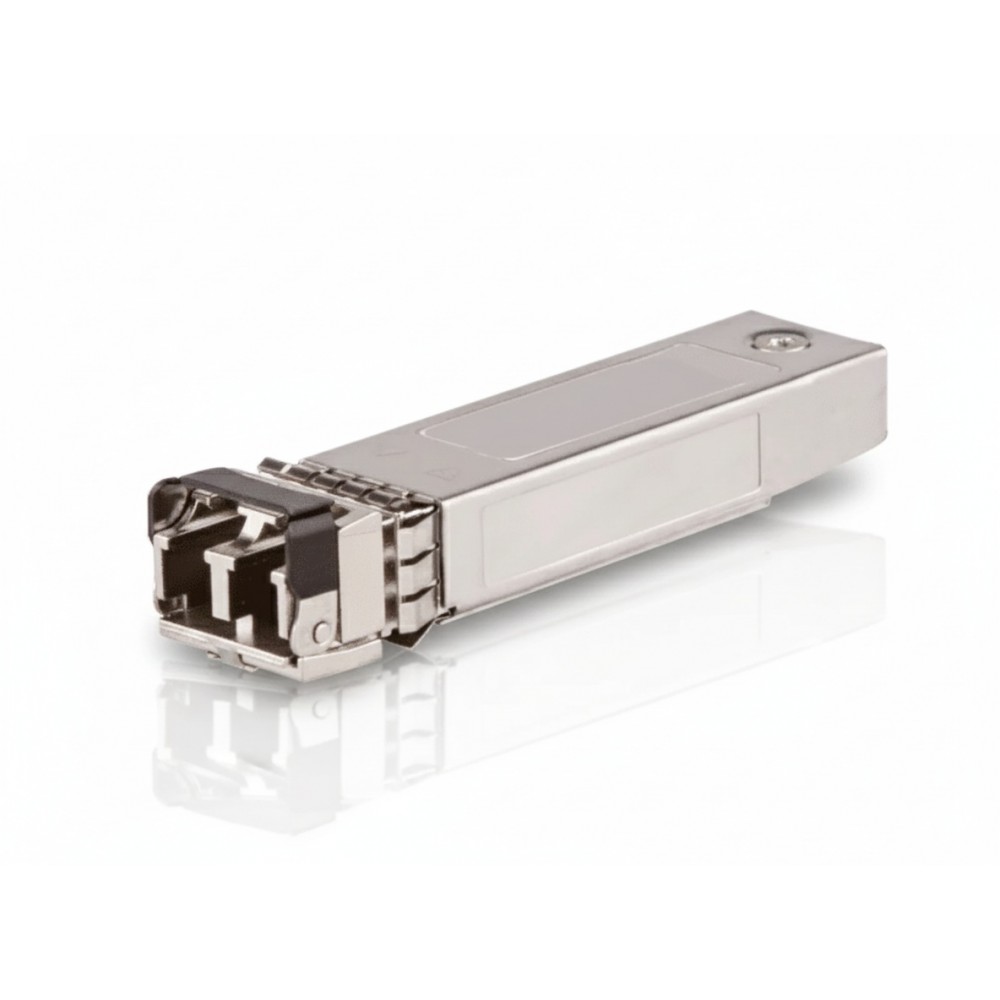

HPE JW088A Networks Compatible TAA 1000Base-SX SFP Transceiver View larger

HPE JW088A Networks Compatible TAA 1000Base-SX SFP Transceiver

New

1 Gb SFP transceiver, 1000BASE-SX, up to 550 m
×




  • New

Detailed Specifications

HPE JW088A 1 GbE SFP Transceiver Module (1000BASE-SX)

Overview

The HPE JW088A is a 1 Gigabit SFP optical transceiver module designed for enterprise fibre-optic left-and-right connection in access or aggregation networks. It supports the 1000BASE-SX standard over multimode fibre using an 850 nm wavelength and is rated for distances up to about 550 metres in MMF environments. It fits standard SFP cages in HPE/Aruba switches and mobility controllers and enables cost-effective fibre uplink or fibre link segments where copper is not suitable. Typical use: connecting wiring-closet switches to fibre backbone or linking buildings across campus.

Key Features

  • 1 Gbps data rate using 1000BASE-SX multimode fibre interface — appropriate for high-density access uplinks.

  • 850 nm wavelength over multimode fibre with reach up to ~550 m — supports campus fibre runs or server-room to closet links.

  • LC duplex connector form-factor in small-form-factor (SFP) plug-in module — hot-swappable and compatible with HPE/Aruba SFP ports.

  • Supports industry standard SFP MSA compliance and fits in Aruba/HPE equipment offering fibre options without replacing entire switch modules.

Technical Specifications

SpecificationDetail
Brand HPE / Aruba Networking
Part Number JW088A
Product Type Optical Transceiver Module – 1 Gb SFP (1000BASE-SX)
Key Specification Data Rate: 1 Gbps
Key Specification Wavelength: 850 nm
Key Specification Reach: Up to approximately 550 m over multimode fibre
Management Hot‐swappable SFP module, supports digital optical monitoring (DOM) depending on platform
Power Requirements 3.3 V typical supply (standard SFP form-factor)
Dimensions & Weight SFP form-factor (approx 13.4 mm × 56.5 mm × ~8.5 mm)
Warranty Limited lifetime (per vendor statement)
