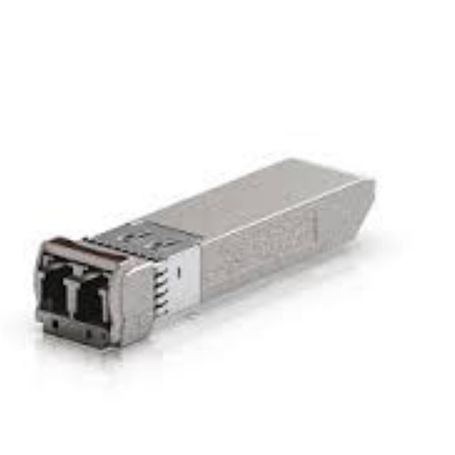

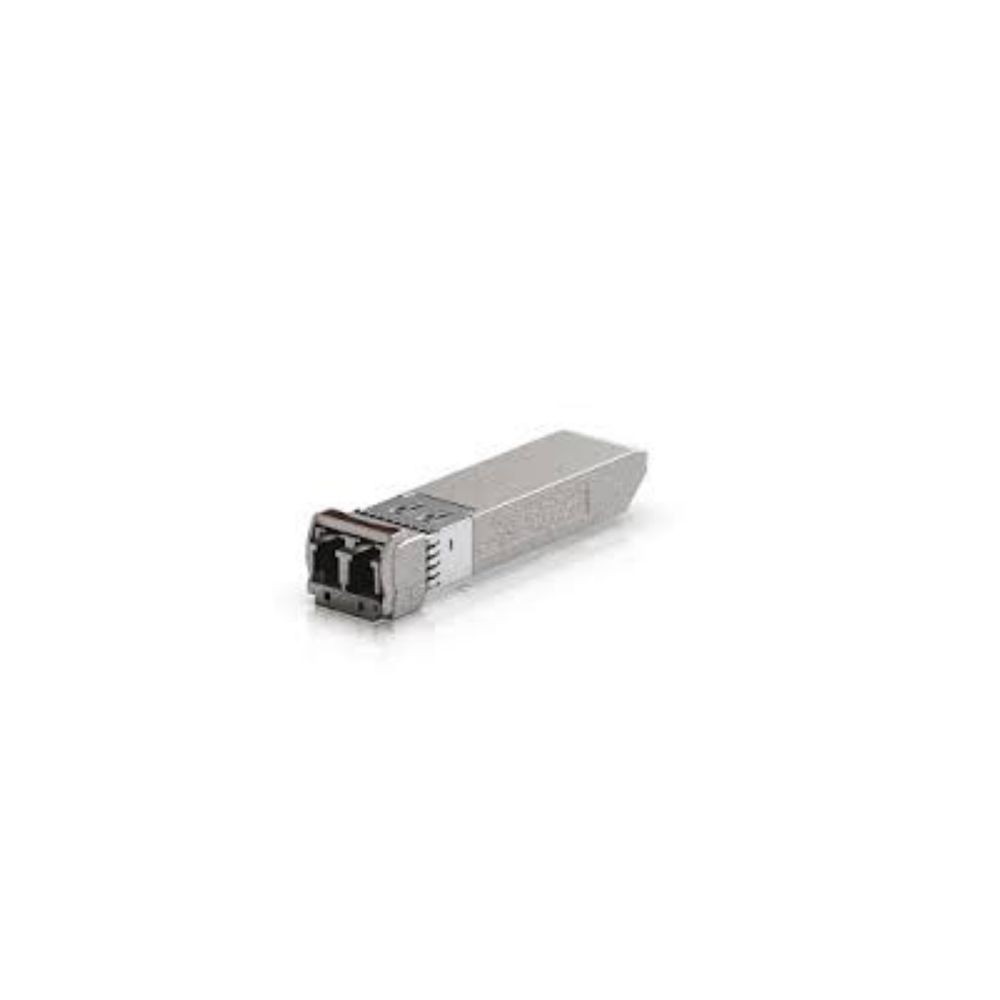

Ubiquiti UACC-OM-SFP10-1270 – 10G CWDM SFP+ Single-Mode Transceiver 1270nm
Overview
The Ubiquiti UACC-OM-SFP10-1270 is a 10G CWDM single-mode optical transceiver designed for fiber network links up to 20 km. It uses a 1270 nm operating wavelength and provides an SFP+ interface with a duplex LC UPC fiber connection.
The module is intended for CWDM deployments where individual wavelength channels are used over single-mode fiber. Ubiquiti specifies operation in pairs using modules of the same wavelength.
Technical Information
UACC-OM-SFP10-1270 supports a maximum data rate of 10 Gbps and uses an SFP+ to duplex LC connection. The module supports single-mode fiber with a specified cable distance of up to 20 km and has a maximum power consumption of 1.2 W.
The 1270 nm module belongs to Ubiquiti's UACC-OM-SFP10 CWDM range. The manufacturer specifies an operating wavelength range of 1260 to 1620 nm for the 1270–1330 nm variants.
Compatibility
The transceiver is compatible with SFP+ and SFP interfaces as specified by Ubiquiti. For a CWDM link, matching wavelength modules should be deployed as a pair. The fiber cable is not included with the optical module.
Key Features
- 10G CWDM SFP+ optical transceiver
- 1270 nm operating wavelength
- Single-mode fiber support up to 20 km
- Duplex LC UPC fiber connector
- 1.2 W maximum power consumption
Applications
UACC-OM-SFP10-1270 is suited to 10G CWDM fiber links in enterprise networks, data center interconnects, campus infrastructure, and other single-mode optical deployments requiring wavelength-based fiber transport.
DC Supplies Product Note
For CWDM point-to-point links, verify that the optical modules at both ends use the required matching wavelength and that the installed single-mode fiber infrastructure supports the intended 20 km link distance.
Specifications
| Brand | Ubiquiti |
|---|
| Part Number / MPN | UACC-OM-SFP10-1270 |
|---|
| Product Type | 10G CWDM Single-Mode Optical Module |
|---|
| Module Type | SFP+ CWDM Transceiver |
|---|
| Data Rate | 9.95–11.3 Gbps |
|---|
| Operating Wavelength | 1270 nm |
|---|
| Operating Wavelength Range | 1260–1620 nm |
|---|
| Supported Media | Single-mode fiber |
|---|
| Connector | SFP+ to Duplex LC UPC |
|---|
| Supported Cable Distance | 20 km |
|---|
| Maximum Power Consumption | 1.2 W |
|---|
| Interface Compatibility | SFP+, SFP |
|---|
| Operating Temperature | 0–70 °C |
|---|
| Operating Humidity | 0–85% noncondensing |
|---|
| Pack Option | Single Unit |
|---|
FAQs
What wavelength does UACC-OM-SFP10-1270 use?
The module uses a 1270 nm CWDM operating wavelength.
What fiber type is supported?
The module is designed for single-mode fiber connections.
What is the maximum supported cable distance?
Ubiquiti specifies a supported cable distance of up to 20 km.
What connector does the module use?
It uses an SFP+ interface on the equipment side and a duplex LC UPC fiber connector.
Can one module be used alone for a CWDM link?
Ubiquiti specifies that CWDM modules operate in pairs using the same wavelength, so a compatible matching module is required at the remote end.
Is the fiber cable included?
No. The Ubiquiti product specification states that the fiber cable is not included.
