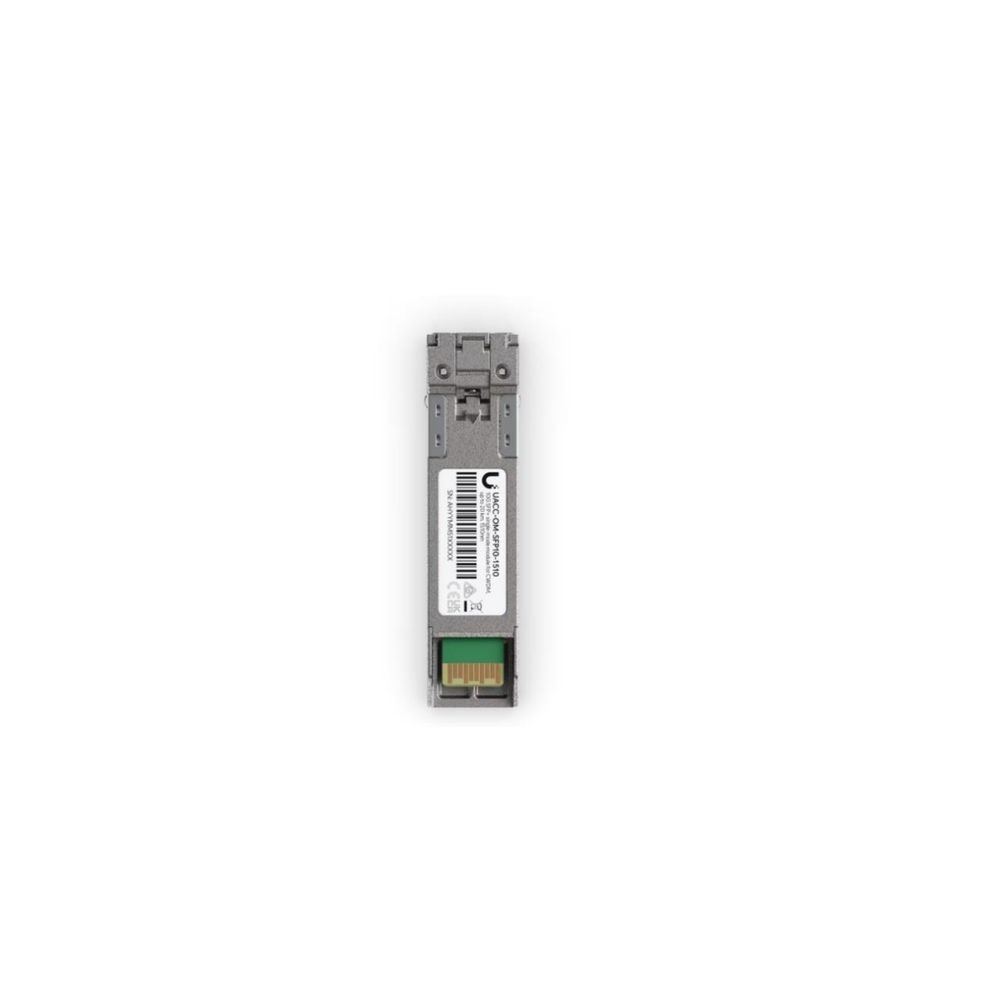

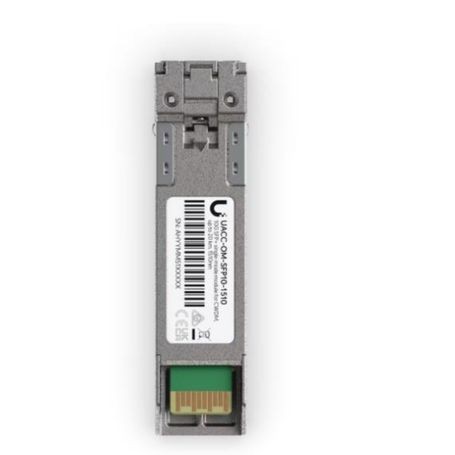

Ubiquiti UACC-OM-SFP10-1510 – 10G CWDM SFP+ Single-Mode Transceiver 1510nm
Overview
The Ubiquiti UACC-OM-SFP10-1510 is a 10G CWDM single-mode optical module designed for wavelength-division multiplexing over single-mode fiber. The exact -1510 variant operates at the 1510 nm wavelength and uses an SFP+ form factor with a Duplex LC UPC fiber connector.
The module supports 10 Gbps connections over distances up to 20 km when used with suitable single-mode fiber infrastructure. Ubiquiti specifies operation in pairs of modules using the same wavelength for compatible point-to-point CWDM links.
Technical Information
UACC-OM-SFP10-1510 uses a Duplex LC optical interface and supports single-mode fiber. The maximum specified power consumption is 1.2W, with an operating temperature range of 0 to 70°C and operating humidity of 0 to 85% noncondensing.
The UACC-OM-SFP10 family covers multiple CWDM wavelengths. The exact UACC-OM-SFP10-1510 MPN identifies the 1510 nm variant and should not be substituted with another wavelength variant when matching an existing CWDM channel plan.
Compatibility
The module is compatible with SFP+ and SFP interfaces according to Ubiquiti's specifications and is intended for fiber-based network equipment supporting the required optical module interface. The 1510 nm variant should be paired with the corresponding 1510 nm wavelength in a compatible CWDM deployment.
Fiber cable is not included with the optical module. Confirm that the host equipment supports the required SFP/SFP+ module and that the deployed CWDM mux/demux system uses the 1510 nm channel before installation.
Key Features
- 10 Gbps CWDM single-mode optical transceiver
- 1510 nm operating wavelength
- Duplex LC UPC connector
- Up to 20 km supported fiber distance
- 1.2W maximum power consumption
Applications
- 10G CWDM single-mode fiber links
- Enterprise and data center optical networks
- Campus network fiber aggregation
- Wavelength-multiplexed network backhaul
- Long-distance 10G connections using compatible CWDM infrastructure
DC Supplies Product Note
The 1510 nm wavelength is specific to this MPN and should be matched to the corresponding CWDM channel at the remote end. Verify the wavelength assignment of the installed CWDM mux/demux before ordering or replacing an optical module.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UACC-OM-SFP10-1510 |
| Product Type | 10G CWDM Single-Mode Optical Module |
| Form Factor | SFP+ |
| Maximum Data Rate | 10 Gbps |
| Technology | CWDM |
| Operating Wavelength | 1510 nm |
| Supported Media | Single-mode fiber |
| Connector | SFP+ to Duplex LC UPC |
| Supported Fiber Distance | Up to 20 km |
| Interface Compatibility | SFP+ and SFP |
| Maximum Power Consumption | 1.2 W |
| Operating Temperature | 0 to 70°C |
| Operating Humidity | 0 to 85% noncondensing |
| Pack Quantity | 1 |
| Fiber Cable Included | No |
FAQs
What is the Ubiquiti UACC-OM-SFP10-1510?
It is a 10G CWDM single-mode optical module using the 1510 nm wavelength for compatible fiber network equipment.
What wavelength does UACC-OM-SFP10-1510 use?
The exact -1510 variant operates at 1510 nm.
What connector does the module use?
It uses a Duplex LC UPC fiber connector in an SFP+ form factor.
What fiber distance is supported?
Ubiquiti specifies support for single-mode fiber connections up to 20 km.
Does the module include fiber cable?
No. Ubiquiti specifies that the fiber cable is not included.
What power does the module consume?
The maximum specified power consumption is 1.2W.
