Detailed Specifications

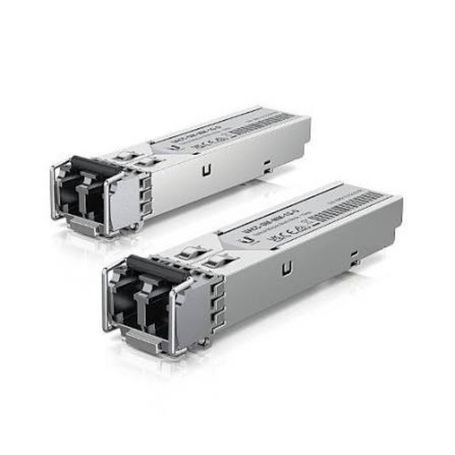

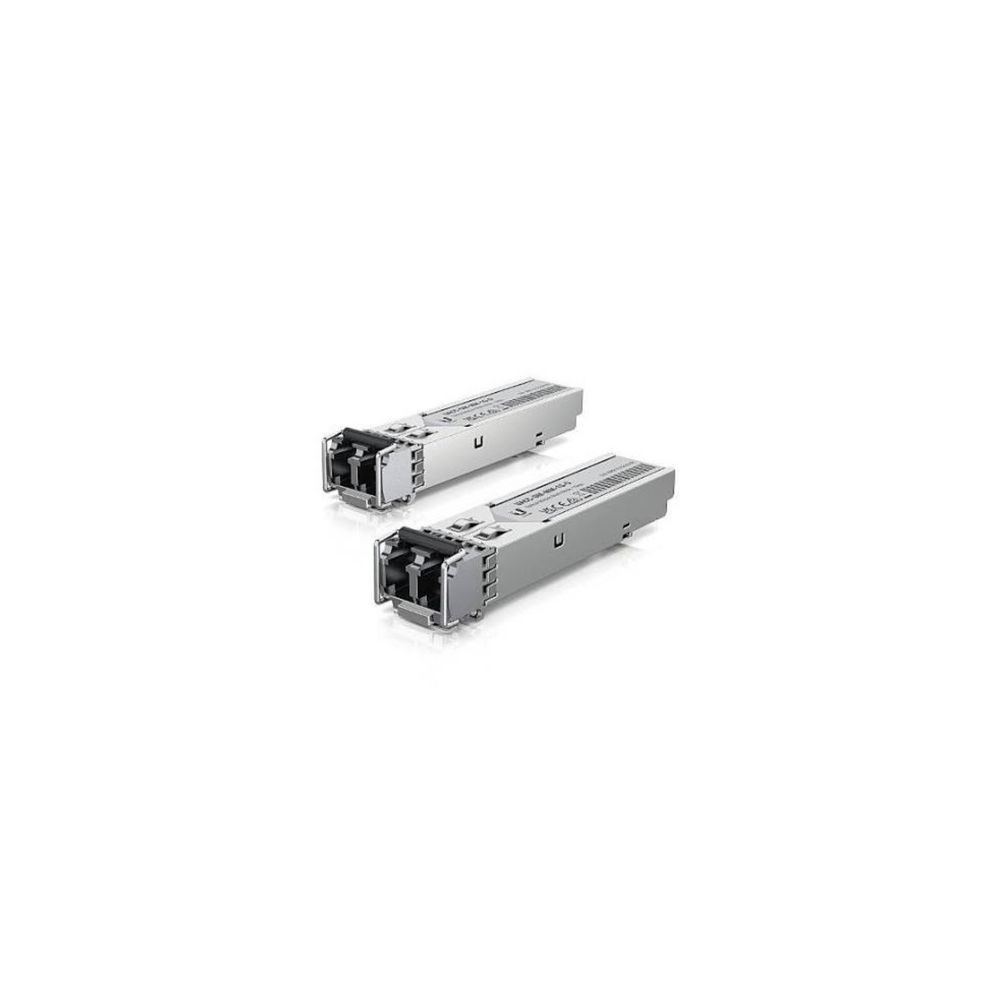

Ubiquiti UACC-OM-MM-1G-D-2 UniFi 1G Multi-Mode SFP Optical Module 2-Pack with Duplex LC UPC
Overview
The Ubiquiti UACC-OM-MM-1G-D-2 is a 2-pack of 1G multi-mode optical SFP transceivers designed for Ethernet connectivity over multi-mode fiber. Each module supports 1 Gbps connections up to 550 m (1,804 ft) and uses a duplex LC UPC connector.
Optical Connectivity
The modules use 850 nm transmission and reception wavelengths and support multi-mode fiber media. The SFP form factor allows installation in compatible SFP interfaces for fiber-based network links.
Deployment
The UACC-OM-MM-1G-D-2 is intended for 1G network connections where multi-mode fiber is used between compatible SFP interfaces. The specified maximum cable distance is 550 m (1,804 ft).
Key Features
- 2-pack of 1G multi-mode optical SFP modules
- Supports data rates up to 1 Gbps
- Duplex LC UPC connector
- 850 nm TX and RX wavelengths
- Supports multi-mode fiber connections up to 550 m (1,804 ft)
Applications
These optical modules can be deployed for 1G fiber links between network equipment with compatible SFP interfaces, including switch-to-switch and other fiber-based Ethernet connections within the supported distance.
DC Supplies Product Note
The specified 550 m distance applies to supported multi-mode fiber connections. The fiber cable is not included with the optical module.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UACC-OM-MM-1G-D-2 |
| Product Type | 1G Multi-Mode Optical Module |
| Form Factor | SFP |
| Connector | Duplex LC UPC |
| Supported Media | Multi-Mode Fiber |
| TX Wavelength | 850 nm |
| RX Wavelength | 850 nm |
| Supported Data Rate | 1 Gbps |
| Supported Cable Distance | 550 m (1,804 ft) |
| Maximum Power Consumption | 0.66 W |
| Pack Options | 2-Pack |
| Ambient Operating Temperature | 0 to 70°C (32 to 158°F) |
| Fiber Cable Included | No |
Frequently Asked Questions
What type of fiber does the UACC-OM-MM-1G-D-2 support?
It supports multi-mode fiber.
What connector does the optical module use?
It uses a duplex LC UPC connector.
What is the maximum supported cable distance?
The specified maximum cable distance is 550 m (1,804 ft).
What data rate does the module support?
The module supports a data rate of 1 Gbps.
Is fiber cable included?
No. Ubiquiti specifies that the fiber cable is not included.
