Detailed Specifications
Overview

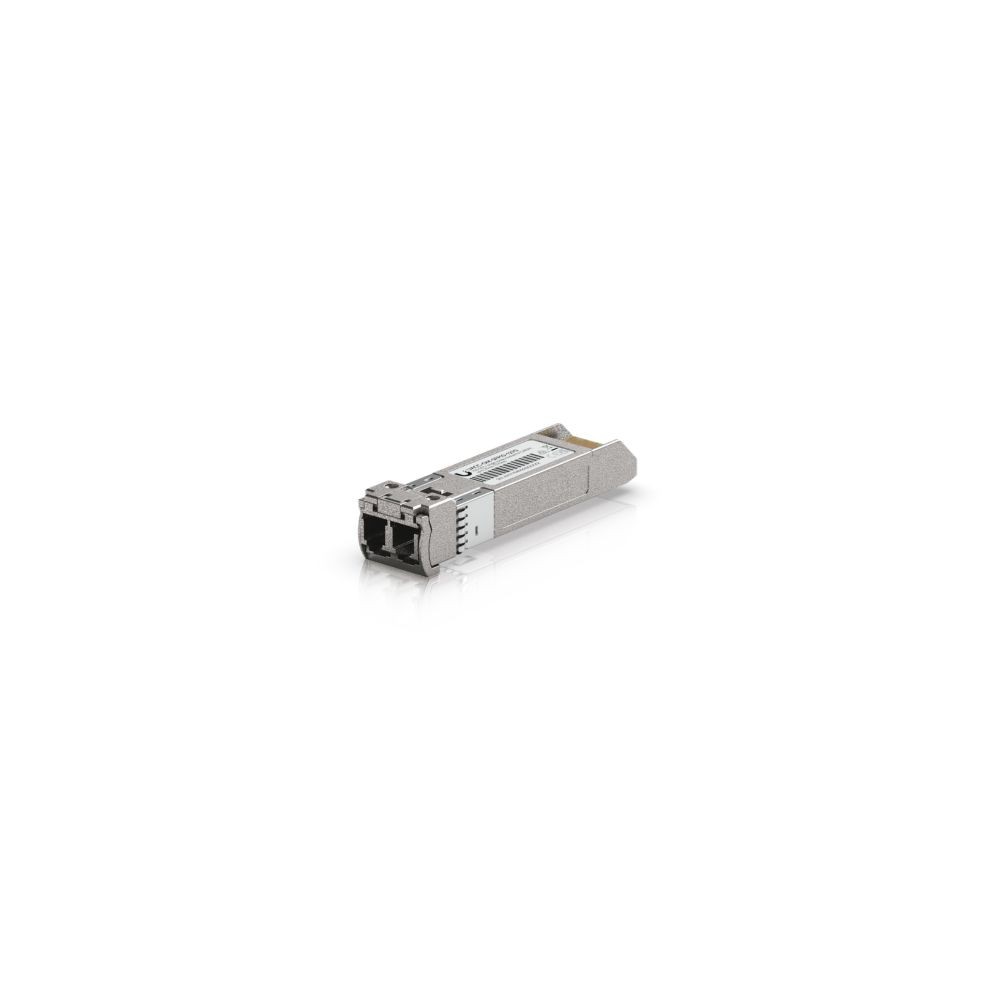

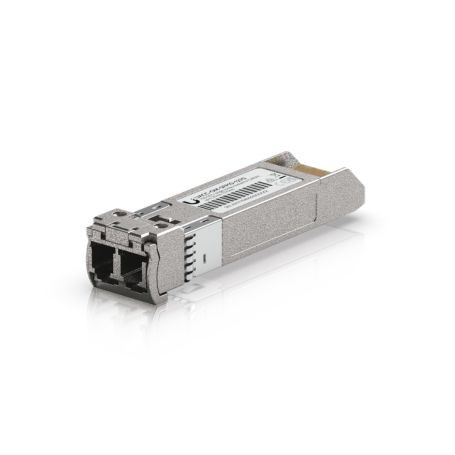

The Ubiquiti UACC-OM-SFP10-1550 is a 10G CWDM single-mode optical module designed for high-speed fiber connectivity over distances up to 20 km. This variant operates at the 1550nm CWDM wavelength and uses a duplex LC UPC fiber connection.
Optical Connectivity
The module uses an SFP+ interface on the network-device side and a duplex LC UPC connector for the fiber connection. It is designed for single-mode fiber and supports 10 Gbps data rates with a maximum supported cable distance of 20 km.
CWDM Operation
As part of Ubiquiti's CWDM optical module family, the UACC-OM-SFP10-1550 is intended to operate as a wavelength-specific module. CWDM deployments should use matching modules of the same wavelength at the corresponding ends of a link.
Key Features
- 10 Gbps optical connectivity
- 1550nm CWDM wavelength
- Single-mode fiber support up to 20 km
- Duplex LC UPC fiber connector
- SFP+ module with compatibility across SFP+ and SFP interfaces
Applications
The UACC-OM-SFP10-1550 can be used for 10G fiber uplinks, switch-to-switch connections, and other network links requiring extended single-mode fiber reach. Its CWDM wavelength makes it suitable for wavelength-managed fiber infrastructure where multiple optical channels share fiber infrastructure.
Specifications
| Brand | Ubiquiti |
|---|
| Part Number / MPN | UACC-OM-SFP10-1550 |
|---|
| Product Type | 10G CWDM Single-Mode Optical Module |
|---|
| Module Form Factor | SFP+ |
|---|
| Optical Technology | CWDM |
|---|
| Maximum Data Rate | 10 Gbps |
|---|
| Operating Wavelength | 1550 nm |
|---|
| Supported Fiber | Single-mode fiber (SMF) |
|---|
| Maximum Supported Distance | 20 km (65,617 ft) |
|---|
| Fiber Connector | Duplex LC UPC |
|---|
| Host Interface | SFP+ |
|---|
| Interface Compatibility | SFP+ and SFP |
|---|
| Maximum Power Consumption | 1.2 W |
|---|
| Operating Temperature | 0 to 70 °C (32 to 158 °F) |
|---|
| Operating Humidity | 0 to 85% noncondensing |
|---|
| Pack Quantity | 1 |
|---|
| Fiber Cable Included | No |
|---|
FAQs
What wavelength does the UACC-OM-SFP10-1550 use?
This specific module is the 1550nm variant in Ubiquiti's 10G CWDM optical module family.
What fiber type is required?
The module is designed for single-mode fiber with a duplex LC UPC connection.
What is the maximum supported fiber distance?
Ubiquiti specifies a maximum supported cable distance of 20 km.
What data rate does this module support?
The module supports optical connectivity at up to 10 Gbps.
Can different CWDM wavelengths be used together?
CWDM systems use wavelength-specific optical channels. For a direct link using this module, verify that the corresponding optical module is the required matching wavelength for the deployment.
