Detailed Specifications
Overview

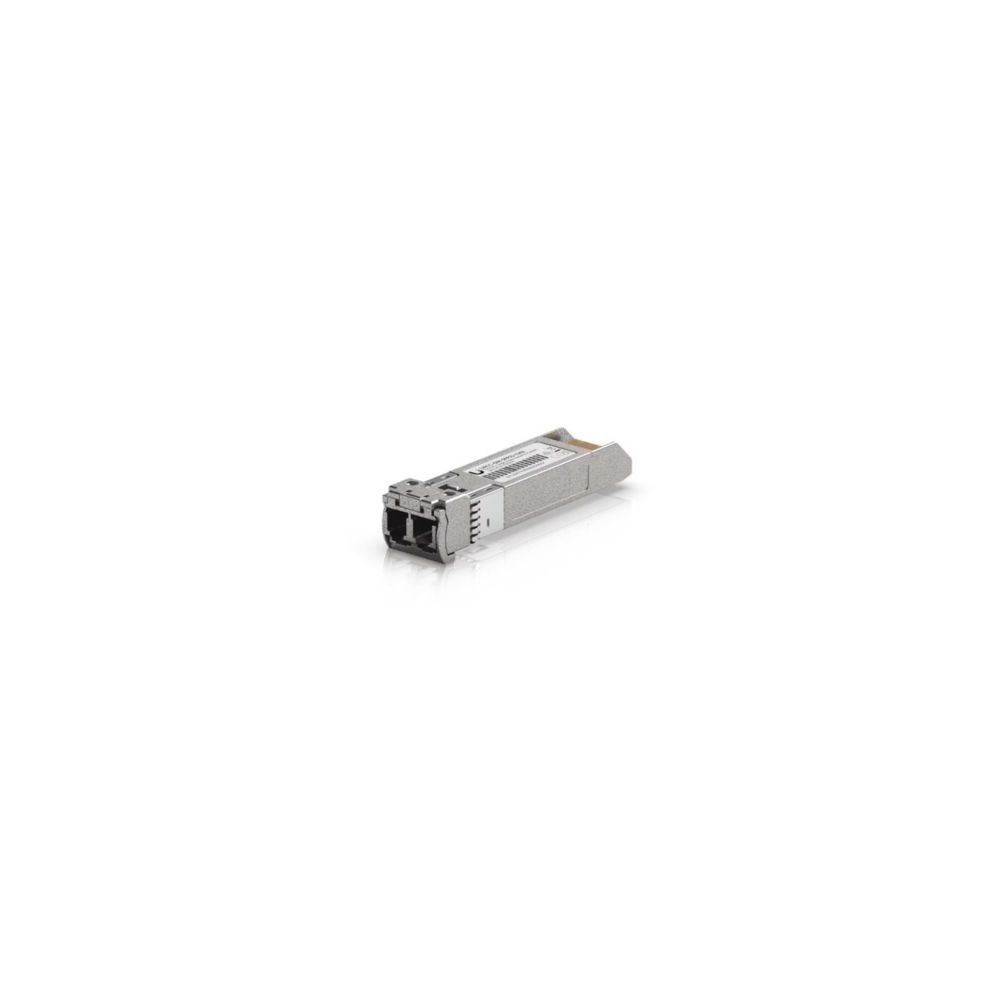

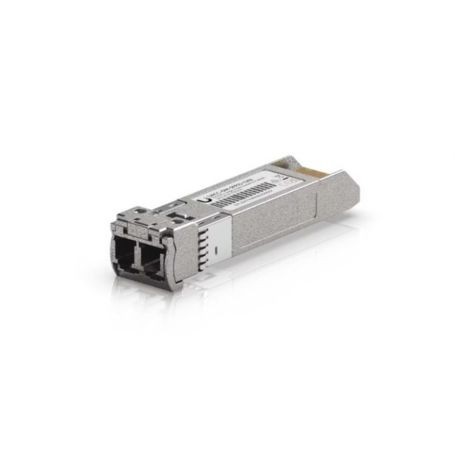

The Ubiquiti UACC-OM-SFP10-1310 is a 10G CWDM single-mode optical module designed for high-speed fiber networking over compatible SFP+ and SFP interfaces. This specific module operates at the 1310 nm wavelength and uses a duplex LC UPC optical connector.
Optical Connectivity
The module supports single-mode fiber connections with a maximum supported cable distance of 20 km. The duplex LC UPC interface provides separate transmit and receive optical paths for full-duplex network communication.
Technical Information
Ubiquiti specifies a data rate range of 9.95 to 11.3 Gbps and maximum power consumption of 1.2W. The UACC-OM-SFP10 family is designed for CWDM operation and modules must be paired with a compatible module using the corresponding wavelength for the intended optical link.
Compatibility
The UACC-OM-SFP10-1310 is compatible with SFP+ and SFP interfaces that support the required optical module specifications. The connected fiber infrastructure must use single-mode fiber and compatible duplex LC UPC connections.
Key Features
- 10G CWDM SFP+ optical transceiver
- 1310 nm operating wavelength
- Single-mode fiber support up to 20 km
- Duplex LC UPC optical connector
- Compatible with SFP+ and SFP interfaces
Applications
- 10G single-mode fiber network links
- Campus and building-to-building fiber connections
- Enterprise network backbone connections
- Long-distance optical uplinks using compatible CWDM infrastructure
- Network switches and equipment with compatible SFP/SFP+ ports
DC Supplies Product Note
For a CWDM link, verify the wavelength of the optical module installed at the opposite end. The UACC-OM-SFP10-1310 is specifically the 1310 nm variant and is intended for compatible CWDM deployments.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UACC-OM-SFP10-1310 |
| Product Type | 10G CWDM Single-Mode Optical Module |
| Product Family | UniFi |
| Form Factor | SFP+ |
| Supported Interfaces | SFP+, SFP |
| Supported Media | Single-Mode Fiber |
| Connector | Duplex LC UPC |
| Operating Wavelength | 1310 nm |
| Data Rate | 9.95–11.3 Gbps |
| Maximum Data Rate | 10 Gbps |
| Supported Cable Distance | 20 km (65,617 ft) |
| Operating Mode | Full Duplex |
| Maximum Power Consumption | 1.2W |
| Operating Temperature | 0–70°C (32–158°F) |
| Operating Humidity | 0–85% noncondensing |
| Pack Quantity | Single Unit |
| Depth | 2.60 in |
| Width | 1.20 in |
| Height | 0.40 in |
| Weight | Approx. 0.07 lb |
| Dimensions | 2.60 × 1.20 × 0.40 in (Depth × Width × Height) |
| UPC | 810084694718 |
FAQs
What is the UACC-OM-SFP10-1310?
It is a Ubiquiti 10G CWDM single-mode optical module in an SFP+ form factor operating at 1310 nm.
What fiber type does the module support?
The module is designed for single-mode fiber connections.
What connector does the UACC-OM-SFP10-1310 use?
It uses a duplex LC UPC optical connector.
What is the maximum supported distance?
Ubiquiti specifies a maximum supported cable distance of 20 km.
What is the maximum power consumption?
The maximum power consumption specified by Ubiquiti is 1.2W.
