Detailed Specifications
A 10G SFP+ transceiver for long-distance single-mode fiber networks.
Overview :

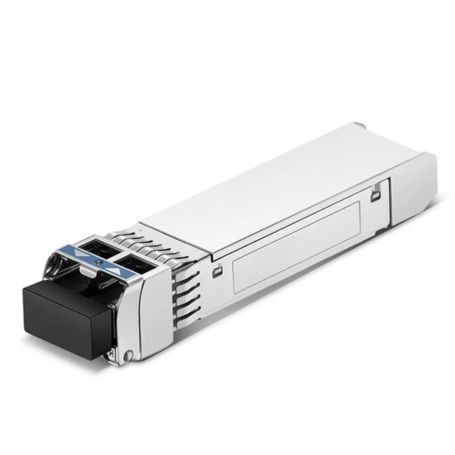

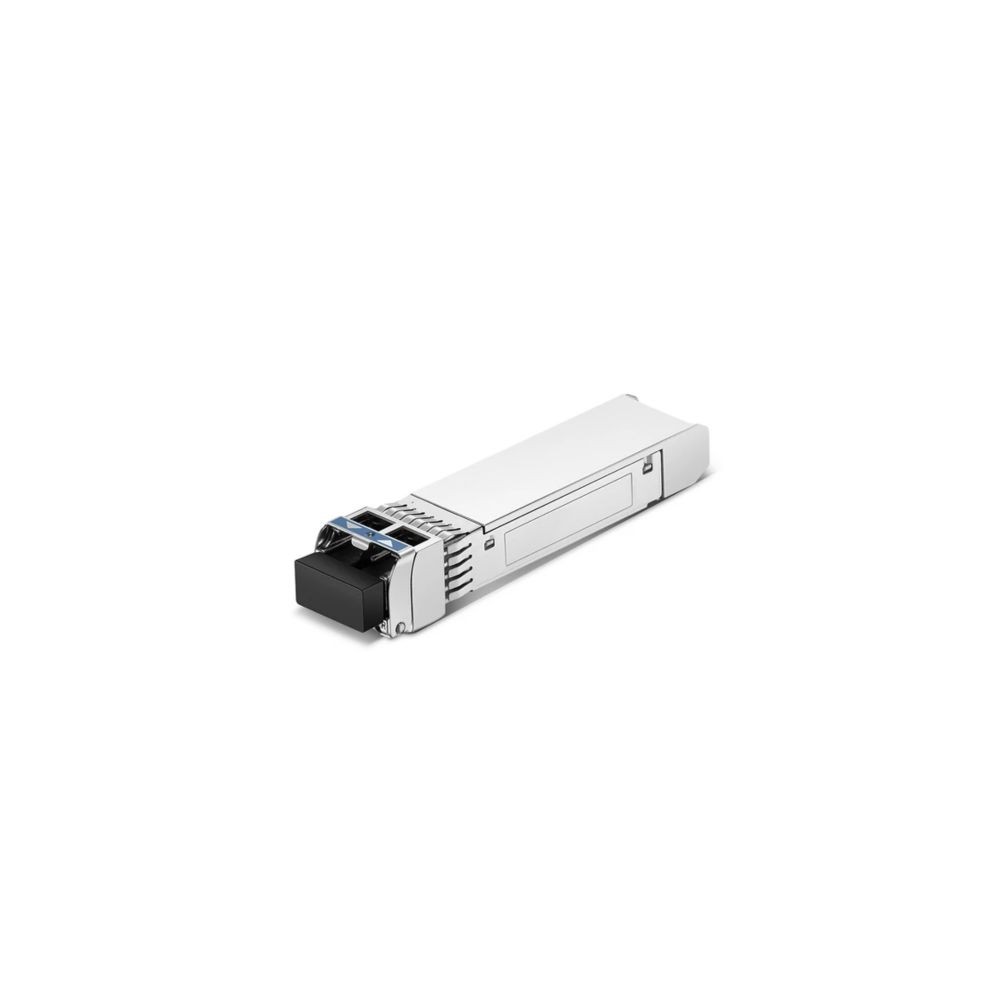

The Axiom AXG98258 is a 10GBASE-LR SFP+ optical transceiver designed for reliable long-distance 10 Gigabit Ethernet links over single-mode fiber. Fully compatible with Arubanetworking devices, it supports transmission distances of up to 10 kilometers, making it ideal for enterprise, data center, and campus backbone networking applications.
Features :
Operating at the 1310nm wavelength, the AXG98258 transceiver complies with the 10GBASE-LR standard and uses an LC duplex connector for standard fiber connectivity. It comes pre-configured with an application-specific code to ensure seamless OEM compatibility and plug-and-play deployment with Aruba devices and other MSA-compliant equipment. The transceiver supports Digital Optical Monitoring (DOM) for real-time monitoring of optical output power, temperature, and voltage, aiding effective network management and troubleshooting. Its hot-swappable design facilitates easy installation and replacement without network interruption. Designed for high-performance, energy-efficient networking, the module offers robust signal integrity and low power supply consumption suited for demanding IT infrastructures.
Product Key Features
- Fully compatible with Aruba network equipment.
- Supports 10 Gigabit Ethernet data rate.
- Operates at 1310nm wavelength on single-mode fiber.
- Transmission distance up to 10 kilometers.
- TAA compliant with pre-configured application-specific code.
Reliability & Performance :
The Axiom AXG98258 maintains excellent performance and signal quality across extended distances while adhering to strict environmental and quality standards. It supports hot-swappable functionality, minimizing downtime during maintenance or upgrades. The module's durable design ensures consistent operation in temperature ranges from 0°C to 70°C, making it suitable for enterprise and carrier-grade networks.
Key Features :
- Aruba-compatible 10GBASE-LR SFP+ transceiver.
- 10 Gbps speed, operable at 1310nm wavelength.
- Up to 10km reach on single-mode fiber.
- LC duplex connector interface.
- TAA compliant with application-specific OEM pre-configuration.
- Digital Optical Monitoring (DOM) supported.
Specifications :
| Specification | Details |
|---|
| Brand | Axiom |
| Model Number | AXG98258 |
| Product Type | 10GBASE-LR SFP+ Transceiver |
| Compatibility | Aruba |
| Data Rate | 10 Gbps |
| Wavelength | 1310 nm |
| Fiber Type | Single-mode fiber (SMF) |
| Maximum Transmission Distance | 10 kilometers |
| Connector Type | LC Duplex |
| Digital Optical Monitoring | Supported |
| Power Supply | 3.3 V |
| Form Factor | SFP+ |
| Operating Temperature Range | 0°C to 70°C |
| Weight | Approx. 16.8 g (0.04 lbs) |
| Compliance | RoHS, TAA compliant |
