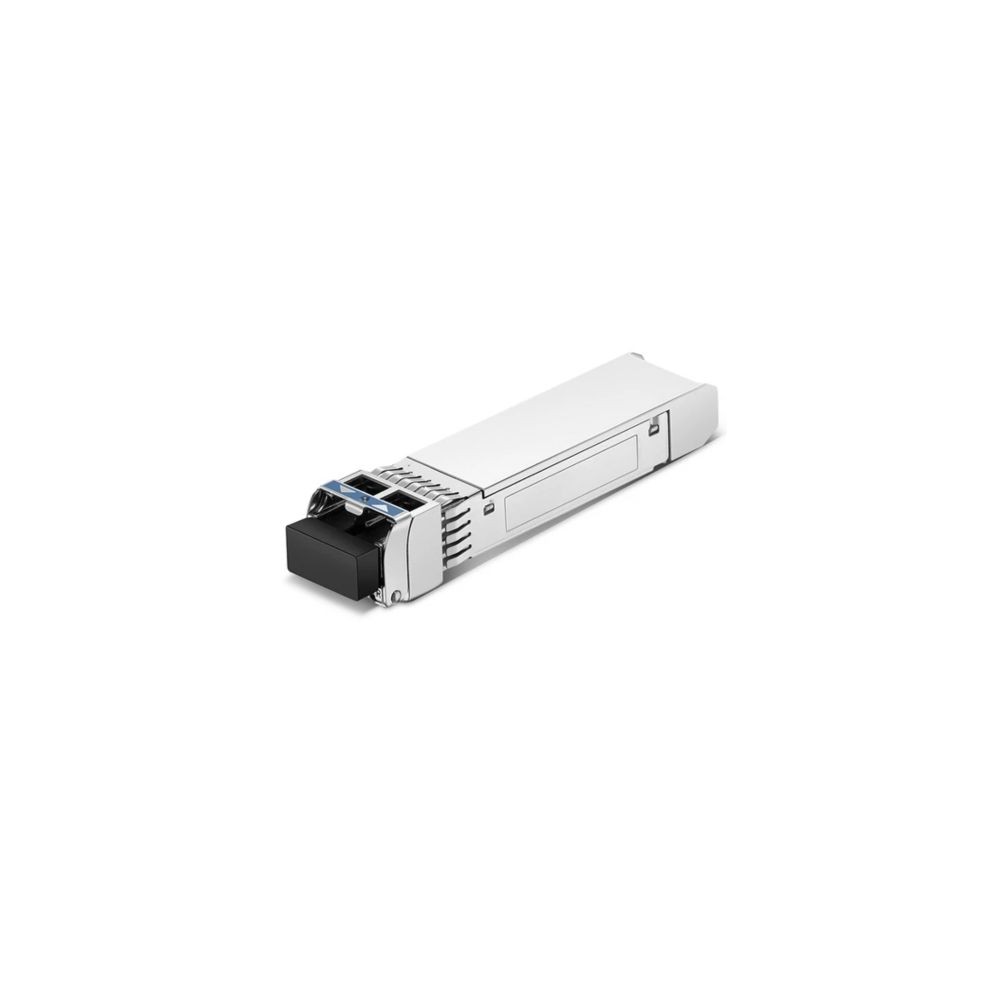

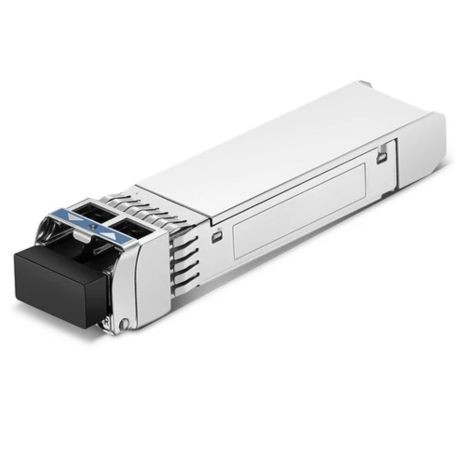

Axiom AXG99185 AXIOM 10GBASE-LR SFP+ Transceiver FOR ARUBA

AXG99185

New

10G SFP+ transceiver for 10km single-mode fiber
×




Detailed Specifications

Axiom AXG99185

Axiom 10GBASE-LR SFP+ for Aruba

A 10G SFP+ transceiver for long-distance single-mode fiber networks.

Overview :

The Axiom AXG99185 is a 10GBASE-LR SFP+ optical transceiver designed to provide long-distance 10 Gigabit Ethernet connectivity over single-mode fiber. Fully compatible with Aruba network devices, it supports transmissions up to 10 kilometers, making it ideal for enterprise, data center, and campus backbone applications requiring reliable and scalable high-speed links.

Features :

This transceiver operates at the 1310nm wavelength optimized for single-mode fiber, adhering to the 10GBASE-LR standard. It uses an industry-standard LC duplex connector for straightforward integration with Aruba and other MSA-compliant switches and routers. The module is pre-configured with an application-specific code, ensuring OEM compatibility and plug-and-play functionality. The AXG99185 supports Digital Optical Monitoring (DOM) for real-time diagnostics of key parameters such as optical power and temperature, enabling effective network management. Its hot-swappable design allows for easy installation or replacement without interrupting network services. Designed for demanding IT environments, this transceiver ensures low power supply consumption, high signal integrity, and robust performance over extended distances.

Product Key Features

  • Fully compatible with Aruba networking equipment.
  • Supports 10 Gigabit Ethernet data rate.
  • Operates at 1310nm wavelength on single-mode fiber.
  • Transmission distance support up to 10 kilometers.
  • TAA compliant for enterprise and government use.

Reliability & Performance :

Engineered to meet stringent industry and environmental standards, the Axiom AXG99185 offers stable and energy-efficient operation. It maintains excellent signal quality for consistent data transmission and supports hot-swappable operation to minimize network downtime during upgrades or maintenance. The module's durable construction ensures long-term reliability in enterprise and carrier-grade networks.

Key Features :

  • Aruba-compatible 10GBASE-LR SFP+ transceiver.
  • 10 Gbps speed, 10GBASE-LR standard.
  • 1310nm wavelength for single-mode fiber.
  • Up to 10km transmission distance.
  • LC duplex connector interface.
  • TAA compliant with DOM support.

Specifications :

SpecificationDetails
Brand Axiom
Model Number AXG99185
Product Type 10GBASE-LR SFP+ Transceiver
Compatibility Aruba
Data Rate 10 Gbps
Wavelength 1310 nm
Fiber Type Single-mode fiber (SMF)
Maximum Transmission Distance 10 kilometers
Connector Type LC Duplex
Digital Optical Monitoring Supported
Power Supply 3.3 V
Form Factor SFP+
Operating Temperature Range 0°C to 70°C
Weight Approx. 16.8 g (0.04 lbs)
Compliance RoHS, TAA compliant
