Detailed Specifications
A 10G bidirectional SFP+ transceiver for long-distance single-mode fiber.
Overview :

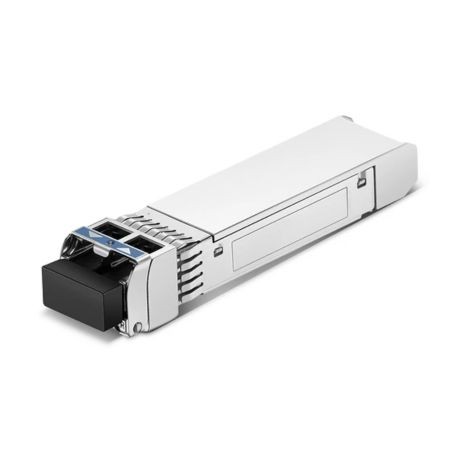

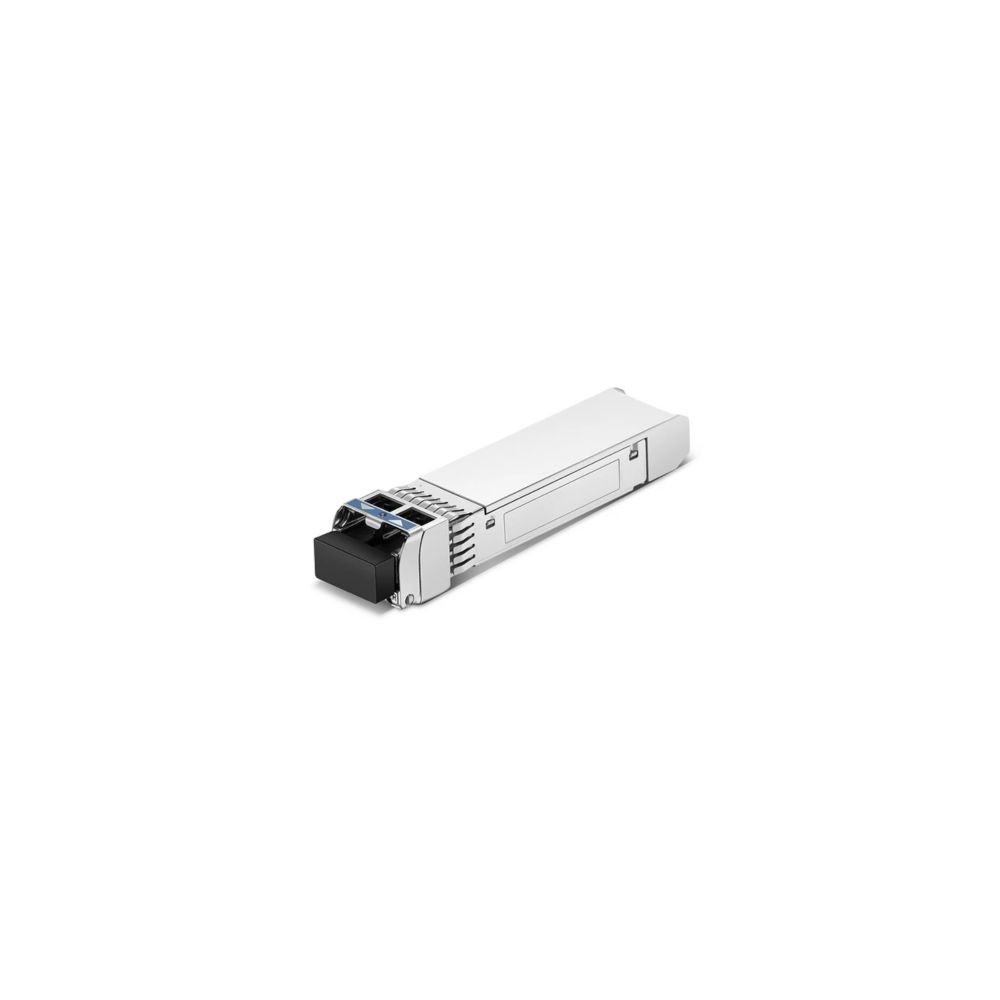

The Axiom AXG98774 is a 10GBASE-BX40-D SFP+ optical transceiver designed for downstream simplex bidirectional communication over single-mode fiber. This Aruba-compatible module supports 10 Gigabit Ethernet at distances up to 40 kilometers, making it suitable for long-reach enterprise and carrier networks utilizing a single strand of fiber for bidirectional data transmission.
Features :
This transceiver operates within the 10GBASE-BX40-D standard, transmitting at a 1330nm wavelength and receiving at 1270nm, supporting bidirectional data flow on a single fiber strand through an LC simplex connector. This bidirectional technology doubles fiber utilization while minimizing cabling complexity and cost. Its compliance with Multi-Source Agreement (MSA) standards ensures compatibility with Aruba and other major networking equipment vendors. The module supports Digital Diagnostic Monitoring (DDM), allowing network operators to monitor vital parameters like optical power and temperature for proactive network maintenance. The AXG98774's hot-swappable design allows non-disruptive installation or replacement, proving ideal for maintaining high uptime in critical network environments.
Product Key Features
Reliability & Performance :
The Axiom AXG98774 transceiver is engineered for consistent high performance, reliability, and low power supply consumption. It operates efficiently within a temperature range of 0°C to 70°C and meets industry environmental standards. Its sturdy design supports long-term deployment in enterprise and carrier-grade networks, ensuring stable connectivity over extended distances. The module's hot-swappable capability allows seamless upgrades and replacements, minimizing downtime.
Key Features :
- Aruba-compatible 10GBASE-BX40-D SFP+ transceiver.
- 10 Gbps speed, bidirectional downstream with 1330nm Tx / 1270nm Rx.
- LC simplex connector interface for single-mode fiber.
- Supports up to 40km transmission distance.
- Hot-swappable with Digital Diagnostic Monitoring (DDM).
- MSA compliant for broad interoperability.
Specifications :
| Specification | Details |
|---|
| Brand | Axiom |
| Model Number | AXG98774 |
| Product Type | 10GBASE-BX40-D SFP+ Transceiver |
| Compatibility | Aruba |
| Data Rate | 10 Gbps |
| Transmission Type | Bidirectional Downstream |
| Wavelength (Tx/Rx) | 1330nm Tx / 1270nm Rx |
| Fiber Type | Single-mode fiber (SMF) |
| Maximum Transmission Distance | 40 kilometers |
| Connector Type | LC Simplex |
| Digital Diagnostic Monitoring | Supported |
| Power Supply | 3.3 V |
| Form Factor | SFP+ |
| Operating Temperature Range | 0°C to 70°C |
| Hot-swappable | Yes |
