Axiom AXG102464 Aruba Compatible 10GBASE-BX40-D SFP+ Downstream Transceiver View larger
Previous Next

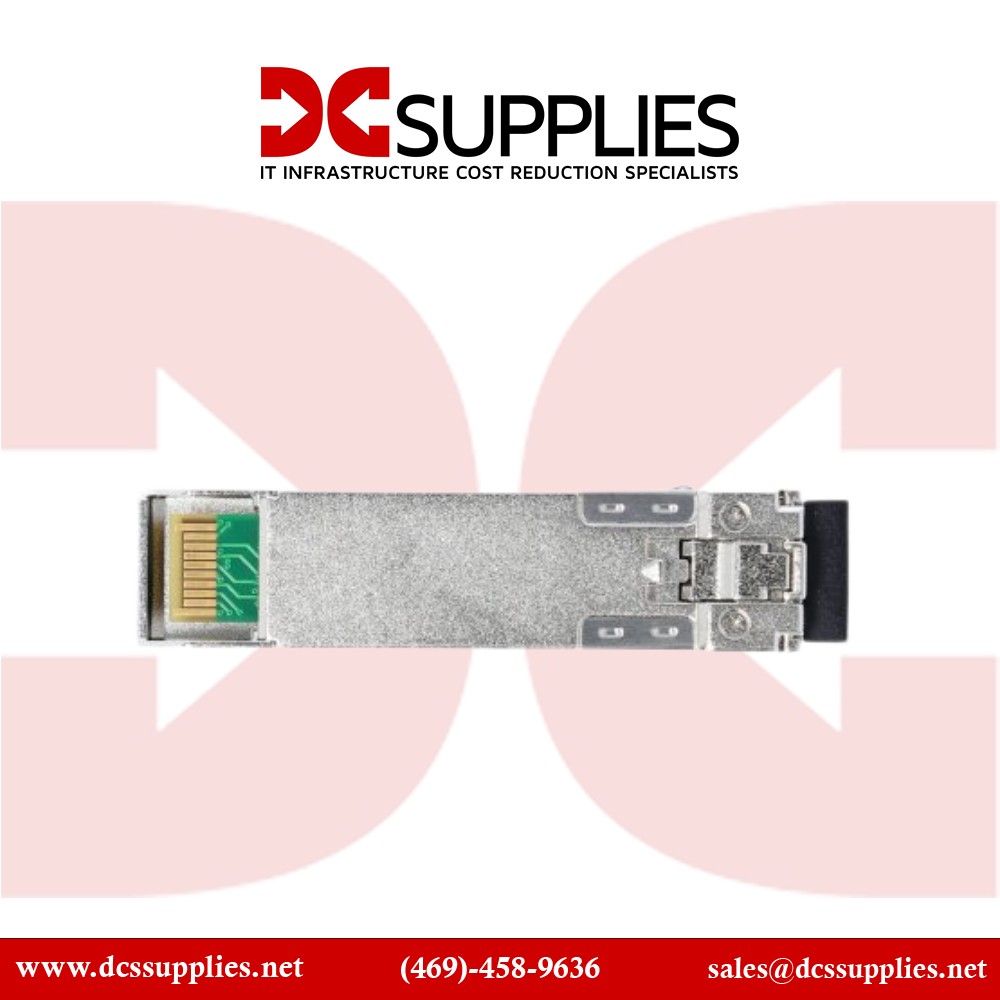

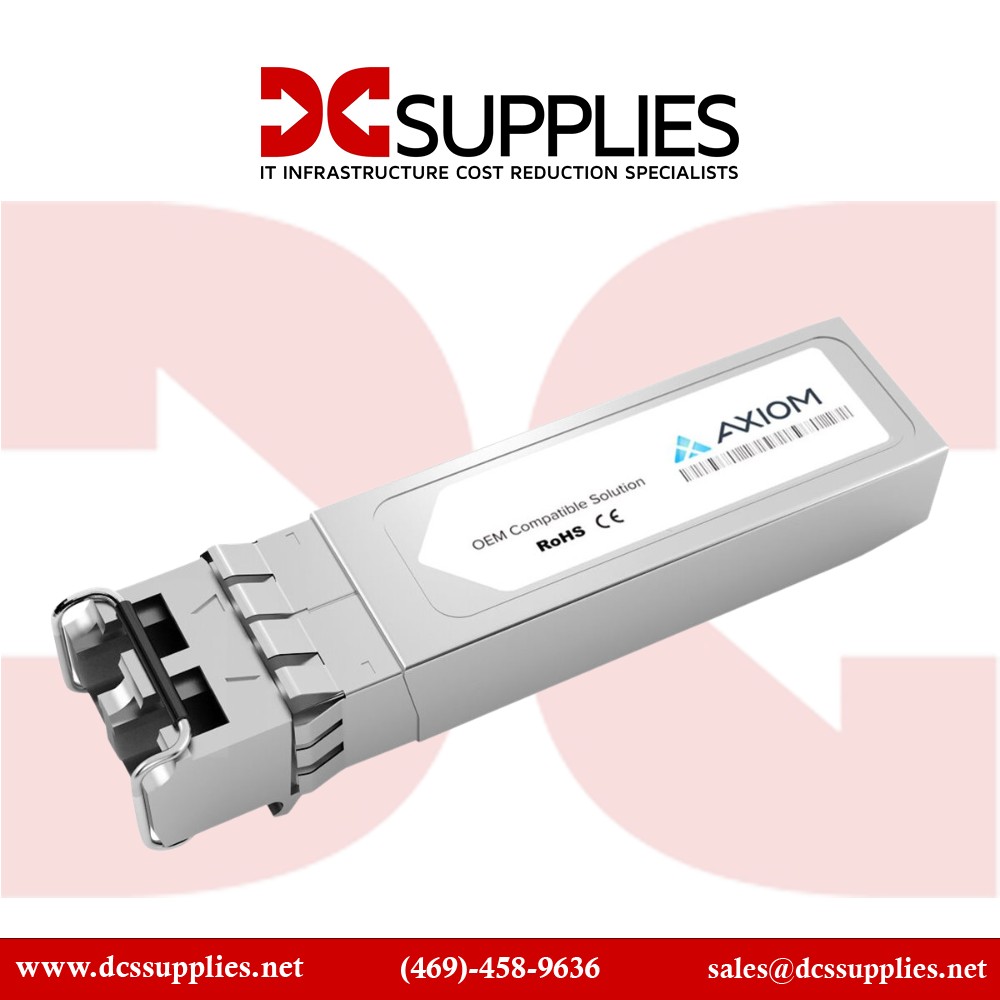

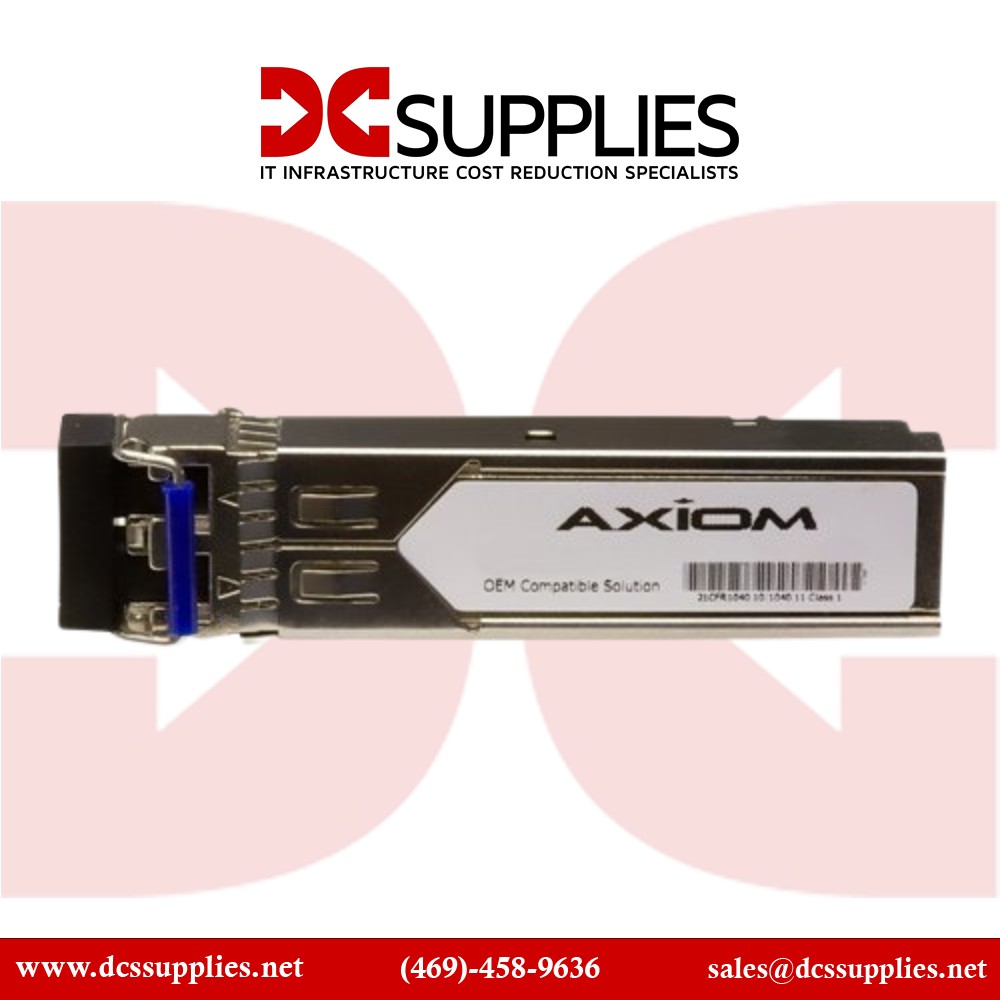

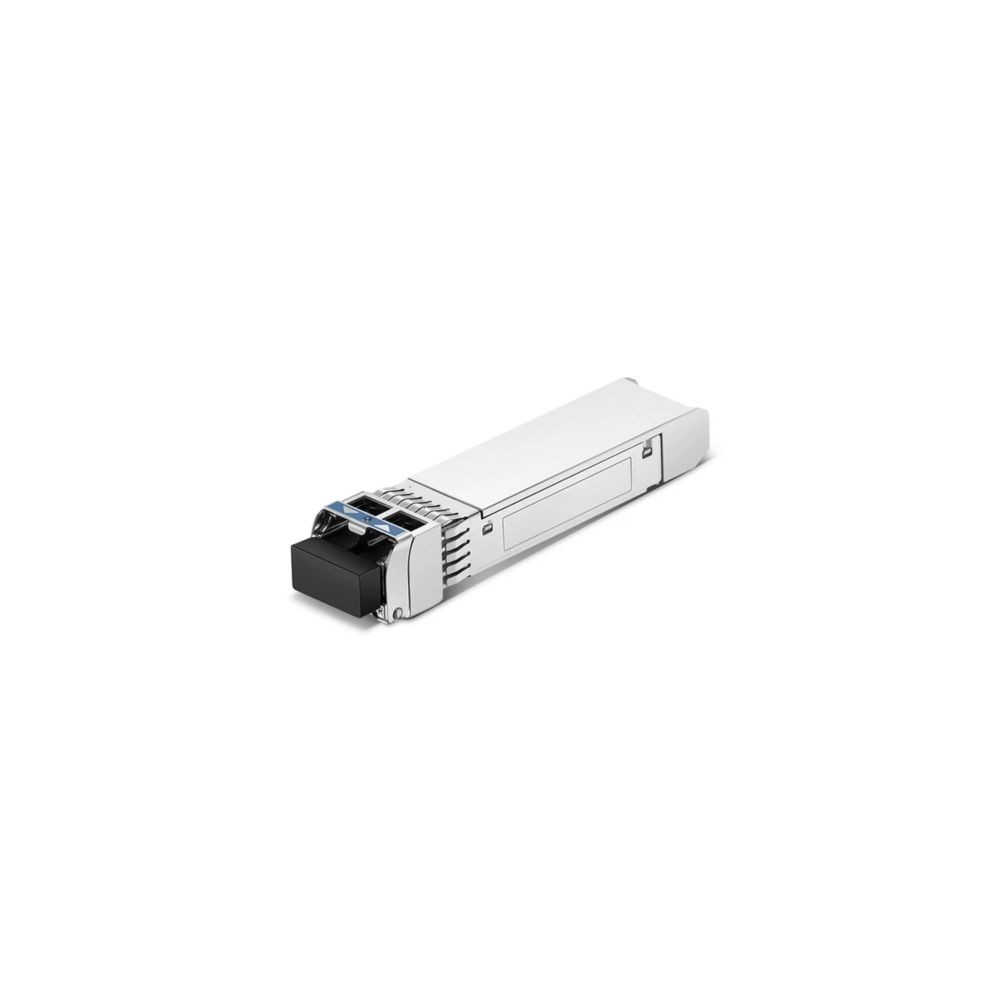

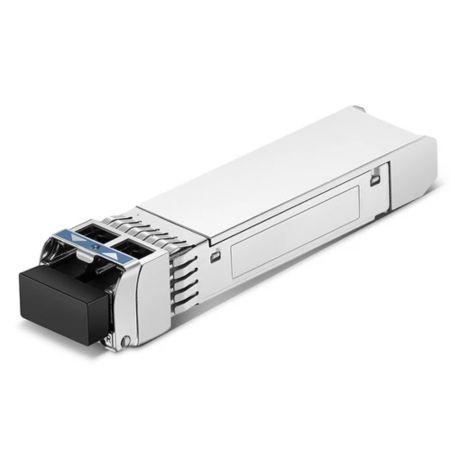

Axiom AXG102464 Aruba Compatible 10GBASE-BX40-D SFP+ Downstream Transceiver

AXG102464

New

10G SFP+ bidirectional downstream transceiver for 40km SMF.
×




Detailed Specifications

Axiom AXG102464

Aruba Compatible 10GBASE-BX40-D SFP+ Downstream Transceiver

A 10G bidirectional SFP+ transceiver for long-distance single-mode fiber.

Overview :

The Axiom AXG102464 is a 10GBASE-BX40-D SFP+ optical transceiver designed for downstream simplex bidirectional 10 Gigabit Ethernet communication over single-mode fiber. Fully compatible with Aruba networking equipment, this module supports distances up to 40 kilometers over a single strand of fiber, making it ideal for long-reach enterprise and carrier networks.

Features :

This transceiver supports the 10GBASE-BX40-D standard, operating as the downstream device with a 1330nm transmit wavelength and a 1270nm receive wavelength. Utilizing a simplex LC connector, it provides bidirectional data transmission over one fiber, optimizing fiber infrastructure by halving fiber cable requirements. The module is compliant with Multi-Source Agreement (MSA) standards to ensure broad interoperability with Aruba and other vendor equipment. It supports Digital Diagnostic Monitoring (DDM), allowing users to monitor parameters such as transmit and receive power, temperature, and voltage in real time. Designed for hot-swappable installation, the AXG102464 facilitates easy deployment and maintenance without interrupting network services.

Product Key Features

Reliability & Performance :

Axiom AXG102464 is engineered for durability and low power supply consumption, maintaining excellent signal integrity across 40km links. It is built to meet environmental standards and operates efficiently in various temperature ranges (0°C to 70°C), ensuring reliable performance for critical network infrastructure. The module’s hot-swappable capability allows seamless upgrades and replacements, minimizing downtime.

Key Features :

  • Aruba-compatible 10GBASE-BX40-D SFP+ transceiver.
  • 10 Gbps speed, bidirectional downstream (1330nm Tx / 1270nm Rx).
  • LC simplex connector for single-mode fiber.
  • Supports up to 40km transmission distance.
  • Hot-swappable with Digital Diagnostic Monitoring (DDM).
  • MSA compliant for interoperability.

Specifications :

SpecificationDetails
Brand Axiom
Model Number AXG102464
Product Type 10GBASE-BX40-D SFP+ Transceiver
Compatibility Aruba
Data Rate 10 Gbps
Transmission Type Bidirectional Downstream
Wavelength (Tx/Rx) 1330nm Tx / 1270nm Rx
Fiber Type Single-mode fiber (SMF)
Maximum Transmission Distance 40 kilometers
Connector Type LC Simplex
Digital Diagnostic Monitoring Supported
Power Supply 3.3 V
Form Factor SFP+
Operating Temperature Range 0°C to 70°C
Hot-swappable Yes
