Detailed Specifications
A 10G bidirectional SFP+ transceiver for long-distance single-mode fiber.
Overview :

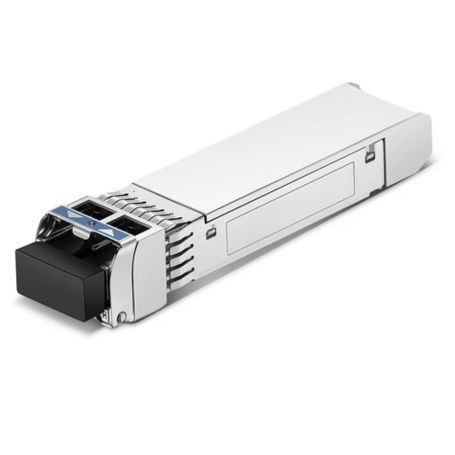

The Axiom AXG102463 10GBASE-BX40-U SFP+transceiver is designed for upstream simplex bidirectional 10 Gigabit Ethernet communication over single-mode fiber. Compatible with Aruba network hardware, this module enables high-speed data transmission at distances up to 40 kilometers over a single strand of fiber, optimizing cabling infrastructure while maintaining high network performance.
Features :
This bidirectional SFP+ transceiver supports 10GBASE-BX40-U standard, transmitting at 1270nm and receiving at 1330nm wavelengths via a single simplex LC fiber connector. The bidirectional technology allows for data communication in both directions over a single fiber strand, effectively doubling fiber utilization and reducing infrastructure costs. The transceiver is fully compliant with MSA standards, ensuring broad interoperability with Aruba and other compatible equipment. It supports Digital Diagnostic Monitoring (DDM) for real-time monitoring of parameters such as optical power, voltage, current, and temperature, aiding in proactive network management. This module is hot-swappable and designed for easy installation and maintenance, enabling minimal disruptions in enterprise and service provider environments requiring long-distance fiber links.
Product Key Features
- Compatible with Aruba and other networking devices.
- Supports 10 Gigabit Ethernet data rate.
- Uses 1270nm transmit / 1330nm receive wavelengths.
- Supports transmission distances up to 40 kilometers.
Reliability & Performance :
Axiom AXG102463 is engineered for reliable long-term operation with excellent signal integrity and low power supply consumption, supporting energy-efficient network deployments. The durable design meets environmental standards for temperature and shock resistance, ensuring optimal performance in demanding data center or carrier networks. Hot-swappable capability facilitates efficient upgrades and repairs without impacting network uptime.
Key Features :
- Aruba-compatible 10GBASE-BX40-U SFP+ transceiver.
- 10 Gbps speed, bidirectional 1270nm Tx / 1330nm Rx wavelength.
- LC simplex connector interface.
- Supports up to 40km single-mode fiber.
- Hot-swappable and MSA compliant.
- Digital Diagnostic Monitoring (DDM) support.
Specifications :
| Specification | Details |
|---|
| Brand | Axiom |
| Model Number | AXG102463 |
| Product Type | 10GBASE-BX40-U SFP+ Transceiver |
| Compatibility | Aruba |
| Data Rate | 10 Gbps |
| Transmission Type | Bidirectional (BiDi) |
| Wavelength (Tx/Rx) | 1270nm Tx / 1330nm Rx |
| Fiber Type | Single-mode fiber (SMF) |
| Maximum Transmission Distance | 40 kilometers |
| Connector Type | LC Simplex |
| Digital Diagnostic Monitoring | Supported |
| Power Supply | 3.3 V |
| Form Factor | SFP+ |
| Operating Temperature Range | 0°C to 70°C |
| Hot-swappable | Yes |
