Detailed Specifications
A 10G SFP+ transceiver for long-distance single-mode fiber.
Overview :

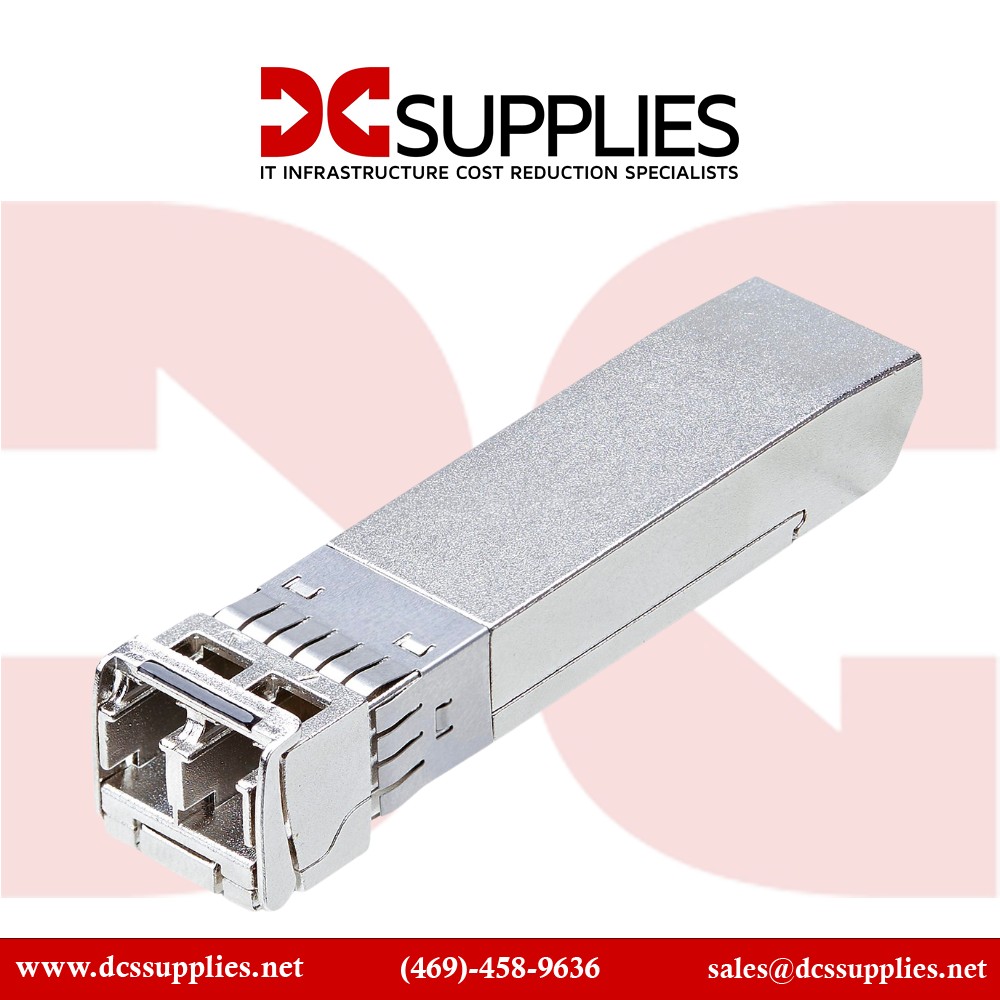

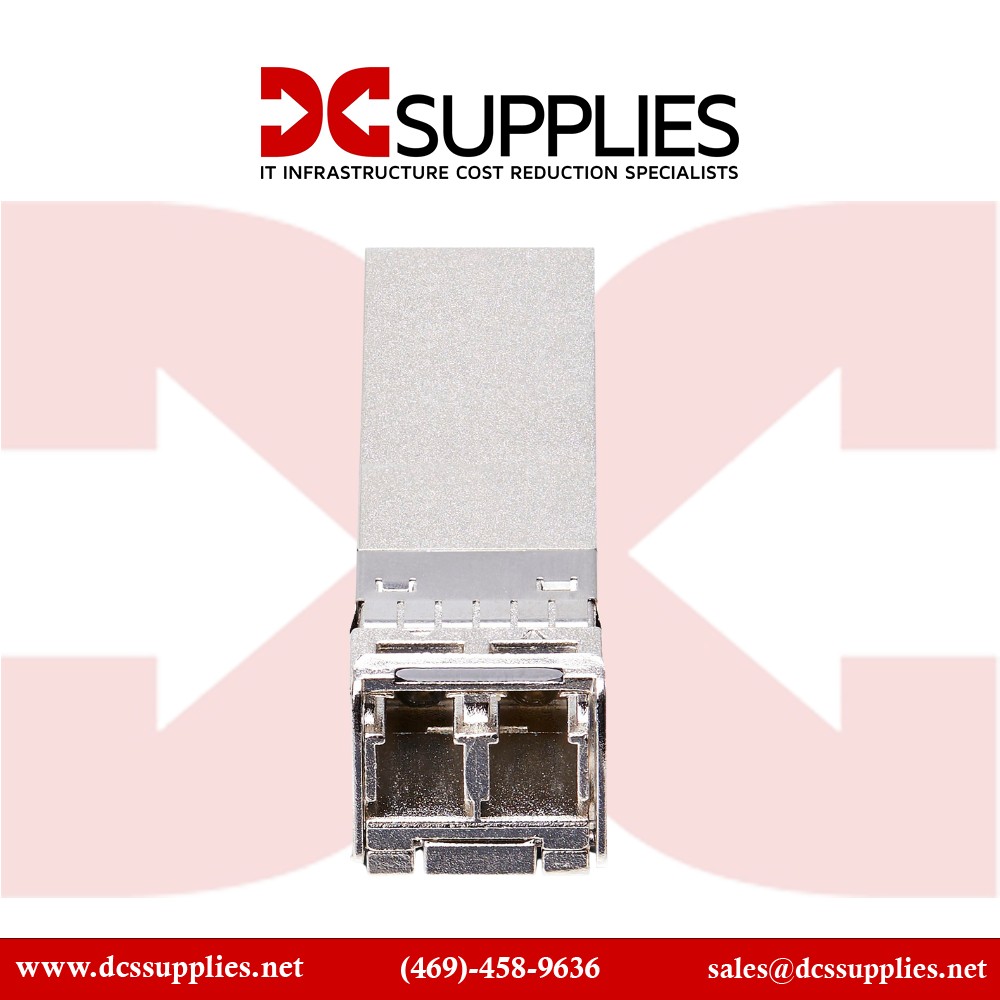

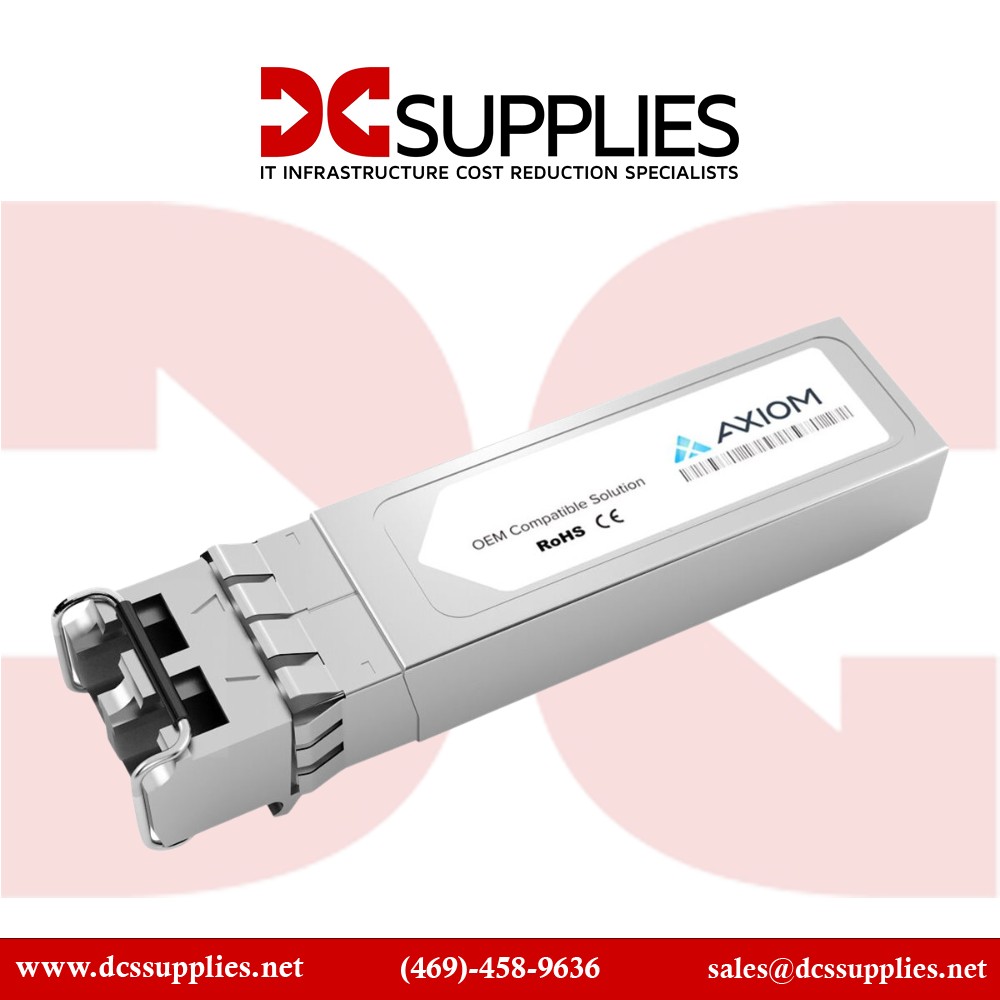

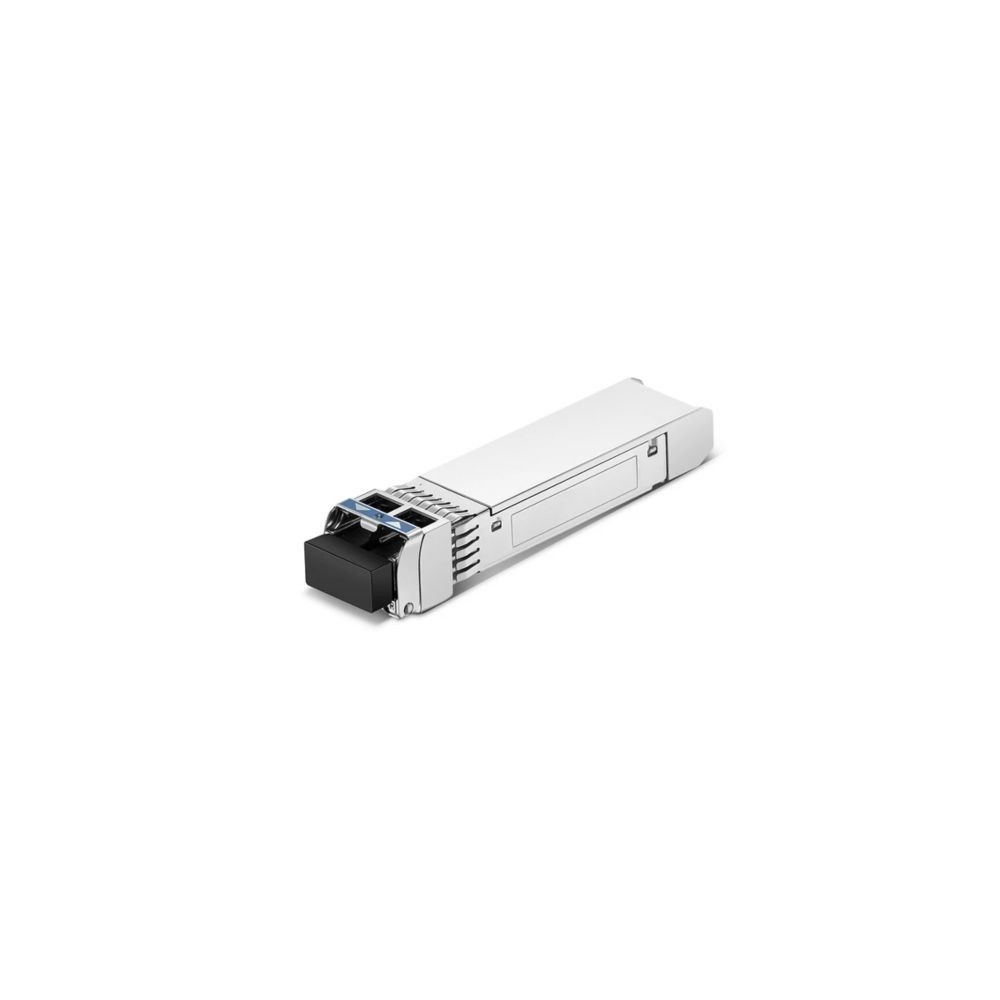

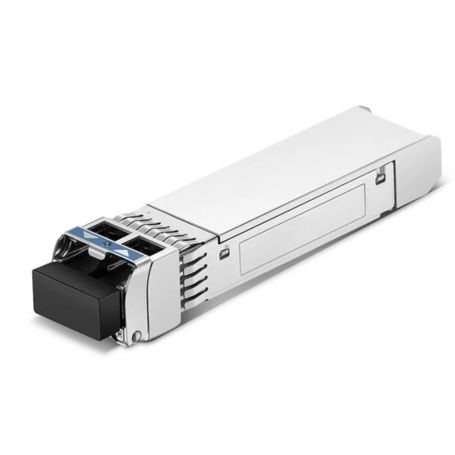

The Axiom AXG103110 is a 10GBASE-LR SFP+transceiver designed to support long-distance single-mode fiber applications compatible with Arubanetworking devices. This module delivers reliable 10 Gigabit Ethernet connectivity over distances of up to 10 kilometers, making it ideal for enterprise networks, data centers, and campus backbone links requiring high-speed, extended reach.
Features :
Operating at 1310nm wavelength, the Axiom AXG103110 transceiver is optimized for single-mode fiber, supporting the 10GBASE-LR Ethernet standard. Featuring an LC duplex connector, it ensures broad compatibility with Aruba and other MSA-compliant switches and routers. The module is pre-configured for plug-and-play installation, simplifying network upgrades and expansions. The transceiver supports Digital Optical Monitoring (DOM), enabling network operators to monitor parameters such as optical output power, temperature, and voltage in real time. Its hot-swappable design allows easy installation or replacement without causing network downtime, which is essential for maintaining critical infrastructure.
Product Key Features
Reliability & Performance :
Built to meet industry standards, the Axiom AXG103110 provides durable and consistent performance with high signal integrity. Its low power supply consumption helps reduce cooling needs in dense networking environments. The module complies with environmental and safety regulations, including Trade Agreements Act (TAA) compliance, making it suitable for government and commercial use.
Key Features :
- Aruba-compatible 10GBASE-LR SFP+ transceiver.
- 10 Gbps speed, 10GBASE-LR standard.
- 1310nm wavelength for single-mode fiber.
- Up to 10km transmission distance.
- LC duplex connector interface.
- TAA compliant and supports DOM.
Specifications :
| Specification | Details |
|---|
| Brand | Axiom |
| Model Number | AXG103110 |
| Product Type | 10GBASE-LR SFP+ Transceiver |
| Compatibility | Aruba |
| Data Rate | 10 Gbps |
| Wavelength | 1310 nm |
| Fiber Type | Single-mode fiber (SMF) |
| Maximum Transmission Distance | 10 kilometers |
| Connector Type | LC Duplex |
| Digital Optical Monitoring | Supported |
| Power Supply | 3.3 V |
| Form Factor | SFP+ |
| Operating Temperature Range | 0°C to 70°C |
| Dimensions (L x W x H) | Approx. 56 x 13.4 x 8.5 mm |
| Weight | Approx. 16.8 g (0.04 lbs) |
| Compliance | RoHS, TAA Compliant |
