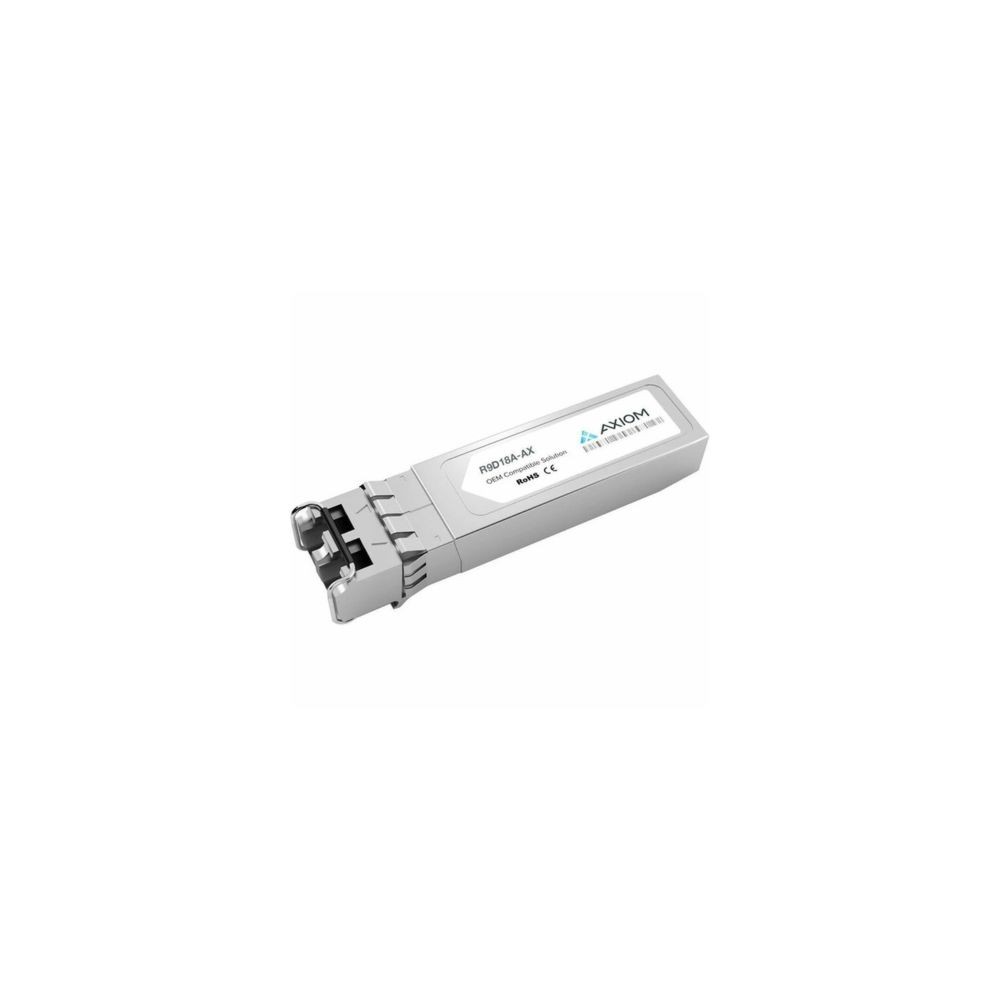

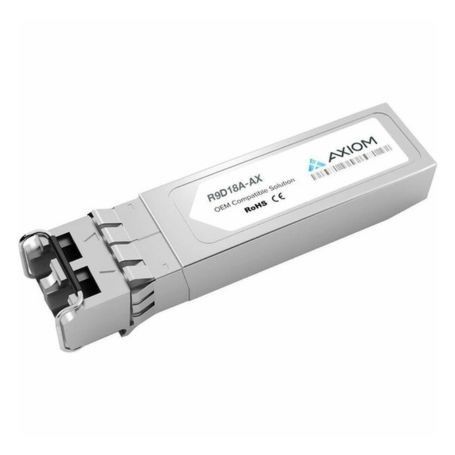

Axiom R9D18A-AX Aruba Compatible 10GBASE-SR SFP+ LC 850nm 300m Transceiver

Axiom R9D18A-AX

Aruba Compatible 10GBASE-SR SFP+Transceiver

A 10G transceiver for multi-mode fiber up to 300m.

Overview :

The Axiom R9D18A-AX is a 10GBASE-SR SFP+ optical transceiver fully compatible with Aruba network equipment. It is engineered to deliver high-bandwidth 10 Gigabit Ethernet connectivity over multi-mode fiber for distances up to 300 meters, ideal for data centers, enterprise LANs, and high-speed campus networks.

Features :

This transceiver utilizes an 850nm VCSEL laser optimized for multi-mode fiber transmission, enabling reliable, high-speed data rates of 10 Gbps. The 10GBASE-SR protocol ensures efficient operation for short-range networking applications, including server-to-switch and switch-to-switch connectivity within buildings or data centers. Its LC duplex interface is widely supported and easy to install in compatible SFP+ ports, enabling flexible network upgrades and expansions. The module supports Digital Optical Monitoring (DOM) for real-time diagnostics of parameters like optical power and temperature, improving network management and troubleshooting. In IT environments, the Axiom R9D18A-AX enhances network performance by providing stable, low-latency connectivity with simplified maintenance through hot-swappable capability. It works well in multi-vendor setups due to its Aruba compatibility and adherence to industry standards.

Product Key Features

• Compatible with Aruba 10G network devices.
• 10GBASE-SR standard for 10 Gigabit Ethernet.
• 850nm wavelength optimized for multi-mode fiber.
• Supports transmission distances up to 300 meters.

---

Reliability & Performance :

Designed for durability and long-term reliability, this transceiver ensures consistent performance with robust error handling and signal integrity. Its low power supply consumption helps maintain energy efficiency in dense network deployments. The module supports hot-plug installation, reducing downtime during replacements or upgrades, and operates within a wide temperature range suitable for typical data center conditions.

Key Features :

• Aruba-compatible 10G SFP+ transceiver.
• 10GBASE-SR, 10 Gbps data rate.
• 850nm wavelength for multi-mode fiber.
• 300m maximum transmission distance.
• LC duplex connector interface.
• Supports Digital Optical Monitoring (DOM).

Specifications :

Specification	Details
Brand	Axiom
Model Number	R9D18A-AX
Product Type	10GBASE-SR SFP+ Transceiver
Compatibility	Aruba
Data Rate	10 Gbps
Wavelength	850 nm
Fiber Type	Multi-mode fiber (MMF)
Maximum Transmission Distance	300 meters
Connector Type	LC Duplex
Digital Optical Monitoring	Supported
Power Supply	3.3 V
Form Factor	SFP+
Operating Temperature Range	0°C to 70°C
Dimensions (L x W x H)	Approx. 56 x 13.4 x 8.5 mm
Weight	Approx. 16.8 g (0.04 lbs)
Compliance	RoHS, CE, FDA Class 1 Laser
