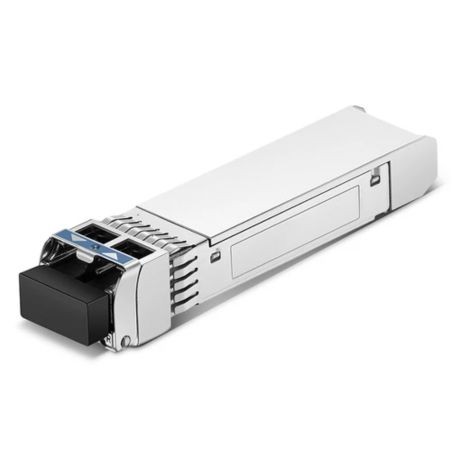

Axiom Q8N52A-AX Aruba Compatible 1000BASE-LX Extended Temp SFP LC 1310nm 10km Transceiver

Q8N52A-AX

New

Extended temperature 1000BASE-LX SFP transceiver for Aruba with 10km reach.
×




Detailed Specifications

Axiom Q8N52A-AX

Aruba Compatible 1000BASE-LX Extended Temp SFP LC 1310nm 10km Transceiver

A rugged, long-range Gigabit transceiver built for reliable performance in harsh environments.

Overview :

The Axiom Q8N52A-AX is a 1000BASE-LX SFP transceiver module specifically designed to provide robust Gigabit Ethernet connectivity over single-mode fiber, even in demanding conditions. Its extended operating temperature range makes it an ideal solution for deployment in industrial, outdoor, and campus environments where temperature fluctuations are a concern. With its impressive 10-kilometer reach, this module is a dependable choice for connecting remote buildings or network segments over long distances.

Features :

This transceiver operates at a 1310nm wavelength and supports a data rate of 1 Gbps. It uses an LC duplex connector, which is standard for single-mode fiber installations. The hot-pluggable SFP form factor ensures easy and convenient installation or replacement without the need to power down your equipment. The module is fully compliant with IEEE 802.3z and MSA standards, ensuring broad compatibility with a wide range of networking devices, while being pre-configured for seamless interoperability with Aruba equipment.

Product Key Features

  • 1000BASE-LX SFP for Gigabit Ethernet.
  • 10km maximum reach over single-mode fiber.
  • Designed for an extended operating temperature range.
  • Hot-pluggable for easy installation.
  • Fully compatible with Aruba hardware.

Reliability & Performance :

The Axiom Q8N52A-AX delivers consistent, low-latency performance with a focus on long-term reliability. Its robust construction and quality components ensure it can withstand harsh thermal environments. The module supports Digital Optical Monitoring (DOM) for real-time monitoring of critical parameters, enabling proactive network management. Each module undergoes rigorous testing to guarantee reliability and seamless integration into your network.

Key Features :

  • Aruba-compatible 1000BASE-LX SFP transceiver.
  • Extended temperature support for a wider range of deployment scenarios.
  • 1310nm wavelength with 10km maximum reach.
  • Duplex LC connector.
  • Hot-swappable, small form-factor pluggable (SFP).
  • IEEE 802.3z and MSA compliant.
  • Energy-efficient and durable.

Specifications :

SpecificationDescription
Model Number Q8N52A-AX
Type 1000BASE-LX SFP Optical Transceiver
Data Rate 1 Gbps
Wavelength 1310 nm
Maximum Distance 10 kilometers
Connector Type LC Duplex
Operating Temperature Extended (commercial and industrial)
Power Supply Voltage +3.3 V
Form Factor SFP
Compliance IEEE 802.3z, MSA, RoHS
