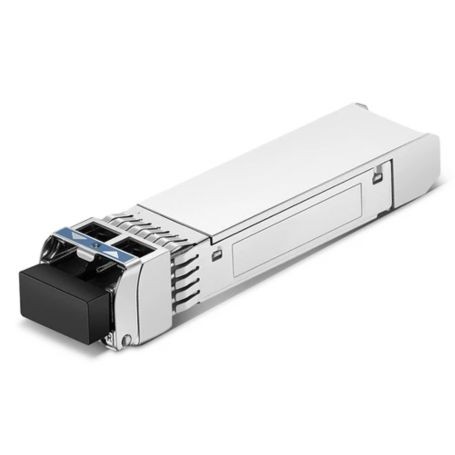

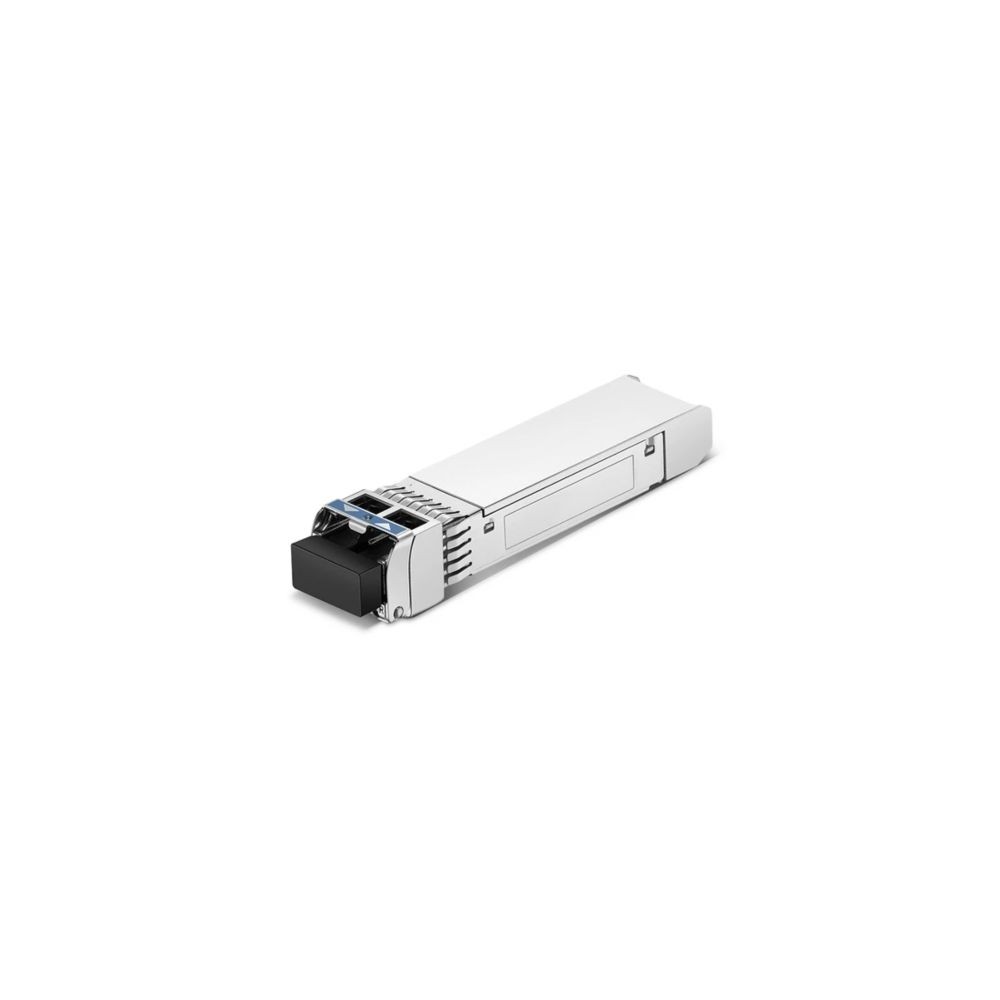

Axiom JW091A-AX 10GBase-SR SFP+ 850nm 300m LC MM Transceiver Aruba HPE JW091A

Axiom Aruba HPE JW091A

10GBase-SRSFP+ 850nm 300m LC MM Transceiver

A high-performance transceiver for 10 Gigabit Ethernet on multimode fiber up to 300m.

Overview :

The AxiomAruba HPE JW091A is a high-performance 10GBase-SRSFP+transceiver designed for fast and reliable data transmission over multimode fiber optic networks. Ideal for enterprise IT environments, data centers, and service providers, it delivers high-speed connectivity with low latency. This transceiver ensures seamless integration with Aruba and HPE network equipment, providing a cost-effective and reliable solution for short to medium-range links.

Features :

This transceiver leverages vertical-cavity surface-emitting laser (VCSEL) technology operating at an 850nm wavelength for optimized signal intensity and quality. Designed to transmit data up to 300 meters on OM3 multimode fiber, it is perfect for short to medium range connectivity within LANs and data centers. The module meets Multi-Source Agreement (MSA) standards, guaranteeing broad compatibility across network devices that supportSFP+ form factor. The device integrates a PIN photodiode with a trans-impedance amplifier (TIA) for sensitive and accurate opticalsignal detection. Its duplex LC interface ensures easy plug-and-play connectivity with fiber optic cables. Additionally, built-in Digital Optical Monitoring (DOM) enables real-time diagnostic data access, providing network administrators with critical insight into operational parameters like temperature, voltage, signal strength, and laser current. The JW091A transceiver's compact SFP+ form factor allows for hot-swappable deployment in switches, routers, and storage systems, enhancing flexibility and minimizing network downtime.

Product Key Features

• Supports 10 Gigabit Ethernet data rate up to 10.3 Gbps.
• Operates at 850nm wavelength using multimode fiber (MMF).
• Maximum transmission distance of 300 meters over OM3 fiber.
• Duplex LC connector for fiber optic connectivity.
• Equipped with VCSEL laser transmitter and PIN photodiode receiver.
• Supports Digital Optical Monitoring (DOM) diagnostics.

---

Reliability & Performance :

Constructed with high-quality components, this transceiver guarantees durability and consistent performance under demanding network loads. It complies with Class 1 laser safety standards and RoHS environmental regulations, ensuring safe and eco-friendly operation. The module's digital diagnostics support efficient troubleshooting and maintenance. Its low power consumption and minimal heat output contribute to network efficiency and reliability. Designed for compatibility with a wide array of Aruba and HPE hardware, it maintains seamless interoperability and network stability, making it a dependable choice for enterprise deployments.

Key Features :

• 10G EthernetSFP+transceiver for high-speed data transmission.
• 850nm wavelength VCSEL laser transmitter.
• Multimode fiber (MMF) compatible with a duplex LC interface.
• Maximum reach of 300 meters on OM3 fiber cable.

Specifications :

Specification	Description
Model Number	JW091A
Type	10GBase-SRSFP+ Transceiver
Data Rate	Up to 10.3 Gbps
Wavelength	850 nm
Maximum Distance	300 meters (OM3 Multimode Fiber)
Connector Type	Duplex LC
Transmitter Type	VCSEL Laser
Receiver Type	PIN Photodiode with TIA
Supported Protocols	10G Ethernet, MSA compliant
Operating Temperature	0°C to 70°C (32°F to 158°F)
Power Supply	+3.3V Single power supply
Dimensions (L x W x H)	Approx. 2.75 in x 0.53 in x 0.42 in
Weight	Approx. 0.02 kg (20 grams)
Compliance	Class 1 Laser Safety, RoHS, SFF-8472
Digital Diagnostics	Supported (DOM / DDM)
