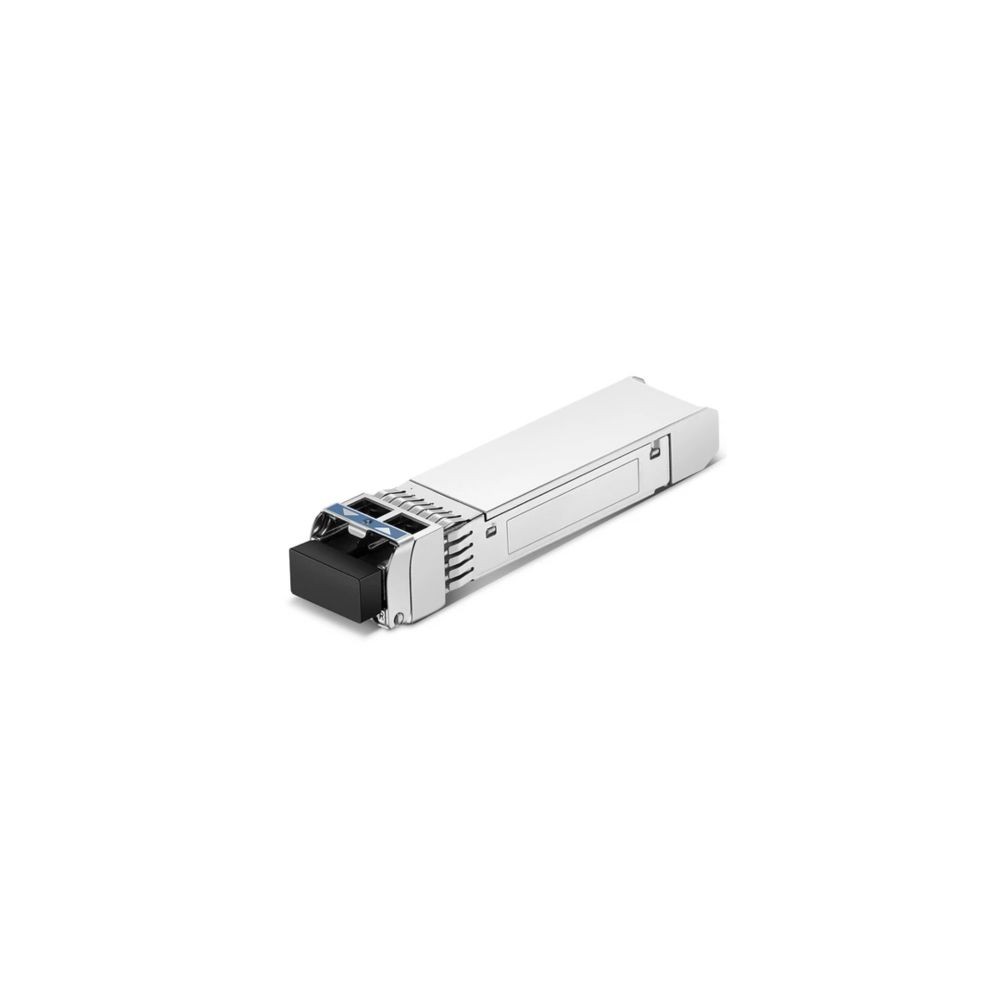

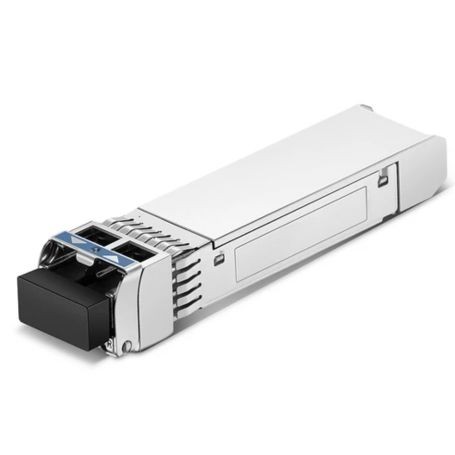

Axiom JL739A-AX Aruba Compatible 10GBASE-BX40-U SFP+ LC 40km Transceiver

Axiom JL739A-AX

Bi-Directional 10GBASE-BX40-U SFP+ Transceiver for Aruba

High-speed 10 Gigabit Ethernet connectivity over a single fiber up to 40 km.

Overview :

The Axiom JL739A-AX is a bi-directional 10GBASE-BX40-U SFP+ transceiver module designed to provide high-speed 10 Gigabit Ethernet connectivity over long distances up to 40 km. Engineered for Aruba-compatible switches and routers, this transceiver enables robust fiber optic links ideal for enterprise and data center network infrastructures. This transceiver uses bi-directional transmission technology, allowing data to be sent and received on a single strand of single-mode fiber but at different wavelengths × 1270 nm for transmission and 1330 nm for reception. This reduces fiber cabling requirements while delivering full 10G performance. It complies with IEEE 802.3ae standards, ensuring interoperability and reliability within 10G Ethernet networks. The SFP+ module is hot-swappable, facilitating easy installation or upgrades without disrupting network operations. Additionally, it supports digital diagnostic monitoring (DDM), providing real-time feedback on operational parameters such as optical output power, temperature, and voltage to maintain maximum network uptime.

Features :

Designed specifically for compatibility with Arubanetwork equipment, the Axiom JL739A-AX serves as a cost-effective alternative to OEM transceiver modules without compromising performance. It is suitable for backbone links, campus networks, and data center interconnects that require stable and extended reach. The integrated DFB laser transmitter and PIN photodiode receiver enhance signal integrity and sensitivity, ensuring data is transmitted reliably over long distances. The module supports a wide operating temperature range suitable for demanding IT environments. Its compatibility with multiple brand platforms and compliance with regulatory standards such as RoHS and IEC highlight its quality and reliability for sustained network performance.

Product Key Features

• Supports 10 Gigabit Ethernet data rate
• Bi-directional 10GBASE-BX40-U single-mode fiber transceiver
• Transmission wavelength: 1270nm TX, 1330nm RX
• Maximum transmission distance of up to 40 kilometers
• Hot-swappable SFP+ form factor with LC connector
• Fully compatible with Aruba OEM networking equipment

---

Reliability & Performance :

Encased in a durable metal housing, the transceiver offers protection against electromagnetic interference and rugged operating conditions. It operates on a low power 3.3V supply for energy-efficient performance. The integrated DFB laser transmitter and PIN photodiode receiver enhance signal integrity and sensitivity, ensuring data is transmitted reliably over long distances. The module supports a wide operating temperature range suitable for demanding IT environments. Its compatibility with multiple brand platforms and compliance with regulatory standards such as RoHS and IEC highlight its quality and reliability for sustained network performance.

Key Features :

• 10 Gigabit Ethernet data rate support
• Bi-directional 10GBASE-BX40-U operation
• Wavelength: 1270nm TX / 1330nm RX
• 40 km maximum transmission distance
• Hot-swappable SFP+ form factor
• Aruba OEM compatibility

Specifications :

Specification	Details
Model Number	JL739A-AX
Product Type	10GBASE-BX40-U SFP+ Transceiver
Data Rate	10 Gb/s (10 Gigabit Ethernet)
Transmission Wavelength	1270 nm (TX) / 1330 nm (RX)
Fiber Type	Single-mode fiber (SMF)
Maximum Distance	40 km
Connector Type	LC simplex fiber connector
Form Factor	SFP+ (Small Form-factor Pluggable Plus)
Power Supply	3.3V
Digital Diagnostics	Supported (DDM)
Operating Temperature	0°C to 70°C
Weight	Approx. 30 grams
Compatibility	Aruba Networks OEM equipment
Compliance	RoHS, IEC
