HPE JG709A X140 40GBASE-ESR 300m 850nm QSFP+ Transceiver View larger

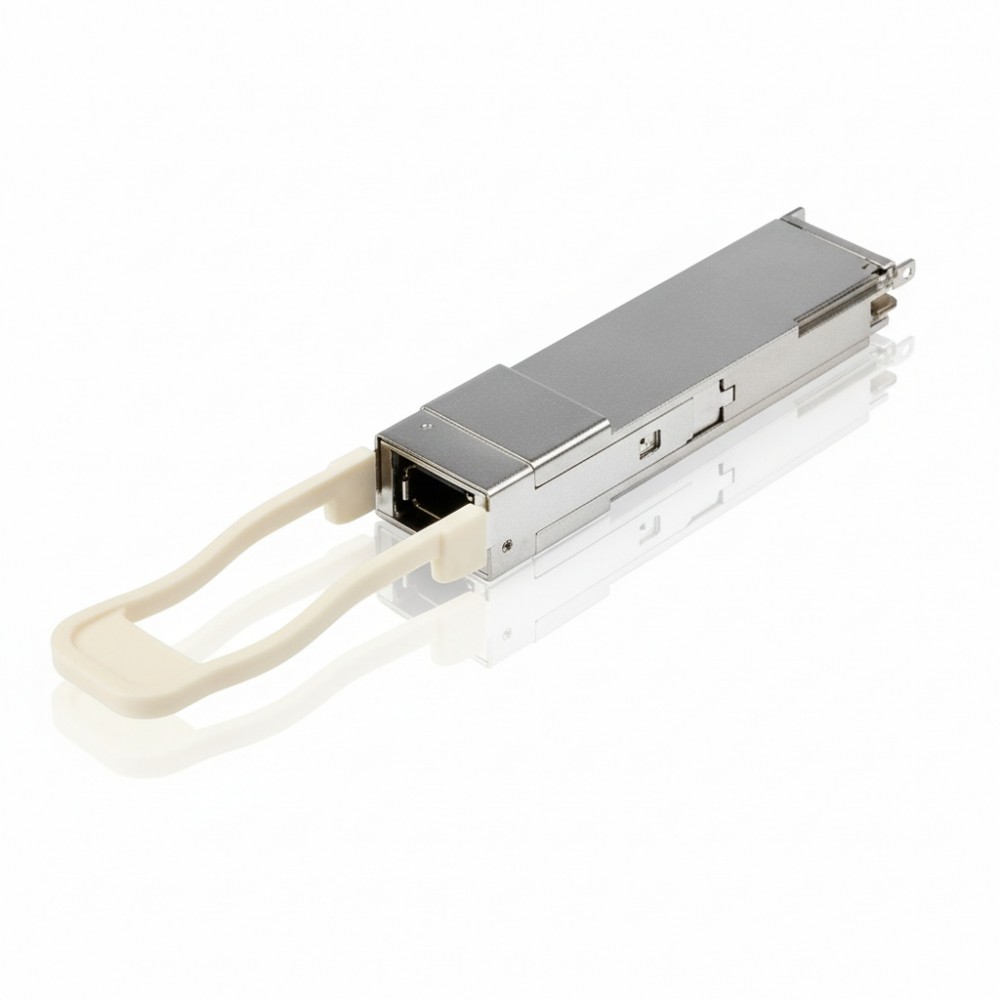

HPE JG709A X140 40GBASE-ESR 300m 850nm QSFP+ Transceiver

New

In Stock

40 Gb/s QSFP+ multimode fiber transceiver

×




$35.00

  • New

Detailed Specifications

HPE JG709A 40 Gb 40GBASE-SR4 QSFP+ MMF Module

Overview

The HPE JG709A is a 40 Gb QSFP+ transceiver module designed for high-speed data-center interconnects over multimode fiber. It supports 40GBASE-SR4 signaling using an 850 nm VCSEL and MPO/MTP connector. It's hot-swappable for flexibility and integrates with compatible HPE switches and routers to provide scalable, low-latency 40 Gb links. This module is used in core or aggregation layers where high bandwidth is required.

Key Features

  • QSFP+ form factor supporting 40 Gb Ethernet

  • 850 nm VCSEL for multimode fiber (MMF)

  • CSR4 / SR4 reach: up to 300 m on OM3, 400 m on OM4

  • MPO-12 (MTP) 12-fibre duplex connector

  • Digital Diagnostics Monitoring (DDM) support

Technical Specifications

SpecificationDetails
BrandHPE
Part NumberJG709A
Product TypeQSFP+ Transceiver Module
Data Rate40 Gb/s (4 × 10 Gb)
Wavelength850 nm
Fiber TypeMultimode (OM3 / OM4)
Max Reach~300 m on OM3, ~400 m on OM4
ConnectorMPO-12 / MTP
Diagnostic MonitoringYes (DDM/DOM)
Power Consumption≈ 1.2 W typical
Operating Temperature0 °C to 70 °C
