Detailed Specifications

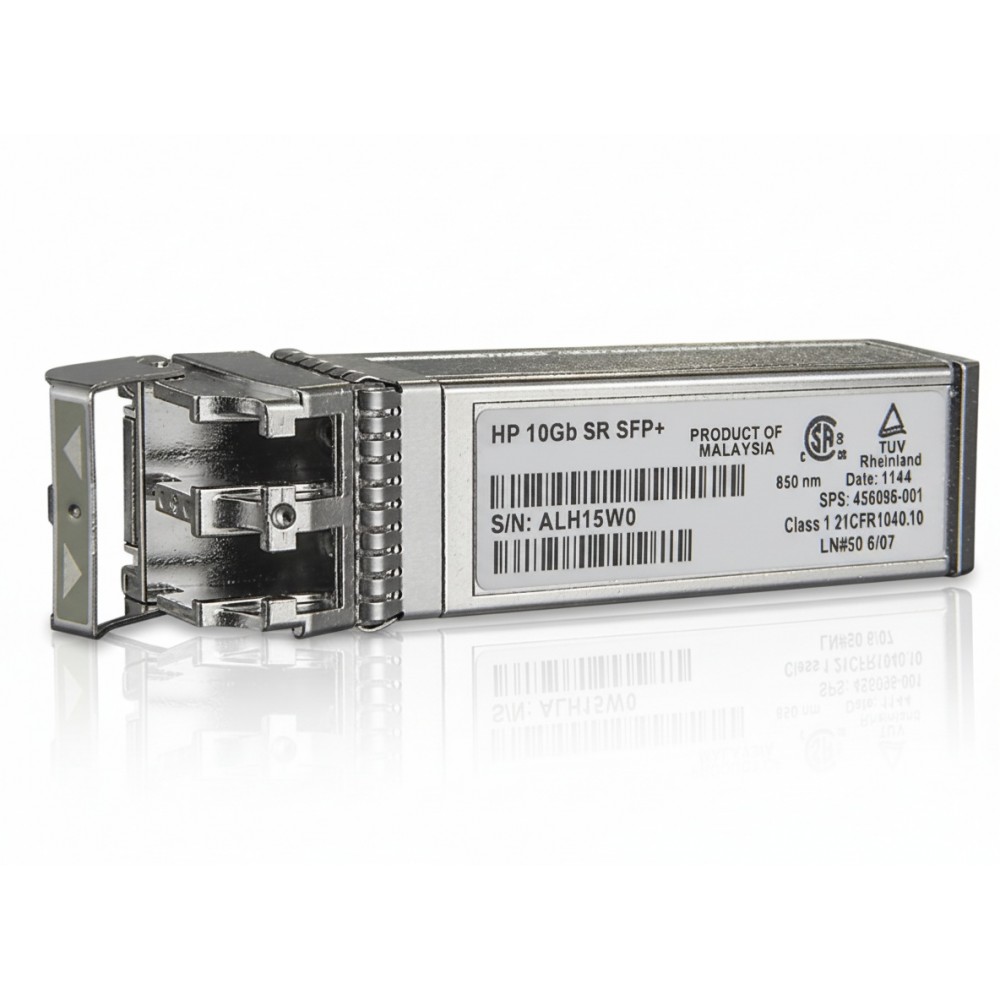

HPE 456096-001 BladeSystem 10Gb SFP+ SR Transceiver
Overview
The HPE 456096-001 is a short-range 10 Gigabit Ethernet SFP+ optical transceiver module designed for HPE BladeSystem c-Class enclosures and compatible network equipment. It supports multimode fiber and provides high-speed connectivity in dense blade environments. The transceiver is hot-swappable, enabling flexible deployment and replacement without downtime. It is widely used in data-center links, server uplinks, and inter-rack connections where low-latency, high-bandwidth fiber links are required.
Key Features
10 Gb/s data rate over multimode fiber
SFP+ form factor, hot-pluggable for flexible deployment
Duplex LC connector for MMF links
SR (Short-Range) 850 nm wavelength for up to 300 m on OM3, 400 m on OM4
Digital Diagnostics (DDM) / DOM support
Technical Specifications
| Specification | Details |
|---|
| Brand | HPE |
| Part Number | 456096-001 |
| Product Type | SFP+ Transceiver |
| Interface | 1 × LC duplex |
| Data Rate | 10 Gbps |
| Wavelength | 850 nm |
| Fiber Type | Multimode (OM3 / OM4) |
| Maximum Distance | 300 m (OM3), 400 m (OM4) |
| Digital Diagnostic | Yes (DDM/DOM) |
| Power Consumption | < 0.8 W typical |
| Compliance | IEEE 802.3ae (10GBase-SR) |
| Operating Temperature | 0 °C to 70 °C |
| Compatibility | BladeSystem c-Class, HPE switches, HPE ProLiant with SFP+ support |
| Spare/Option Relation | Option Part: 455883-B21, Assembly: 455885-001 |
